Raritan Dominion Dual-feed AC power 32-port secure console server
DSXA-32
The Raritan DSXA-32 is a Dual-feed AC power 32-port secure console server which includes an internal modem, 1 console port, and a 19" rack-mount kit.
Dominion DSXA-32 is a secure console server for local and remote access to serially managed servers and other serial devices via SSH/Telnet and Web browser. Dominion SX allows access and control of up to 32 devices including: servers, routers, switches, VPNs and power strips. It can scale across hundreds of users and thousands of devices, highly secure, easy to install and simple to use.
The DSXA-32 provides one point of control to manage users, serial servers and other IT devices including:
- Servers & Headless Servers: Sun Solaris, Sun Cobalt, HP-UX, UNIX, Linux Servers, IBM/AIX Servers, Windows 2003 Servers
- WAN Equipment: ISDN Terminal Adapters, Channel Banks, CSU/DSU, PBS/PABX
- Networking Equipment: Routers, Ethernet Switches, Ethernet Firewalls, Ethernet Load Balancers
- Power Control: All serially controlled power strips and UPS

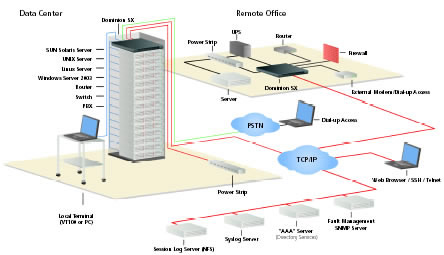

Raritan Dominion Console Server Installation Diagram
Raritan Dominion SX Features and Benefits:
- Intelligent auto-failover on dual-LAN models
- Single appliance - No additional software
- 256KB port buffer
- Access via web browser/SSHv2/Telnet
- Standard built-in modem
- RADIUS, LDAP, LDAP/S, TACACS+ and Microsoft Active Directory support
- Local console port for at the rack access
- Secure appliance - user has no access to operating system
- Local and remote buffering/logging
- Broadest range of supported browsers: IE, Firefox, IE
- SecureChat allows up to 10 users per port to collaborate with 128-bit SSL encryption
- Dynamically resizable VT100 windows with dynamic font-resizing
- Allows the connection of multiple disparate servers running SUN Solaris, HP-UX, AIX, Linux, Windows Server 2003, and UNIX-based servers
- HTML implementation- reduces the time to load the Java applet in a browser implementation to less than one minute
- Full modern CLI- GUI equivalence
- IPMI support- Allows for discovery and management of IPMI enabled servers
- Port keyword monitor and alert
- VT220/320/ANSI Support
- NFS logging
- Single IP Address for administration and target connection
DSX Security & Authentication:
- Fully featured firewall
- Man In The Middle (MITM) attack mitigation
- TCP port addressing for Telnet and SSHv2
- Local user groups
- Flexible strong password support
- Customizable login & consent banner
- Enhanced encryption options
- Support provided for the RADIUS, LDAP, TACACS+, Kerberos V.5 and Active Directory
- Primary and secondary servers are supported
- User defined and installable security certificates
- Target server disconnection option
- Disabling authentication and authorization
- Disable local authentication option
- SSL with RC4 encryption
- User ID and Password
Raritan DSXA-32 Specifications:
| Mechanical | |
| Height | 1.75 in. (44 mm.) |
| Width | 17.25 in. (438 mm.) |
| Depth | 11.34 in. (288 mm.) |
| Form factor | 1U, rack mountable (mounting brackets included) |
| Weight | 10 lbs. (4.53 kg.) |
| Environmental | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Humidity | 20% - 85% RH non-condensing |
| Altitude | Operates properly at any altitude between 0 to 10,000 feet |
| Power | 110/220V auto-switching: 50-60 Hz; 36-72V DC |
| Remote Connection | |
| Network | 10/100 Ethernet (RJ45) port - one or two |
| Protocols | TCP/IP, PPP, PAP, HTTP, HTTPS, SSL, SSH, TACACS+, LDAP(S), RADIUS, SNMP |
| Modem Connectivity | Integrated 56K V.90 (RJ11 port) |
| Standards | |
| Approved Agency | CE, FCC Part 15 Class A, US and Canadian UL, VCCI-A |
UPC 785813604095
EAN 0785813604095
