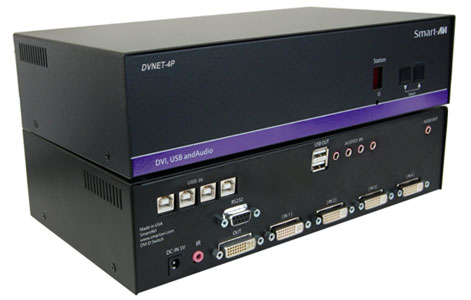

4x1 DVI-D/USB2.0/Audio KVM Switch

DVN-4PS

$399.00$310.91
Save $88.09
FREE Shipping on orders over $100
smartavi_madeinusa

The DVNET-4P is a cross-platform DVI-D KVM switch capable of sharing one DVI-D Monitor between four computers, PC or Mac. View four computers equipped with DVI-D on a single screen, saving money and desktop space.

In the medical or industrial field, where it may not be practical (or safe) to have one or more CPUs in the general vicinity, SmartAVI's DVI Switch Series is the perfect solution, allowing for either PC or Mac signals to be extended from computer to monitor (20 feet from computer to DVI Switch, and then 20 feet from DVI Switch to remote monitor/display point).

Another practical use for one of SmartAVI's DVI Switch would be for media recording studios, where soundproofing and space issues come into play. Using a DVI Switch eliminates the inherent "hum" of a powered CPU and gives you the freedom of using your keyboard, mouse and monitor without having to find room for the computer itself in the same workspace.

Applications

  • Home Theater Integration
  • Digital Signage Deployment
  • Information Kiosks/Displays
  • Film/Recording Studios

product

Features

  • Supports Mac, PC, Linux and Sun DVI
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • Supports all USB 2.0 Devices (Flash Drives, Printers, Cameras, Scanners, etc.)
  • Supports USB 2.0 keyboard and mouse
  • Balanced stereo audio output
  • Front panel tactile switch with LED indicator
  • Full IR and RS-232 control

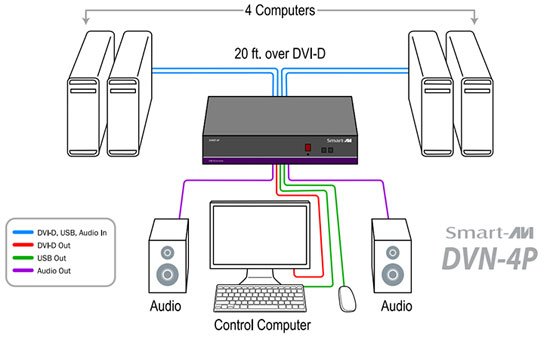

diagram

SmartAVI DVN-4P Specifications

Mechanical
Height 1.87 in. (3.81 cm)
Width 10.5 in. (21.84 cm.)
Depth 6 in. (13.71 cm.)
Weight6 lbs.
FormatDVI-D Single Line
Maximum Pixel Clock165 MHz
Input Interface (TX)(4) DVI-D 29-pin (female)
Output Interface (RX) (1) DVI-D 29-pin (female)
ResolutionUp to 1920x1200 @60Hz
Input/Output Cable LengthUp to 20 feet
Audio Frequency Response20 Hz to 20 kHz
Audio Impedance600 Ohm
PowerExternal 100-240 VAC/5VDC2A @10W
UPC / EAN Barcode icon
UPC 813280017275
EAN 0813280017275
