SmartAVI 8X1 DVI-D, USB2.0, Audio switch

DVN-8PS

$799.00$622.60
Save $176.40
FREE Shipping on orders over $100

SmartAVI has changed the part number from DVNET-8P to DVN-8PS.

This unit is a 8X1 DVI-D, USB2.0, Audio switch Includes: [DVN-8P and (PS5VD3A)]. The DVN-8PS will allow one to view up to 8 individual computers equipped with DVI-D on a single screen. With the DVN-8PS cross-platform switch, you can easily share DVI-D Monitor, Stereo Audio, USB 2.0 Devices and any USB Keyboard and Mouse Seamlessly Between 8 Macs or PCs.

SmartAVI's DVI Switch Series is the perfect solution, allowing for either PC or Mac signals to be extended from computer to monitor (20 feet from computer to DVI Switch, and then 20 feet from DVI Switch to remote monitor/display point).

Another practical use for one of our DVI Switch would be for media recording studios, where soundproofing and space issues come into play. Using a DVI Switch eliminates the inherent 'hum' of a powered CPU and gives you the freedom of using your keyboard, mouse and monitor without having to find room for the computer itself in the same workspace.

Home Theater Integration
Digital Signage Deployment
Industrial Environment
Information Kiosks/Displays
Theme Park/Resort Design
Medical Equipment
Film/Recording Studio

SmartAVI DVN-8PS Features:

  • Supports PC and Mac DVI-D Signals
  • Resolutions up to 1920x120
  • Zero Pixel Loss
  • Maintains Highest Quality DVI Single Link Resolution
  • Supports Windows, Mac, Linux and Sun Platforms
  • DVI Output Regenerates TMDS Digital Video
  • Output Capable of Driving Cable up to 20 Feet
  • Full DVI, Audio, and Mic Switching
  • USB output regenerates with USB HUB
  • Front Panel Switch for Computer Selection
  • Select Computer via RS-232 Command
  • Display LED for Active Station
  • External Power Supply
  • Reduces Space Requirements
  • Provides Noiseless Operation at Remote Stations
  • Allows Placement of CPUs Away From Harsh Work Environments
  • USB 1 and 2 Compliant
  • Driver-Free, Plug-and-Play Hardware

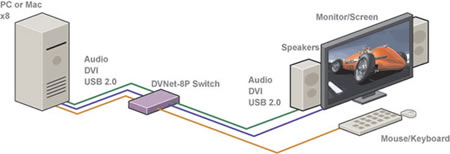

SmartAVI DVN-8PS Application Diagram

SmartAVI DVN-8PS Application Diagram

SmartAVI DVN-8PS Specifications:

Mechanical
Width 11.12 in. (28.2 cm.)
Height 2.63 in. (6.7 cm.)
Depth 6.0 in. (15.2 cm.)
Weight 2 lbs. (0.9 kg.)
Power
External 100-240 VAC/5 VDC 6A
Video
DVI-D, DVI-single link 1920x1200 at 60Hz
Bandwidth 1.65G
Connectors DVI-D Female x 9
USB 1.0, 1.1, and 2.0
Internal 2.0 Hub
Connectors Inputs: 8 USB type B
Output: 2 USB type A
Audio
Frequency Response 20Hz to 20Khz
Impedance 600 ohm
Nominal Level 0-1.0V
Common Mode Rejection 60dB
Connectors 3.5mm Audio Jackx9
Control Front Panel with Seven Segment and 2 tact switch
RS232 Via Software, 9600bps
IR, Via remote control with IR-eye type 3
Power Supply
External switching: 100-240 VAC/5 VDC 3A
Power Consumption 15W
Temperature Operating: 32 to 131 F (0 to 55 C)
Storage: -4 to 185F (-20 to 85C)
Humidity: up to 95%
*NO KEYBOARD OR MOUSE EMULATION*
UPC / EAN Barcode icon
UPC 813280021012
EAN 0813280021012
Question: The specs mention an IR remote. Do you have this available, and if so, how much is it?
Answer: Thank you for your inquiry. A remote sensor is available, but there is some discrepancy as to which one is correct. We will need to confirm the part number for pricing.

Question: The specs mention controlling the unit using the RS-232 port via software. Do you have this software available, and if so, how much is it? If you don't have the software, do you have the specs for what commands are expected on this port?
Answer: Thank you for your inquiry. RS-232 control can be accomplished via HyperTerminal, so no additional software is required. From the manual:

Use Hyperterminal to connect to the DVN-8P, making sure to use the standard communication mode of 9600bps, 8, N, 1. To switch ports, use the standard "//M" command prompt. To select the "IN 1" port, send "//M01 [ENTER]". To select the "IN 2" port, send "//M02 [ENTER]" etc.
