SmartAVI DVI Router 4:4


Save $198.48
FREE Shipping on orders over $100

The SmartAVI DVR4x4 is a 4x4 DVI Router which displays content from any four computers on any four screens independently.

SmartAVI DVR4x4 Features & Benefits:

  • Increases your productivity by providing you with access to four computers from four workstations.
  • 4x4 non-blocking, single-link DVI matrix switch.
  • Supports DVI operation at the maximum TMDS rate of 2 x 1.65 Gb/s.
  • Supports resolutions up to 1080p, 2K, and 1920 x 1200.
  • Simultaneous 4x4 analog matrix switching at 380 MHz bandwidth.
  • DVI transmission over 190 feet at the highest TMDS rate of 1.65 Gb/s.
  • Control from either front panel or RS232.
  • Available IR Remote.

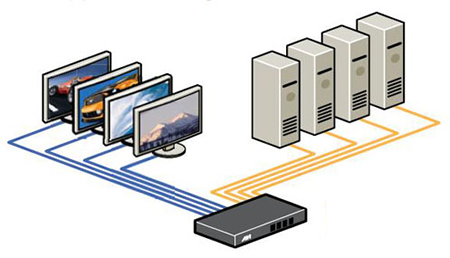

SmartAVI DVR4x4 Application Diagram
SmartAVI Router Diagram


  • Access - Enables easy access to multiple servers in various locations. Facilitates data sharing among departments.
  • Security - Safeguards the servers by storing them in a secure and climate controlled environment while still providing access from the production floor.
  • Productivity - Increases productivity by facilitating testing and performance evaluation of software and equipment, on multiple servers, from a single keyboard mouse and monitor station.
  • Multimedia Presentations - Can be used in multimedia presentations, where the information is transmitted from various computers.

SmartAVI DVR4x4 Specifications:

Height 1.75 in. (4.45 cm.)
Width 12 in. (30 cm.)
Depth 6.5 in. (16.5 cm.)
Weight 4.05 lbs. (1.84 kg.)
Power Supply 5VDC-2A
Serial Controls RS232, DB9 female connector
Video Amplifier Bandwidth 165MHz
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Single Link Range 1080p/1920 x 1200
DVI Connector DVI-I 29 pin female
UPC / EAN Barcode icon
UPC 813280021036
EAN 0813280021036
