SmartAVI DVI-D 8x8 Router

DVR8X8S

$1,699.00$1,323.90
Save $375.10
FREE Shipping on orders over $100

The SmartAVI DVR8X8 is a  non-blocking digital video matrix switch that provides an easy and dynamic approach to creating up to 8 computer stations, each with the ability of accessing any one of the CPUs or displays instantly either directly or remotely, using RS-232 commands, Ethernet and/or IR input. Our DVI router is controlled by Windows-based software that is easy to understand and simple to use - a cornerstone of all SmartAVI products.

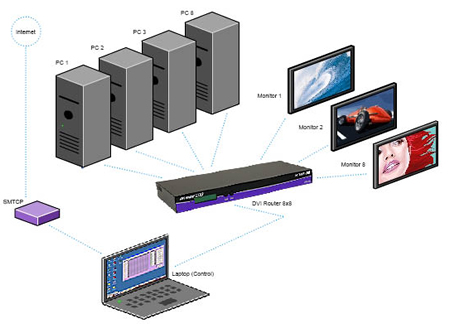

SmartAVI DVR8X8 Matrix Switch Application Diagram

SmartAVI DVR8X8 Matrix Switch Application Diagram



SmartAVI DVR8X8 Features:

  • Increases productivity by providing access to up to 8 computers from 8 workstations.
  • 8 x 8 non-blocking, single-link DVI-D matrix switch
  • Adjustable output pre-emphasis and drive level
  • Supports DVI operation at the maximum rate of 2 x 1.65 Gbps
  • Supports resolutions up to 1080p, 2k and 1920 x 1200
  • Control from either front panel or RS-232
  • Available IR remote
  • Ethernet control available
  • Easy-to-use Windows based software


SmartAVI DVR8X8 Specifications:

Mechanical
Height 1.70in (4.3cm)
Width  17in (43.2cm)
Depth  6.75in (17.1cm)
Weight  8.25lbs
Power Power Supply 5VDC-5A
Video Video Amplifier Bandwidth 165 MHz
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p(TTL)
Single-link Range 1080p/1920 x 1200
DVI Connector DVI-D 29-pin female
Control Serial Controls Optional IR control

UPC / EAN Barcode icon
UPC 813280021050
EAN 0813280021050
