Smart-AVI DVI-D CAT6 Extender with Super Reclocking



Replaced by: SmartAVI LDX-S
Alternative options: Contact Us

The DVX-200-Pro is the perfect solution for extending a DVI-D display to a remote location up to 250 feet away. The DVX-200-Pro features pixel accurate signal reclocking which regenerates the input signal into a perfectly sharp and clear output signal. It is fully plug and play with dynamic DDC learning.

Smart-AVI DVX200 Features and Benefits:

  • Supports DVI-D single-link sources
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Dedicated switch to learn any DDC
  • Full reclocking for the receiver regenerates digital signal producing top signal quality
  • Extends up to 250ft (275ft with high quality CAT6 STP)
  • Supports Mac, PC, and Linux DVI
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • Compatible with all major KVM switches
  • Data recovery for digital video
  • Plug-and-play

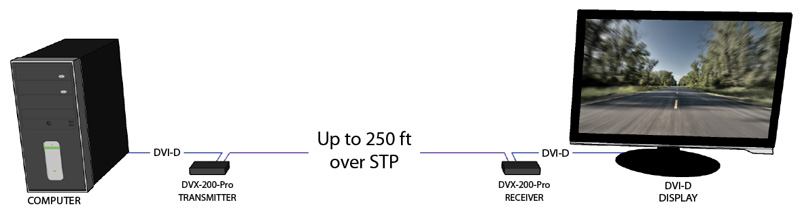

Smart-AVI DVX-200-Pro DVI-D Extender Diagram
Smart-AVI DVI Extender Diagram
(DVX-200-ProS depicted here)

Smart-AVI DVX-200-Pro Package Contents

  • DVX-TX200-Pro Transmitter
  • DVX-RX200-Pro Receiver
  • 2 CCDVIMM06 6ft. DVI Male to Male Cable
  • 2 PS5VD2A Power Supplies

Smart-AVI DVX-200-Pro Applications

  • Call Centers(co-locate user's computers)
  • Industrial (protection against pollution)
  • Information Terminals & Kiosks.
  • Airports (air traffic control, passenger information systems).
  • Medical - using computer tomographs generates strong magnetic fields, which make it impossible to use monitors.

Smart-AVI DVX-200-Pro Specifications:

Height 1 in. (2.54 cm)
Width 2.875 in. (7.30 mm.)
Depth  3.375 in. (8.57 mm.)
Height 1 in. (2.54 cm.)
Width 3.6875 in. (9.37 cm.)
Depth  3 in. (7.62 cm.)
Weight0.5 lbs. (0.23 kg.)
Power Supply100-240 VAC/5VDC2A @ 10W
Input InterfaceDVI-D (Single Link)
ResolutionMaximum 1920 x 1200 @ 60 Hz
Operating Temperature32-131 °F (0-55 °C)
Storage Temperature-4 - 185 °F (-20 - 85 °C)
HumidityUp to 95%
Video InterfaceDVI-D 29-pin
UPC / EAN Barcode icon
UPC 813280017381
EAN 0813280017381
