The SmartAVI DVX-4P can extend up to four DVI-D, USB 1.1, stereo audio and RS-232 signals up to 275 feet using CAT6 cables, while retaining perfectly clear, crisp image and audio quality (image resolution up to 1900 x 1200 at 60Hz).

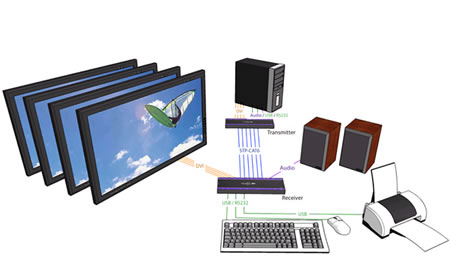

SmartAVI DVX-4P Extender System Application Diagram
SmartAVI DVX-4P Features:
Top image quality at all resolutions
Video resolutions up to 1900 x 1200 at 60Hz (1280 x 1024 at 75Hz) up to 275 feet
Internal DCC cables
Distance: 275 feet with a CAT6 STP cable
Compatible with all operating systems
Compatible with all major KVM switches
Rack mount options (19)
Supports up to 4 DVI-D sources
Supports USB 1.1 keyboard and mouse
Uses easy-to-install, inexpensive pair cable
Data recovery for digital video
Fully-compliant with USB 1.1 specifications
Supports 1.5 and 12Mbps data rates
External power adaptors for transmitter and receiver units
Fully-transparent (does not use any emulation)
SmartAVI DVX-4P Specifications:
|Height||1.70 in. (4.3 cm)|
|Width||3.5 in. (8.9 cm)|
|Depth||17 in. (43.2 cm)|
|Resolution||1920x1200 at 60Hz, resolution up to 1280x1024 min.|
|Input Interface||DVI-D (Single-Link)|
|Output Interface||DVI-D (Single-Link)|
|Video Type||480p, 720p, 1080i|
|Audio||Stereo audio |
bandwidth 15MHz, 0dB
impedance 10k Ohm
Answer: Thank you for your inquiry. Part number DVX-4PS is the complete system to extend up to four DVI-D, USB, Audio and RS-232 signals. Includes: 1 x DVX-4P-TX (transmitter), 1 x DVX-4P-RX (receiver) and 2 x CCPWR06 (power supplies).
Question: This extender will allow me to replicate a single quad workstation monitor setup? Do I see the movement & action on both sets of quad monitors at the same time?
Answer: Thank you for your inquiry,
The SmartAVI DVX-4P takes 4 separate DVI video signals as well as USB, Serial and audio signals, and extends them up to 275 feet away (using 4x CAT6 cables). The DVX-4P would not act as a video splitter / replicator. For an illustration of DVX-4P the application, please refer to the diagram below.
If you would like to replicate a video source, may be interested in our DVI Video Splitter and DVI KVM Splitter categories. You could use, for example, one Aten VS174 4-Port DVI Video Splitter to replicate a single DVI video source to the four DVI inputs on the DVX-4P.
