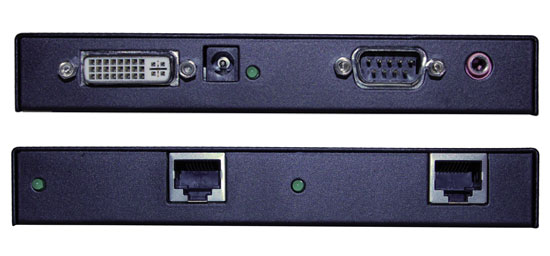

DVI-D/Audio/RS-232 CAT6 STP Transmitter

DVX-TXPROS

$250.00

Discontinued
For upgrade or replacement options: Contact Us

smartavi_madeinusa

The DVXPRO extends the distance between any computer supporting single-link DVI-D and a monitor or projector with a compatible DVI input.
*Transmitter Only.

transmitter

Features

  • Top Image Quality at all Resolutions.
  • Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz)on all distances up to the maximum distance.
  • User selectable: DCC-Information used from the remotely located Monitor, from the locally located Monitor or from an internal DDC Table.
  • Basic device to remotely locate Touch Screen and Sound.
  • Full duplex RS232 up to 150kbps.
  • Maximum Screen Resolution on all distances: 250 ft w/ STP Cat5e.
  • Compatible with all operating systems.
  • Compatible with all major Touch Screen and Tablet.
  • Rack Mount options 19

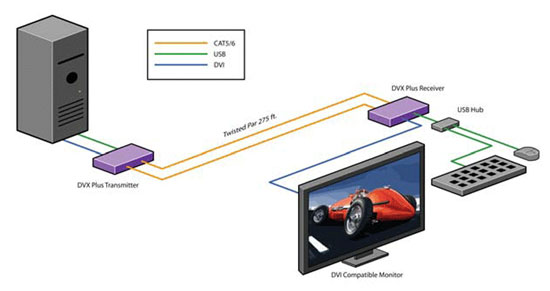

diagram

SmartAVI DVX-RXPRO Transmitter Specifications

Mechanical
Height 0.82 in. (2.08 cm)
Width 6.25 in. (15.87 cm.)
Depth6.12 in. (15.54 cm.)
Weight0.40 lbs.
Video DVI-D Female
Resolution1920x1200 @ 60 Hz
Audio Bandwidth15 MHz, 0db
Audio Impedance100 ohm
Power Supply5VDC
UPC / EAN Barcode icon
UPC 813280015738
EAN 0813280015738
