SmartAVI Point to Point Singlemode PS2 KVM Fiber Extender

DVX-2500

Discontinued
Replaced by: SmartAVI FDX-2500
Alternative options: Contact Us

The SmartAVI DVX2500 extends the distance between any computer supporting DVI-D and monitors or projectors up to 1200ft. with fiber optics.  The DVX2500 consists of a Transmitter unit and a Receiver unit. These two devices enable long-distance, loss less transmission of DVI video signals between a digital video source and a digital display device. This DVI extender is equipped with DVI-digital (Digital Visual Interface) connectors for a single-link and optional keyboard and mouse. The DVX2500 receiver is small enough to be attached near a projector. With the DVX2500, the maximum distance between the source and digital display is 330 feet (100 m) using cat5 and up to 1200ft using fiber optic.  The DVX2500 supports traditional analog VGA as well as digital DVI. All combinations of DVI and VGA (graphics cards and monitors) are supported allowing equipment to be mixed. You could use DVX2500 today to extend your existing SVGA equipment.

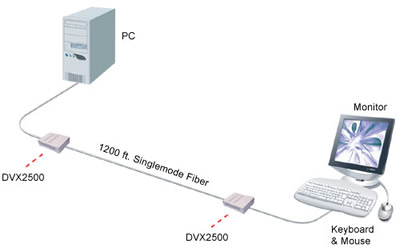

SmartAVI DVI Extender Diagram
SmartAVI DVI Extender Diagram

SmartAVI DVX2500 Features:

  • Perfect Image Quality at all Resolutions
  • Supports both VGA and the latest DVI video interfaces (future proof your investment) \
  • Supports Mixed DVI and VGA operation
  • Video Resolutions up to 1600 x 1200 @ 60Hz using CAT5 or Fiber Optic Cable
  • Local Console Option (Dual Access)
  • Transparent to USB 1.1
  • No length restrictions for particular video resolutions
  • Fiber Optic Extension uses only TWO Fibers
  • Transmission length:
    • 100 m with regular CAT5 cable
    • (200 m with repeater)
    • 200 m with 62,5/125 Multi-mode Fiber Cable
    • 400 m with 50/125 Multi-mode Fiber Cable
    • 10 km with 9/125 Single-mode Fiber Cable
  • Compatible with all operating systems
  • Compatible with all major KVM Switches

SmartAVI DVX2500 Specifications:

Mechanical
Height 1.7 in. (43 mm.)
Width 5.8 in. (148 mm.)
Depth6.7 in. (170 mm.)
Power SupplyUniversal Switchmode PSU (90-240V Input)
Video InterfaceSXGA, SUN, DVI
Resolution1600 x 1200 @ 60 Hz
All lower resolutions operate up to 75 Hz vertical refresh
Keyboard/Mouse OptionsPS/2 Microsoft Compatible
Interconnection OptionsMulti-mode 50/125 50/125µ oder 62,5/125µ, SC-Connector
Single-mode 9/125µ, SC-connector, Cat5/5e/6
Maximum Distances100 m (200 m) Cat5, 200 m (62, 5µ), 400 m (50µ), 10km (9µ)
UpgradeableOnboard Flash
KVM AccessSingle/Dual KVM options
