Rose UltraMatrix E-Series (EE4-4X16U/E2)
The UltraMatrix E-Series (EE4-4X16U/E2) represents the latest in KVM matrix switch technology, at an affordable price. The E-Series allows you to connect up to 256 users to as many as 1,000 computers. The UltraMatrix E-Series (EE4-4X16U/E2) is available in several sizes: 2x4, 2x8, 2x16, 4x4, 4x8, 4x16, 1x8, and 1x16 and either PC or multi- platform.  The advanced distributed design of the UltraMatrix (EE4-4X16U/E2) uses networking communication technology to reduce cost, eliminate single points of failure, and increase reliability. Use the Advanced Visual Interface (AVI) to configure, name, and select computers, and show connections. Units easily connect together with bus cables to make a seamless and truly scalable KVM solution.

Rose UltraMatrix E-Series (EE4-4X16U/E2) Features & Benefits:

  • Powerful and expandable, economical
  • Modular design makes units simple to install, expand, and maintain
  • Security system with user ID, password, and profile prevents unauthorized configuration and access
  • Uses UltraCable™ for superior cable management with lengths of up to 100 feet
  • Video resolution up to 1600 x 1280
  • On-screen menu informs you of connection status with user friendly messages
  • Multi-lingual Menu (English, French, German, Spanish, Italian, Portuguese)
  • Status screen shows inter-box communication, connections, computer power, and other information
  • Pre-configuration feature allows installation without powering down servers
  • Connect more users by adding local KVM stations at each switch
  • Flash memory with free lifetime upgrade of firmware keeps compatibility with latest devices and features with latest devices and features available

Rose UltraMatrix E-Series (EE4-4X16U/E2)

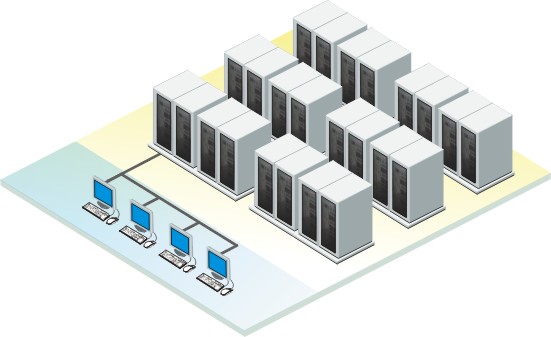

Rose UltraMatrix E-Series (EE4-4X16U/E2) Function Diagram

Rose UltraMatrix E-Series (EE4-4X16U/E2) Specifications:


4 8 port: 16.7"W x 4.85"D x 1.75"H (1U)
42.4 W x 12.3 D x 4.4 H (cm)
16-port: 16.7" W x 4.85" D x 3.50" H (2U)
42.4 W x 12.3 D x 8.9 H (cm)

Weight 4/8-port: 4 lbs (1.8 kg) 16-port: 8 lbs (3.6 kg)
Environmental 0°- 45° C, 5%-80% non-condensing relative
Power Auto Switching, 90 - 240 VAC, 45 watts

Power: IEC 320 standard receptacle
CPU/KVM connector: DB25 female
Expansion: DB15 male/female
RS232: RJ12 (6 pin)


Video bandwidth 1x4 / 1x8 / 2x8: 250 MHz
1x16 / 2x16 / 4x8 / 4x16: 100 MHz
Video sync Accepts HV, composite, and sync-on-green
Chassis Electro galvanized steel, black powder coated
Controls Lighted Power On / Off Switch
Indicators LEDs: Power, 4-16 select, 4-16 CPU power

Approved Agency UL, cUL, TUV, CE
