Avocent Emerge Media Streamer - Receiver

EMS1000R-001

$345.00$268.33
Save $76.67

Discontinued
Recommended replacement: Cyberview CV-S101
Alternative options: Contact Us

The Avocent Emerge EMS1000R-001 is a Media Streamer Point-to-Multipoint CAT5 Receiver. It extends stereo audio and high resolution analog video from a single point to multiple destinations up to 600 feet over CAT 5 cabling, or from point to point up to 600 feet over CAT 5 cabling.

The Avocent Emerge EMS1000T/R and EMS1000P media streamers require no special software or operating system support, just attach the media streamer hardware and this indoor A/V distribution solution is fully functional. The Emerge EMS1000T/R media streamer solution consists of a transmitter and up to 16 receivers. The transmitter is located at the source of the multimedia content. At the destination points, the receivers connect directly into the output devices such as plasma screens, projectors or monitors. The Emerge EMS1000T/R media streamer design guarantees highly reliable transport of high-quality audio and video. With support for full-screen, full-motion video and high-fidelity stereo audio, high-impact content is delivered to the right place at the right time.

With its portability and small footprint, it can be quickly plugged in to create a multimedia A/V distribution system. The Emerge EMS1000T/R media streamer is perfect for situations that require easy set up and high quality output.

Reliable, Cost-Efficient Digital Signage
As an indoor only solution, the design of the Emerge EMS1000T/R and EMS1000P media streamers guarantee highly reliable, high quality audio and video for digital signage installations. With support for full screen, full motion video along with high fidelity stereo audio, high impact digital signage content is securely delivered to the right place at the right time. The Emerge EMS1000T/R and EMS1000P media streamers take advantage of the distance and reliability characteristics inherent with CAT 5 cabling and gets the message from source to destination up to 600 feet apart.

Sensible, Low Cost A/V Extension & Connectivity
In courtrooms, classrooms or boardrooms, the Emerge EMS1000T/R and EMS1000P media streamers fit right in. With its portability and small footprint, it can be quickly plugged in to create a multimedia A/V distribution system. Perfect for situations that require immediate A/V extension with easy set up and high quality output.


 Avocent Emerge EMS1000R-001 Features:

  • Plug-and-Play Solution - There is no special software to install
  • High Quality, Highly Reliable - The media streamer provides audio and video connectivity at a low price without loss of quality and reliability.
  • High Fidelity - Digital stereo audio gives high intelligibility.
  • Streaming Video Over CAT 5 - CAT 5 cabling provides cost-effective wiring.
  • Audio/Video Extension - Supports up to WXGA (1600 x 1200) resolution at 600 feet over CAT 5 cabling.
  • Picture Quality - Includes independent sharpness and brightness controls to optimize picture quality.
  • Stutter-Free Playback - Full-screen, full-motion video support provides stutter-free playback.
  • Spike-Suppression - Advanced, spike-suppression circuits protect your investment.
  • Daisy Chain Extension Port - Extension port on each receiver reduces costly cable home runs.
  • DDC Support - Automatically identifies the maximum display resolution.

Note: The EMS1000P and EMS1000T/R wired media streamers are for indoor use only.

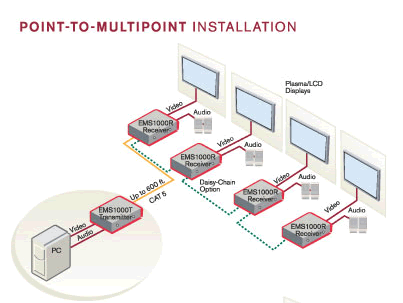

Avocent Emerge EMS1000R-001 Application Diagram

Avocent Emerge EMS1000R-001 Application Diagram

Avocent Emerge EMS1000R-001 Specifications:

Mechanical
Height 1.04 in. (25 mm.)
Width 3.85 in. (98 mm.)
Depth 3.74 in. (95 mm.)
Weight 2.5 lbs. (1.2 kg.)
Environmental
Operating Temperature 32°F (0°C) to 104°F (40°C)
Humidity 5% to 60% (Non-condensing)
Power 5.3 VDC +/-5% @ 1A from supplied 100-240 VAC 50/60 Hz switching power supply
EMS1000T-001 = 490mA
EMS1000R-001= 590mA
Transmitter Inputs
Computer Video Signals Mini D-Sub 15 pin socket connector. Up to 60 Hz Vertical Refresh.
Video Signals VGA (640 x 480), XGA (1024 x 768), WXGA (1366 x 768), UXGA (1600 x 1200)
Audio Stereo mini jack
Receiver Outputs
Computer Video Signals Mini D-Sub 15 pin socket connector. Up to 60 Hz Vertical Refresh.
Video Signals VGA (640 x 480), XGA (1024 x 768), WXGA (1366 x 768), UXGA (1600 x 1200)
Audio Stereo mini jack
Power Connector 2.1mm ID, 5.5mm OD, 9.5mm length barrel connector, tip positive
Performance Point to Multipoint
Warranty 2 Years
Question: Where can i get a power adapter?
Answer: Thank you for your inquiry,

The Avocent unit EMS1000R-001 and its replacement power have are End of Life as of October of 2013 without any left-over stock.

For a similar replacement, you may be interested in the Adder ALAV208T 8-Way VGA Extender / splitter solution.

Please let us know if there is anything else we can help you with!
