Gefen 2x Dual-Link DVI & USB KVM Extender Over CAT6a



Recommended replacement: Adder ALIF2020P
Alternative options: Contact Us

The Gefen EXT-2DVI-DLKVM-CAT6 2x Dual Link DVIKVM Extender over CAT-6a is a cost-effective solution that allows the extension of keyboard, video and mouse to a remote workstation up to 200 feet (60 meters away). The EXT-2DVI-DLKVM-CAT6 is particularly useful because it is able to extend dual link resolutions beyond the limitations of standard DVI cables. Dual-link resolutions up to 3840 x 2400 are supported using two CAT-6a cables for each display. Single-link resolutions up to 1920 x 1200 can be achieved using one CAT-5e or CAT-6a cable per display. HDCP is supported in both single link and dual link modes. USB 2.0 data rates up to 480 Mbps are supported in addition to backward-compatibility with USB 1.1. The Receiver unit allows the connections of up to four USB devices, providing access to printers, scanners, cameras, external storage media, digital signage, and automated control systems.

How It Works:

Place the EXT-2DVI-DLKVM-CAT6 2x Dual link DVIKVM Extender over CAT-6a Sender unit next to the DVI sources. Use the included DVI cables to connect the DVI sources to the Sender unit. Use the supplied USB cable to connect the USB host (source) device to the USB port on the Sender unit. Connect the Receiver unit to two dual-link DVI displays using DVI cables. Connect up to four USB devices to the Receiver unit. Use five CAT-6a cables, each up to 200 feet (60 meters), to connect the Sender to the Receiver unit. Connect the included locking power supplies to the Sender and Receiver units and plug both power cords into available electrical outlets.

  • This product is used for dual display extended desktop applications.
  • The maximum extension distance for dual-link or single-link resolutions, when using CAT-5e cabling, is 150 feet (45 meters).

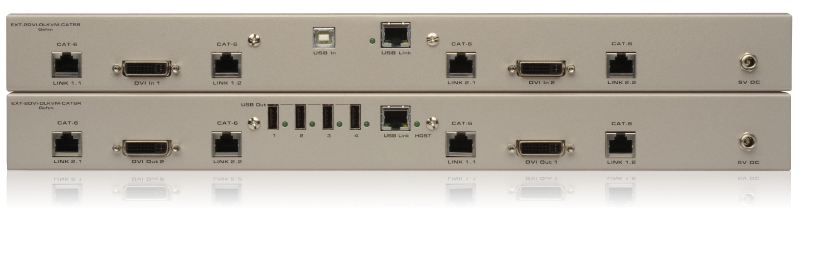

  • Gefen EXT-2DVI-DLKVM-CAT6 Back View
    Gefen EXT-2DVI-DLKVM-CAT6 Rear View

    Gefen EXT-2DVI-DLKVM-CAT6 Features and Benefits:

    • Extends two dual-link DVI sources with USB 2.0 up to 200 feet (60 meters) using CAT-6a cables
    • Supports dual-link resolutions up to 3840 x 2400
    • HDCP-compliant
    • Supports 480 Mbps using USB 2.0
    • Backward-compatible with USB 1.1 devices
    • Supports DDWG standard for DVI-compliant monitors
    • Supports any Operating System (OS)
    • EDID management for rapid intergration of source and display devices
    • EQ adjustment trim pots on Receiver unit to equalize the signal to compensate for cable length and the quality/skew variances found among different CAT-5e/ CAT-6a cables
    • Rack-mountable
    • Plug and Play

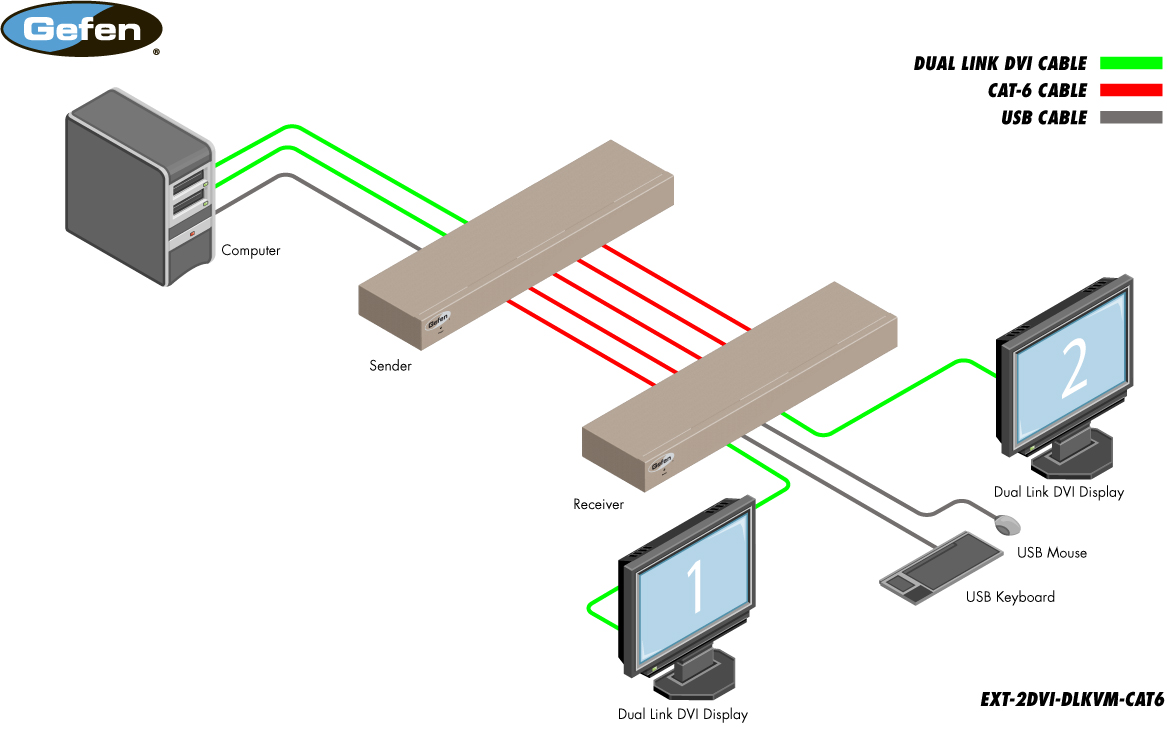

    Gefen EXT-2DVI-DLKVM-CAT6 Diagram
    Gefen EXT-2DVI-DLKVM-CAT6 Dual Link DVI and USB Extender Diagram

    Gefen EXT-2DVI-DLKVM-CAT6 Package Contents:

    • 1 EXT-2DVI-DLKVM-CAT6 DVI KVM Extender Sender Unit
    • 1 EXT-2DVI-DLKVM-CAT6 DVI KVM Extender Receiver Unit
    • 2 6 ft. Dual-Link DVI Cable (M-M)
    • 1 6 ft. USB Cable (A-B)
    • 2 5V DC Locking Power Supplies
    • 1 AC Power Cord
    • 2 Sets of Rack Ears
    • 1 Quick-Start Guide

    Gefen EXT-2DVI-DLKVM-CAT6 Specifications:

    Width 17.5 in. (445 mm.)
    Height2.5 in. (64 mm.)
    Depth5 in. (127 mm.)
    Rack Space1U (rack ears included)
    Ship Weight9.5 lbs. (4.3 kg)
    Power Supply5V DC, locking
    Power Consumption20W (max.)
    Video Input2 x DVI-I, 29-pin, female (digital only)
    Video Output2 x DVI-I, 29-pin, female (digital only)
    USB Host1 x USB Type B, female
    USB Device 4 x USB Type A, female
    Link Connectors5 x RJ-45
    Max Pixel Clock2 x 165 MHz
    Input Video Signal1.2V p-p
    Input DDC Signal5V p-p (TTL)
    Operating Temperature32 - 104 °F (0 to + 40 °C)
