Dual head, single link DVI and USB2.0 KVM Extender (Transmitter/Receiver)

ALIF2020P

$3,140.00

Discontinued
For upgrade or replacement options: Contact Us

Series: INFINITY Dual 2020
Unit: Pair (Transmitter + Receiver)
For Government Pricing
Contact Us

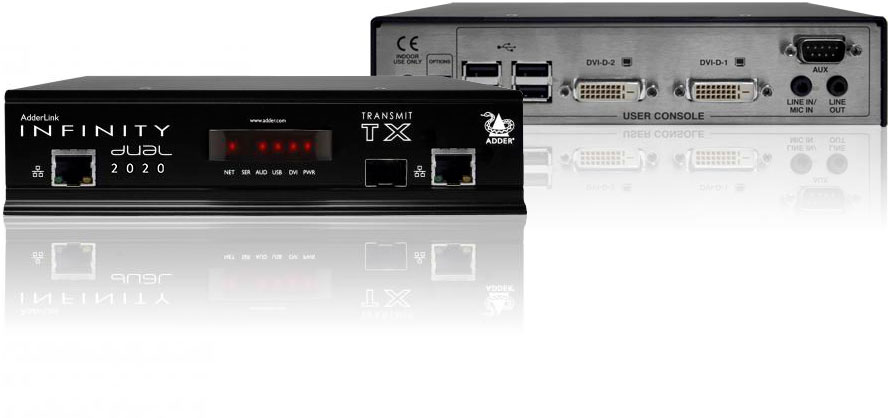

Adder ALIF2020P is a high performance Dual-monitor single-link DVI, USB and Audio KVM Extender / Matrix Switch solution including a Adder ALIF2020T Transmitter and a ALIF2020R Receiver.

Part of the ADDERLink INFINITY series, the ADDERLink Infinity Dual 2020 is a high performance KVM solution that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a single link or dual head at a maximum of 1920 x 1200 at 60Hz, this extender provides an 'at-the-PC' experience up to 6.21mi (10km) via interchangeable CatX and Fiber SFP modules. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

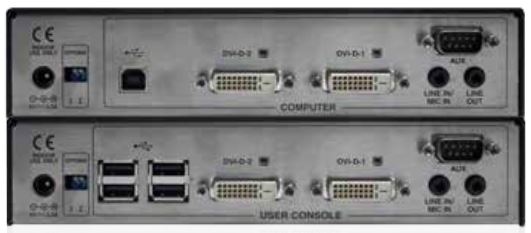

ALIF2020T & ALIF2020R Rear
ALIF2020T Transmitter & ALIF2020R Receiver Rear

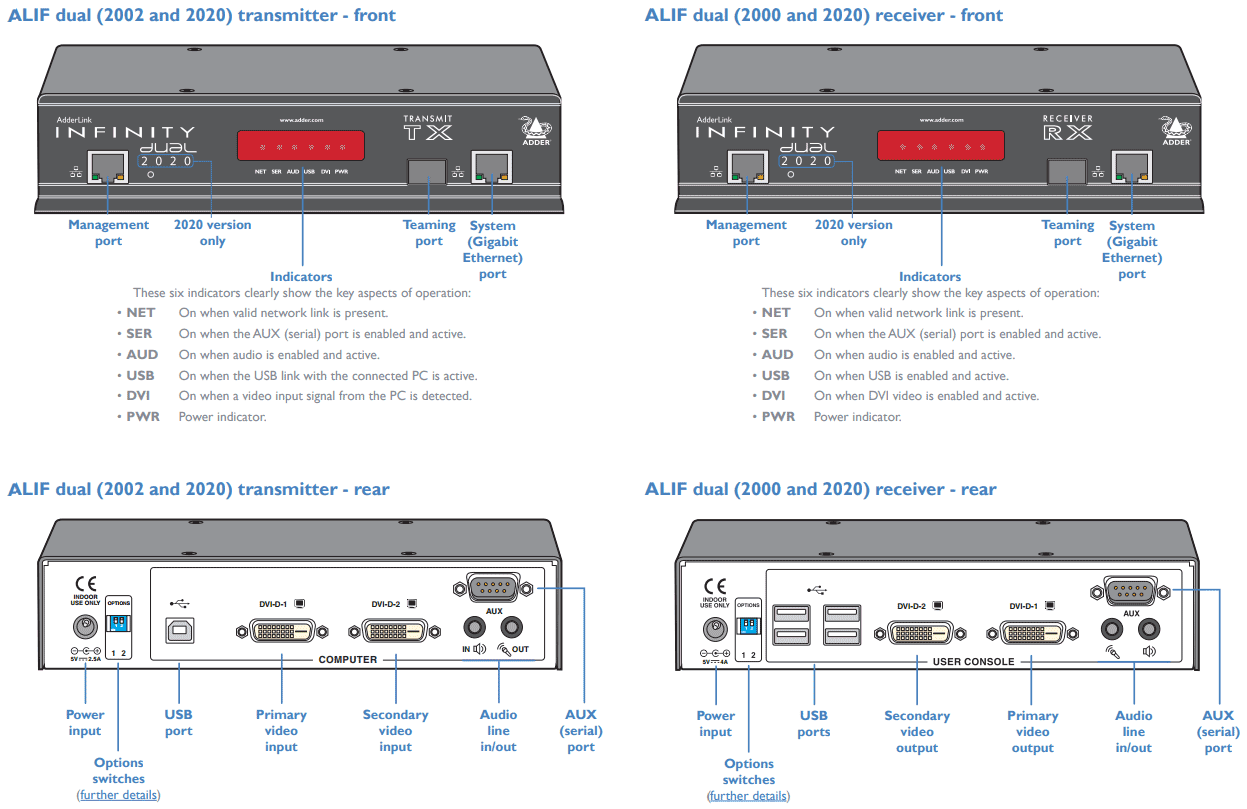

See Detailed Layout

  • Dual-head (dual-monitor), single-link DVI configuration
  • 1920 x 1200 @ 60Hz (24 bits per color) maximum resolution with minimal lag
  • Flexible solution: from point-to-point extender to an infinitely extensible matrix used for IT administration or broadcast
  • Unlimited extension via swappable SFP Modules:
    • 330ft (100m) extension distance on single CATx
    • 1,640ft (500m) to 6.21mi (10km) extension over fiber
    • Unlimited extension via IP network or by chaining units
  • USB 2.0 with Emulation and class control: for faster keyboard and mouse switching plus support for USB mass storage, tablet, touch and more
  • Delivers uncompressed spatially-lossless video & digital stereo audio with option to compress video to minimize bandwidth usage
  • Built-in security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)

Adder ALIF2020P Features

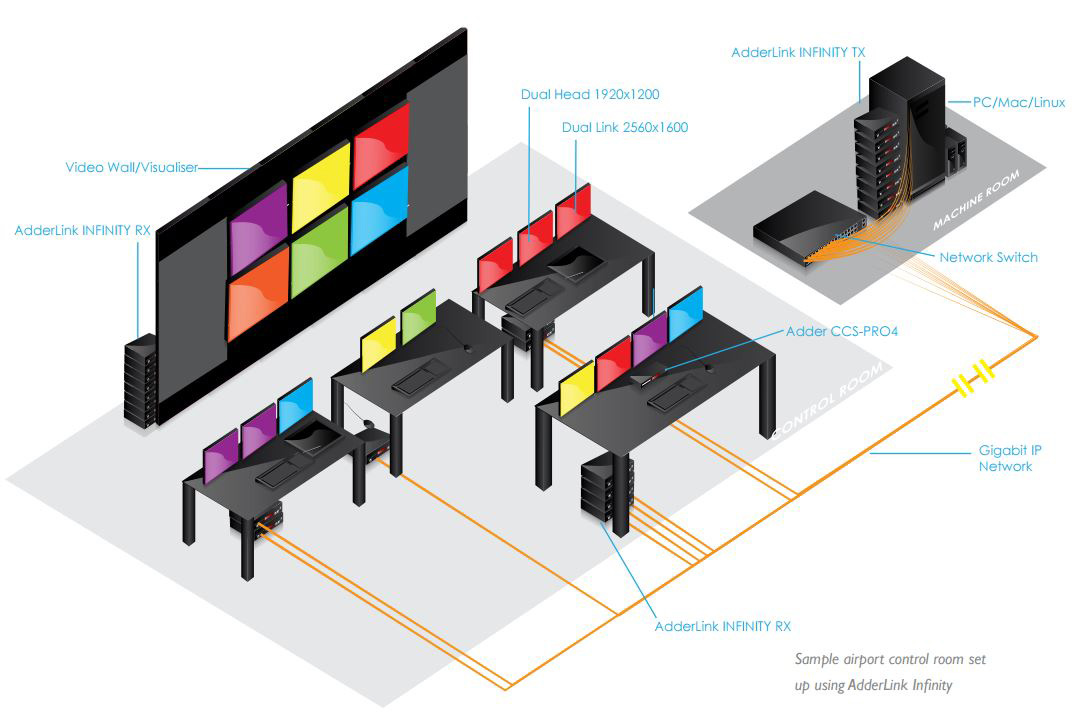

  • Adder ALIF2020P Use Case

    Infinite Flexibility

    With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

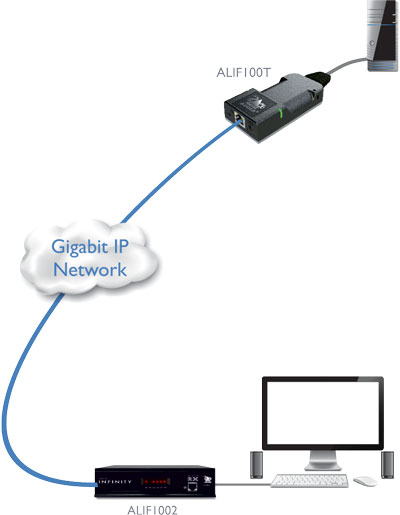

    • Point-to-point extension (local / over-IP)

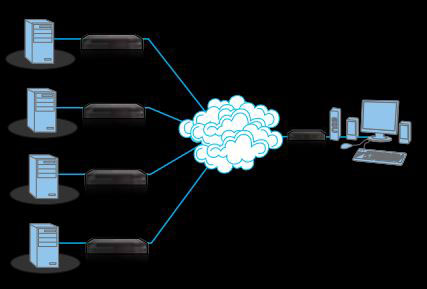

    • AV / KVM Switch multi-point matrix (over-IP)

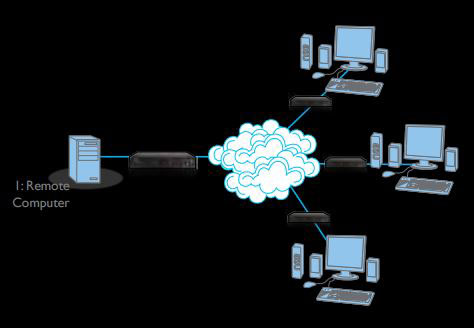

    • Sharing a single target (over-IP)

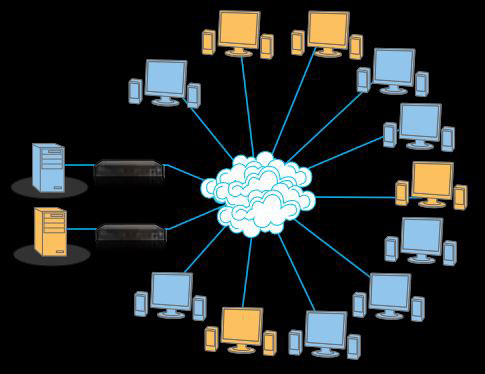

    • Multicasting to many receivers (over-IP)

    Learn more

  • Adder ALIF2020P Perfect digital IP video broadcast, real time control

    Perfect digital video, real time control

    Uncompressed video extension and pixel perfect digital video up to 24 bits per color at a maximum of 1920x1200 over 60hz with real time control. Using a spatially-lossless encoding system, with 1:1 pixel mapping, AdderLink Infinity provides pixel perfect and color accurate video with no artefacts. The digital video you receive is the same as the digital video leaving the remote computer.


  • Adder Multimode SFP Module

    Single CATx or Fiber cable with immunity from interference

    The AdderLink Infinity units were designed from the outset around a highly robust signaling method. This vital core asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7. The AdderLink Infinity dual 2020 also offers the option of up to 6.21mi (10km) distances with fiber.
  • Adder ALIF2020P Extension Over IP Diagram

    Unlimited extension distances

    Extension distance is not limited to a single 330 foot (100 meter) cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 330 feet (100 meters). This can be repeated many times. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.


  • Adder ALIF2020P USB 2.0 with emulation and class control

    USB 2.0 with emulation and class control

    Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.


  • Adder ALIF2020P Enterprise-grade security

    Enterprise-grade security

    Adder Infinity units have built-in security measures compliant with universal enterprise grade security standards inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication.

  • Adder ALIF2020P EDID Management - Ensure Perfect Match Between Source & Display

    Intelligent EDID management

    Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without the additional configuration.

  • Adder ALIF2020P Redundant network

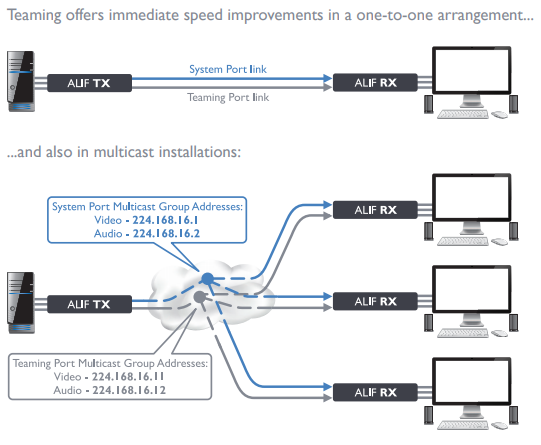

    Redundant network operation

    The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure


  • Adder ALIF2020P - Mac + Dithered Video Support

    Support for MacPro (Dithered Video)

    Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF2020T has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

  • Adder ALIF2020P Plug and Play

    Plug and Play

    AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

  • Adder ALIF2020P Mounting

    Flexible mounting options

    Adder Infinity Dual 2020 units can be rack mounted (1 unit in 1U with RMK4S, or 2 units side-by-side in 1U with RMK4D-R2), left on a desktop, wall mounted (RMKV4), or attached to the back of your monitor using a VESA mounting carriage (RMKV4).

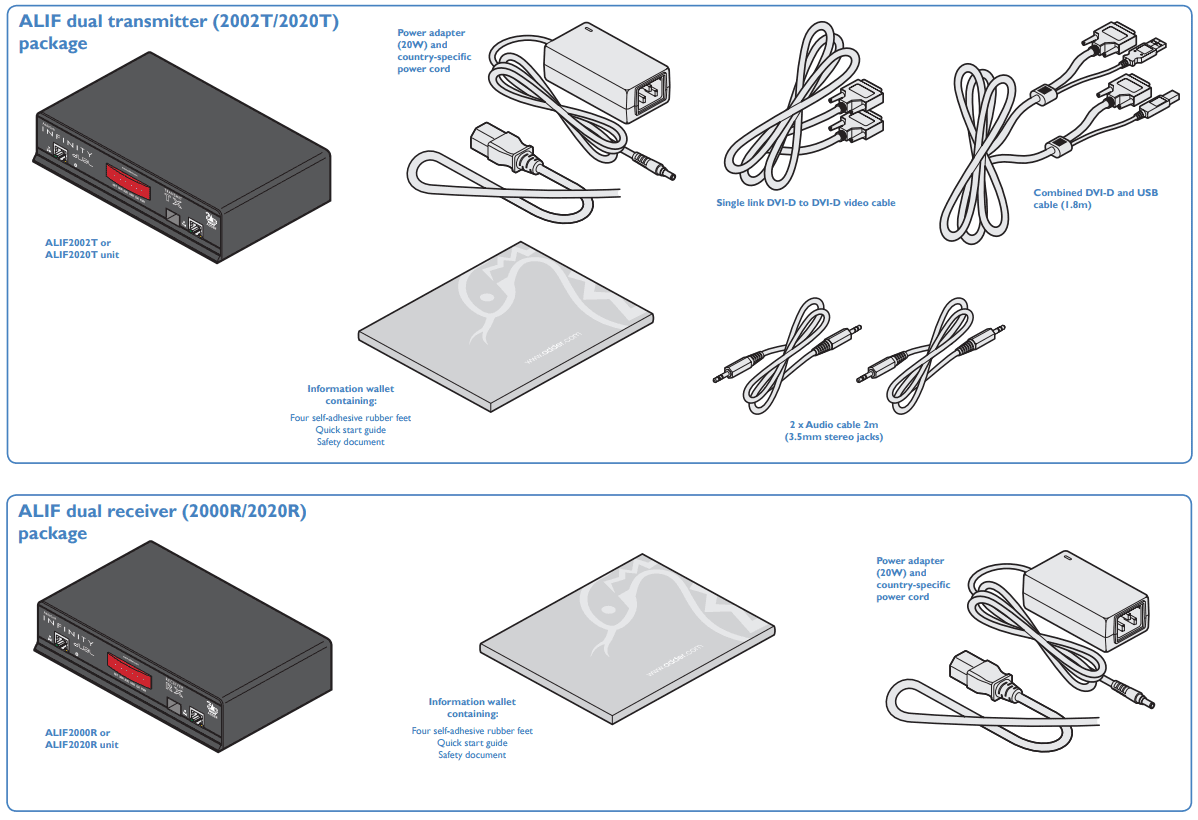

ALIF2020P Package Contents

Adder ALIF2020P Package Contents

  1. (1) ALIF2020T Transmitter
  2. (1) ALIF2020R Receiver
  3. (1) 6ft Single link DVI-D to DVI-D video cable
  4. (1) 6ft Combined DVI-D and USB cable
  5. (2) 6.6ft Audio cable (3.5mm stereo jacks)
  6. (2) Power adapter (20W) and country-specific power cord
  7. (8) Self-adhesive rubber feet
  8. (1) Quick start guide and Safety document
  9. (1) 2-Year Limited Warranty & Lifetime World Class Support


Adder ALIF2020P Specifications

Mechanical
Dimensions (WxHxD)7.92" x 1.76" x 6.0" (198mm x 44mm x 150mm)
Weight2.7 lbs (Each, Receiver/Sender)
Video
ResolutionThe system supports two Single Link DVI-D resolutions to a maximum of 1920 x 1200 @ 60Hz
Transmitter2 x DVI-D, audio 3.5mm in, audio 3.5mm out, USB type B, RS232 9-pin D-type 1 x 8p8c and 1 x SFP for AdderLink Infinity network connections.
Receiver2 x DVI-D, audio 3.5mm in, audio 3.5mm out, 4 x USB type A, RS232 9-pin D-type 1 x 8p8c and 1 x SFP for AdderLink Infinity network connections.
Power
Specs2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 5VDC 20W output from power adapter.
Environmental
Operating Temp.32 to 104°F (0 to 40°C)
ApprovalsCE, FCC

This part is also known as Adder ALIF2020P-US, ALIF 2020P, and ALIF-2020P.

Question: What kind of SFP's does this support (technical specs wise)? What is the recommended SFP tech spec?
Answer: Thank you for your inquiry,

Adder Infinity series generally should support any Gigabit Ethernet (1000Base-T) Active Copper SFP module, or as well as Fiber Channel over Ethernet (FCoE). For more information on supported types of Fiber modules and cables, please refer to the diagram below:

Adder Infinity Fiber modules and cables compatibility table

As far as recommended SFP modules go, Adder also offers their own SFP modules that you can purchase for use with the AdderLink INFINITY Dual ALIF2020 & ALIF2002 units -
Please let us know if there is anything else we can ever help you with!
