Gefen CAT5 1000HD USB KVM Extender



Recommended replacement: NTI ST-IPUSBH-1G
Alternative options: Contact Us

The Gefen EXT-CAT5-1000HD KVM extender sends a DVI display and USB keyboard and mouse up to 150 feet from your DVI or HDMI source. It's designed using technologies that allow industry-standard CAT5 cable to support the high resolutions of digital video plus USB peripherals.

How the Gefen EXT-CAT5-1000HD works

The EXT-CAT5-1000HD sender unit sits next to your computer. The cables supplied with the CAT5-1000HD connects your DVI source and USB to the send unit. The EXT-CAT5-1000HD receiver unit sits next to your DVI display - up to 150 feet away. The display and USB plug into the back of the CAT5-1000HD receiver unit. Two CAT-5 cables connect the CAT5-1000HD-S and the CAT5-1000HD-R units to each other.  The EXT-CAT5-1000HD is HDCP compliant.

*Note: For distances over 100 ft. shielded CAT-5 cable for video is recommended for optimal video quality. The DDC CAT-5 cable does not need to be shielded.

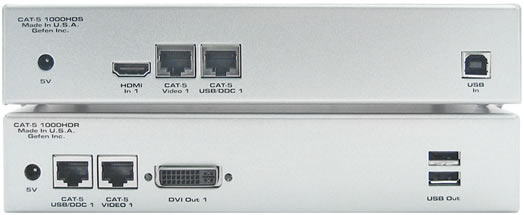

Gefen EXT-CAT5-1000HD Sender & Receiver Units

Gefen EXT-CAT5-1000HD Sender & Receiver Units

Gefen EXT-CAT5-1000HD Features:

  • Extends any DVI (Digital Video Interface) compliant device up to 150 feet from the computer
  • Extends USB 1.1 compliant devices up to 150 feet from the computer
  • Eliminates computer noise where you work
  • Uses two CAT-5e cables
  • Supports VESA Standard and HDTV resolutions
  • Supports DDWG standard for DVI compliant monitors
  • Video is transmitted digitally for zero signal loss

Gefen EXT-CAT5-1000HD Package Includes:

  • the CAT5•1000HD-S
  • the CAT5•1000HD-R
  • One 6 foot DVI to HDMI Cables
  • One 6 foot USB Cable
  • Two 5V Power Supply
  • User's Manual

Gefen EXT-CAT5-1000HD Specifications:

Height 1.75 in. (4.45 cm.)
Width 8.4 in. (21.34 cm.)
Depth 4.4 in. (11.18 cm.)
Weight 7 lbs. (3.18 kg.)
Supply 5V DC
Consumption per unit 10 watts (max)
Video Input HDMI type A 19 pin female
Video HDMI Input 19 pin Type A
Video Output DVI-I (29 pin) female (digital only)
USB Input USB type "B" connector
USB Output Two USB type "A" connectors
Link Connector RJ-45
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Video Amplifier Bandwidth 1.65 Gbps
Single Link Range 1080p/1920 x 1200
