Gefen CAT5 9000 KVM Extender



Recommended replacement: ADDERLink X-USB PRO
Alternative options: Contact Us

The Gefen EXT-CAT5-9000I extends VGA, PS/2, USB, RS-232 and audio up to 330 feet.

How the Gefen EXT-CAT5-9000I works

The EXT-CAT5-9000I sender sits next to your computer. Cables supplied with the EXT-CAT5-9000I connect your CPU to the sender. The EXT-CAT5-9000I receiver sits next to the monitors, keyboard/mouse, RS232 and audio devices - up to 330 feet away. Monitors, keyboard, mouse, audio and RS232 plug into the back of the receiver. Three CAT-5 extension cables connect the CAT5•9000I send and the CAT5•9000I receive unit to each other.

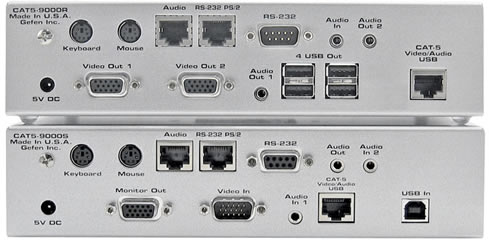

Gefen EXT-CAT5-9000I Backside

Gefen EXT-CAT5-9000I Receive & Sender Backside

Gefen EXT-CAT5-9000I Features:

  • Saves money on cable and hardware costs
  • Saves space on your desktop
  • Convenient, flexible and expandable
  • Eliminates computer noise where you work
  • Maintain high resolution video
  • Supports any type of CRT or LCD analog monitor
  • USB supports high powered 4 port HUB
  • Ideal for Mac or PC computers using USB or RS232 peripherals
  • Extends two audio outputs for multimedia applications
  • Extends RS-232 tablets & touchscreens
  • Rackmountable

Gefen EXT-CAT5-9000I Package Includes:

  • CAT5•9000IS Sender Unit
  • CAT5•9000IR Receiver Unit
  • One 6ft VGA cables
  • One 6ft USB cable
  • Two PS/2 (m-m) cables
  • One 6ft Audio cable
  • Two 5 VDC power supply

Gefen EXT-CAT5-9000I Specifications:

Mechanical Sender Receiver
Height 1.95 in. (4.95 cm.) 1.95 in. (4.95 cm.)
Width 8 in. (20.32 cm.) 8 in. (20.32 cm.)
Depth 4 in. (10.16 cm.) 4 in. (10.16 cm.)
Shipping weight 12 lbs. (5.44 kg.)
Supply 2x External 5VDC 2.5A
Consumption 15 Watts (max.)
CAT-5 Connector RJ-45
PS/2 Connector 6 Pin MiniDin
RS232 Connector DB-9
USB - "A" Connector USB Input
USB - "B" Connector USB Device Input
Video Amplifier Bandwidth 350 MHz
Actual Bandwidth 120 MHz
Input Video Signal 1.2 Volts p-p
Frequency Range
Horizontal Frequency Range 15-70 KHz
Vertical Frequency Range 30 - 170 Hz
Focus Adjustment Internal
Brightness Adjustment Adjustable
