The Adderlink X-USBPRO-US is a Dual VGA, Audio and 4-port USB Extender over CATx. It is a Dual Head VGA, Audio and 4-port USB hub (full speed) that extends up to 300 meters over two CATx cables.
Adder's next generation USB, video and audio extender delivers sharp, bright and high resolution video images and high quality audio for multi screen desktops at distances up to 300m (1000ft) over CATx cables. The AdderLink X-USB PRO MS has been designed to provide industry leading video clarity, compatibility and high rack densities.
- Long-haul USB KVM extender, up to 1000 ft (300 m)
- Transparent USB, VGA video and stereo audio over single CATx wire
- High video quality up to 1920 x 1200
- Finely adjustable video compensation
- CD quality stereo audio
- 4-port USB 2.0 hub at receiver

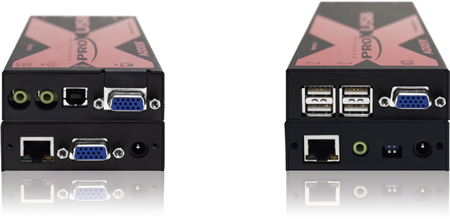

X-USB Pro Transmitter & Receiver Layout
Adder X-USBPRO Features
High-definition Digital-like VGA video
The X-USBPRO KVM extension system supports crisp and clear industry leading video - high resolution 1920 x 1200 is achievable at up to 300 meters (1000ft). This is achievable by including a variable noise filter which overcomes issues introduced by increased gain as the length of the cable increases over 200 meters (650ft).
A Multi-pole compensation technique is used enable superb video quality at maximum distance over a single cable. For the first time, adjustment can be made for cable type and cable length with further color skew compensation and gain adjustment to ensure crystal clear images, all from the receiver's keyboard.
4-Port transparent USB 2.0 Hub (Low, Full, High Speed)
The X-USB extends USB 2.0 (low and full speed) allowing all USB compatible accessories (including isochronous devices) to be extended. The receiver unit has a built in 4 port USB hub to enable a complete desktop to be located remotely, including a keyboard, monitor, mouse, disk drive, flash memory stick, webcam, and any other device that would normally be plugged into your computer's USB port.
Local Feed-through Port
For local control of the connected computer, the ADDERLink X-USBPRO also provides local feed trough ports for audio and video at the transmitter unit.
USB Powered Transmitter
The transmitter is powered via its USB port to reduce the need for external supplies. There is also an option for an external power supply if the USB port has insufficient power.
Dual User Configuration
Two X-USB PRO units can be linked to a single computer so two users can access the system. Arbitration between the users is handled by the USB sub-system of the computer. This means that both users can control the computer at exactly the same time and the resulting keyboard and mouse influences will be an amalgam of the two inputs.
Emulated 2 Page DDC EDID
This X-USBPRO extender supports full two page DDC EDID, which some high performance video cards require or they will not deliver optimal performance or work at all.
Bidirectional CD-quality audio
Audio transmission delivers CD quality stereo audio (16 bit sampled at 44.1kHz) to transfer stereo audio from local to remote for Line Out.
High density rack mount option
Both transmitter and receiver units can be used stand-alone or up to 16 units to can be mounted into a 2U 19" chassis (X-RMK-CHASSIS).
Plug and Play
Installation is straightforward and there is no need for any extra drivers or software to be installed.
Fully platform independent
The ADDER X-USBPRO supports fully transparent USB connections and is able to support all common hardware platforms including PC, Sun and MAC and their associated peripherals.
X-USBPRO-US Package Contents
- (1) X-USBPRO Local Transmitter
- (1) X-USBPRO Remote Receiver
- (1) VSC24: 6.6ft / 2m USB cable, type A to B
- (1) VSC18: 6.6ft / 2m VGA video cable (male to male)
- (1) VSC22: 6.6ft / 2m audio cable (3.5mm jacks)
- (1) PSU-IEC-5VDC-2.5A: Power adapter + US power cord (for remote receiver)
- (1) Safety document
- (8) Self-adhesive rubber feet
- (1) 2-Year Limited Warranty & Lifetime World Class Support
Adder X-USBPRO Specifications
|Height ||1.02 in. (26mm) |
Remote - 6.4 in. (162mm) Local - 4.8 in. (122mm)
|Depth||29.52 in. (75mm)|
|Weight||Remote- .94 lb. (430g) Local- .77 lb (350g)|
|Operating Temperature||0°C to 40°C / 32°F to 104°F|
|Power Input||100 - 240VAC 50/60Hz |
|Power Output||5V -12W|
|Supported Hardware|| |
|Connectors||4 x USB type A connectors, 1 x 15-pin high-density D type female connector (blue), 1 x 3.5mm audio jack (light green), 1 x RJ45. 1 x 2.5mm DC jack for power adapter|
|Audio||2 channel 16 bit Audio @ 44.1 KHz|
THD+N typically -80dB at 1kHz
SNR typically 85dB at 1kHz
|Connectors||1 x USB type B connector, 2 x 15-pin high-density D-type female connector (blue), 2 x 3.5mm audio jack (light green), 1 x RJ45. 1 x 2.5mm DC jack for optional power adapter (only required for video only applications) |
|Operating System Compatibility|
All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc
|USB Devices Supported||Supports all USB 1.1 devices (full speed and low speed modes) and USB 2.0 devices that will run in low speed or full speed USB 1.1 modes|
|Skew Compensation||62ns de-skew with 2ns resolution (1/4 pixel at 1600x1200)|
|Extension Distance||200 meters using CAT5 Trunk cable|
250 meters using CAT5e Trunk cable
300 meters using CAT6 Trunk cable
300 meters using CAT7 Trunk cable
200 meters using CAT7a Patch cable
|Video Resolutions||All resolutions up to 1920 x 1200 @60Hz, including 1600x1200, 1080p, 1680x1050|
|Approved Agency ||CE, FCC class A|
X-USBPRO is also known as X-USB-PRO, X-USBPRO-US, and X-USBPRO-USA.
Question: we need the data sheet with wiring diagram
Answer: Thank you for your inquiry. We have uploaded both the manual and data sheet for the AdderLink X-USB PRO on the product's page.
Question: What does the US on the end stand for? My product spec calls for the X-USBPRO (without the "US") Is this the same thing?
Answer: Thank you for your inquiry. For the most part, yes they are the same part. The official part number for this product is X-USBPRO-XX (where -XX is a country specific code). The -US part is the Code for the United States. Other country codes include:
-UK = United Kingdome
-EURO = Europe
-AUS = Australia
Question: Will this work extending USB Mouse and Keyboard over CAT6 340ft from an Adder CCS-Pro4?
Answer: Thank you for your inquiry,
You can indeed use this Adder X-USB-PRO as a USB Keyboard & Mouse Extender; The X-USB-PRO extends up to 4 USB port signals up to 1000 feet / 300 meters via Cat6 cabling from an Adder CCS-PRO4 or any other USB-based device.
Please let us know if there is anything else we can help you with!
Question: Is it possible that the X-USBPRO-US can go through a switch considering that it is only for a workstation?
Answer: Thank you for your inquiry,
You can indeed use the X-USBPRO-US KVM Extender to extend the distance between your source computers and the KVM Switch, or to extend the KVMs local user station -where you control the switch- further away.
If you are looking for a IP / LAN based extension solution through a network switch instead, you may be interested in the AdderLink INFINITY
solution instead. You could get a ALIF1002AT-US Transmitter
with a ALIF1002R Receiver
and simply connect them together through a network switch. With the additional Infinity Manager
you can also expand this point-to-point extension application into a multi-point switch or splitter / broadcast solution.
Please let us know if you have any questions or there is anything else we can ever help you with!
