Gefen Component Audio to HDMI Adapter

EXT-COMPAUD-2-HDMIN

$199.00

Discontinued
Recommended replacement: Video Adapters & Converters
Alternative options: Contact Us

The EXT-COMPAUD-2-HDMIN is a component audio to HDMI Adapter which converts component video and analog audio to HDMI. It also allows older analog devices to be integrated into the modern home theater. This adapter connects component video home theater devices to HDMI compliant digital monitors. This adapter also takes analog L+R audio and encodes it onto the HDMI signal for the full HDMI video and audio effect. With the Component Audio to HDMI Adapter legacy home theater devices and computer systems can be connected to any HDMI display for the full digital video and audio experience.

Simply connect the supplied Component cable to the input side of the Component Audio to HDMI Adapter. Then connect the RCA audio cables to the audio inputs of the Component Audio to HDMI Adapter. Then connect the HDMI display or projector to the HDMI output of the Component Audio to HDMI Adapter. The adapter generates the compatible analog to digital conversion signals for video and audio as well encoding the audio onto the HDMI to make the connection between the analog inputs and the digital output work.

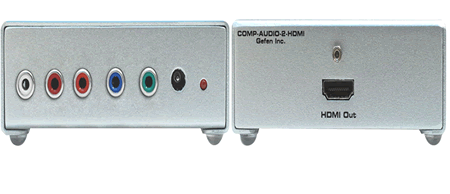

Gefen Audio to HDMI Adapter Side Views

Gefen Audio to HDMI Adapter Side Views

Gefen EXT-COMPAUD-2-HDMIN Features:

  • Supports resolutions up to 1080p/60 and 1920x1200
  • Allows you to connect YPbPr sources to HDMI equipment
  • Encodes analog audio with the video signal into HDMI
  • Plug-and-play installation
  • HDMI 1.2 compliant

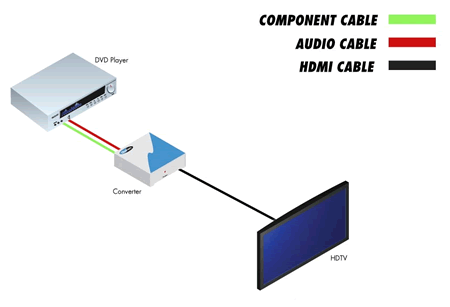

Gefen Audio to HDMI Adapter Application Diagram

Gefen Audio to HDMI Adapter Application Diagram

Package Includes:

  • Component Audio to HDMI Adapter
  • One 5V Power Supply
  • One 6 ft RCA L+R Audio Cable
  • One 6 ft 3 RCA Cable
  • Users Manual

Gefen EXT-COMPAUD-2-HDMIN Specifications:

Mechanical
Height 1.2 in. (3.0 cm.)
Width 4 in. (10 cm.)
Depth 3.7 in. (9.4 cm.)
Weight 2 lbs. (1 kg.)
Power
Supply 5V DC
Consumption 5 Watts (max)
Maximum Pixel Clock 165 MHz (HDMI)
Maximum Video Bandwidth 350 MHz (YPbPr)
Input Video Signal 1.2 Volts p-p
Connectors
HDMI Output (1) Type A 19 pin female
Component (1) YPbPr - 3 RCA
Audio Input (1) L+R Analog RCA
