Gefen Dual Link DVI Booster PLUS - 200ft*

EXT-DVI-141DLBP

$256.00$178.60
Save $77.40
FREE Shipping on orders over $100

The Gefen EXT-DVI-141DLBP is a DVI DL Booster Plus that uses a plug-in power supply which helps to extend sparkling clear video images to great distances (up to 200 feet at 2560x1600). Rest assured that with this product you can enjoy your computer desktop as if the computer was in the same room as the display. To go beyond the limited inherent DVI distance or if you'd like to use two or more cables, our Boosters are a perfect option. They replicate digital video signals, enabling you to "daisy chain" cables and Boosters as far as you need to go.

How It Works
This plug and play installation takes mere seconds. Simply place the DVI-DL Super Booster Plus in the middle of two Dual-Link cables or at the end of a long DVI-DL cable extension. Make sure all video cables are connected properly at the source and destination ends. Attach the power cable to the DVI-DL Super Booster Plus. Power up (or restart) all equipment.

Gefen EXT-DVI-141DLBP Side Views
Gefen EXT-DVI-141DLBP Side Views

Gefen EXT-DVI-141DLBP Features:

  • Perfects video sent over long stretches of Dual-Link DVI cables
  • Extends DVI Dual Link displays away up to 200 feet
  • Supports resolutions up to 3840x2400 @ 60 Hz
  • Supports DDWG standards for DVI compliant monitors
  • DDC Signal is amplified for better robustness when interfacing
  • HDCP compliant

Package Includes:

  • (1) DVI DL Super Booster Plus
  • (1) 5V DC Power Supply
  • (1) User's Manual

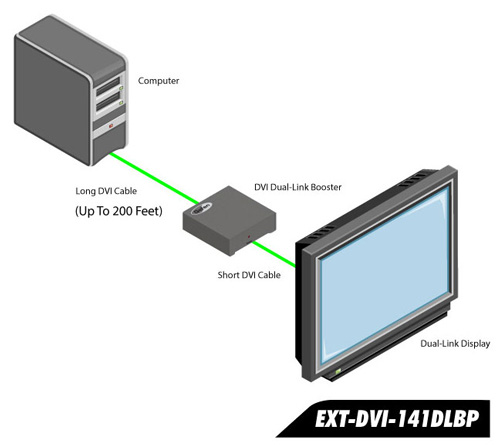

Gefen DVI DL Booster PLUS Diagram
Gefen DVI DL Booster PLUS Diagram

Gefen EXT-DVI-141DLBP Specifications:

Mechanical
Height 1 in. (2.54 cm.)
Width 1.75 in. (4.45 cm.)
Depth 1.875 in. (4.762 cm.)
Shipping Weight 1 lb. (0.45 kg.)
Power
Supply 5V DC
Consumption 5 watts (max)
Input Signal
Video 1.2 volts p-p
DDC 5 volts p-p (TTL)
Video Amplifier Bandwidth 2 x 165 MHz
Dual Link Range up to 3840x2400 @ 60 Hz
DVI Connector DVI-I (29 pin) female (digital only)
UPC / EAN Barcode icon
UPC 845344050706
EAN 0845344050706
