Gefen DVI Super Booster PLUS

EXT-DVI-141SBP

$249.00

Discontinued
Replaced by: Gefen EXT-DVI-141DLBP
Alternative options: Contact Us

The Gefen EXT-DVI-141SBP is a DVI Super Booster Plus that allows the extension of HD digital video over copper DVI cable well beyond its specified 15-foot distance. Without such a device, sparkles or other objectionable mutations of the video signal can appear that indicate the signal has been degraded.  The DVI Super Booster Plus uses a plug-in power supply which helps to extend sparkling clear video of up to 1080p or 1920x1200 resolution at a maximum distance of 200 feet.

How It Works
Simply place the DVI Super Booster Plus at the end of your cable, then connect your monitor's cable to the DVI Super Booster Plus. Make sure all video cables are connected properly at the source and destination ends. Attach the power cable to the DVI Super Booster Plus. Power up all equipment. You will now see flawless video at your remote display as if you were sitting directly in front of a local HDTV monitor.

Note: The DVI Super Booster Plus is HDCP pass-through.

Gefen EXT-DVI-141SBP Side Views
Gefen EXT-DVI-141SBP Side Views

Gefen EXT-DVI-141SBP Features:

  • Perfects digital video sent over long stretches of DVI cables
  • Extends DVI displays away from the HDTV source
  • Maintains highest Single Link resolutions up to 1080p/1920x1200
  • Supports DDWG standard for DVI compliant monitors
  • HDCP Compliant

Included in the package:

  • (1) DVI Super Booster
  • (1) 5VDC Power Supply
  • (1) User's Manual

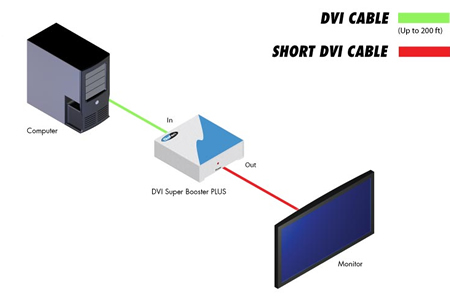

Gefen DVI Super Booster PLUS Wiring Diagram
Gefen DVI Super Booster PLUS Wiring Diagram


Gefen EXT-DVI-141SBP Specifications:

Mechanical
Height 1 in. (2.5 cm.)
Width 1.75 in. (4.45 cm.)
Depth 1.875 in. (4.762 cm.)
Shipping Weight 1 lbs (0.45 kg.)
Power
Supply 5VDC
Consumption 5 Watts (max)
Input Signal
Video 1.2 volts p-p
DDC 5 volts p-p (TTL)
Video Amplifier Bandwidth 165 MHz
Single Link Range up to 1920x1200, 2K, 1080p
DVI Connector DVI-I (29 pin) female (digital only)
