Gefen DVI, Audio, RS232 over Fiber Extender

EXT-DVI-1600HD

$1,699.00

Discontinued
Recommended replacement: Adder XD150FX-MM
Alternative options: Contact Us

The Gefen EXT-DVI-1600HD is a DVI/HDMI Extender System which is for extending and managing control systems at great distances. The Gefen EXT-DVI-1600HD sends DVI or HDMI, Audio, and RS232C signals up to 300m away when used with DVI at 1920x1200 and up to 2km when used with DVI at lower resolutions. It maintains HD video signals up to 1920x1200 with computers and 1080p with HD equipment. Additionally, extension of RS232 signals helps create long-distance control systems for AV integration or touch-panel systems.

How It Works
The Gefen EXT-DVI-1600HD system uses a send-and-receive methodology. The DVI/HDMI/Audio/RS232C source devices are plugged into the Sender module. At the Receiver, remote devices (including an HD display) plug into the Receiver module. The proper length of fiber optic cable is connected at both ends. Power supplies for the modules are plugged into wall sockets and a crisp vibrant HD picture results.

Note:
This device fully supports Display Data Channel (DDC) and High-Bandwidth Digital Content Protection (HDCP) when the front panel switch on the sender module is selected to HDMI.
The Gefen EXT-DVI-1600HD uses a DVI connector for video. HDMI can be sent by using adapters or combo cables to provide DVI video with external digital audio as combined input to the EXT-DVI-1600HD Sender unit. The result will be HDMI with embedded audio at the Receiver end. The digital input jacks can only support D-PCM or PCM stereo audio formats.

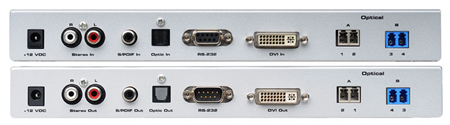

Gefen EXT-DVI-1600HD Back Views
Gefen EXT-DVI-1600HD Back Views

Gefen EXT-DVI-1600HD Features

  • Pure signal integrity and best image over long distances
  • Fiber-optic transmission medium eliminates electromagnetic interference (EMI) during send or receive operations
  • Lightweight, rugged cabling and connectors
  • Cost effective per foot/meter
  • Low power consumption at 72W total
  • Plug and play installation ease -- no software drivers
  • Can use both Single and Multimode optical fi ber cables
  • Maximum range of 2km for DVI, 200m if sending DDC/HDMI with HDCP
  • RS232 signal extension helps create long-distance control systems for A/V integration

Package Includes:

  • (1) Gefen DVI-1600HD Sender
  • (1) Gefen DVI-1600HD Receiver
  • (1) 6 Foot DVI Video Cable (M-M)
  • (1) 6 Foot DB9 RS-232 Cable (M-F)
  • (1) User's Manual

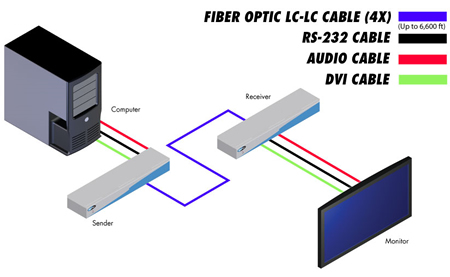

Gefen DVI, Audio, RS232 over Fiber Extender Wiring Diagram
Gefen DVI, Audio, RS232 over Fiber Extender Wiring Diagram

Gefen EXT-DVI-1600HD Specifications:

Mechanical
Height 1.2 in. (3 cm.)
Width 10.3 in. (26.2 cm.)
Depth 5.1 in. (13 cm.)
Shipping Weight 5lbs (1.36 kg )
Input Connector
Analog Audio 1 x Pair RCA L+R stereo
Digital Audio 1 x S/PDIF coaxial digital audio; 1 x TOSLINK optical digital audio
Digital Video  1 x DVI, 29-pin Female
Output Connector
Analog Audio 1 x Pair RCA L+R stereo
Digital Audio 1 x S/PDIF digital audio; 1 x TOSLINK optical digital audio
Digital Video 1 x DVI, 29-pin Female
Input Signal Voltage
Video 1.2 Volts p-p
DDC 5 Volts p-p (TTL)
Video Amplifier Bandwidth 165 MHz
Power
Supply 12V DC x 2
Consumption 72 Watts total
Maximum Resolution 1920x1200/1080p
RS232 Connectors (Input, Output) 9-pin Serial, Female
Operating Temperature 0 to 50 C
Relative Humidity 10-85%
Link Connector 4-strand LC-LC fi ber optic cable (single or multi-mode)
