Gefen DVI over a single CAT-6 cable



Replaced by: Gefen EXT-DVI-1CAT5-SR
Alternative options: Contact Us

The Gefen EXT-DVI-1CAT6 extends DVI over one CAT-6 cable. The Gefen DVI Over 1 CAT6 Extender will send a single-link DVI video signal over just one (1) CAT-6a cable at distances of up to 200 feet (60m) at 1920x1200@60Hz. Extension of DVI can now be simplified with the use of a single CAT-6a cable. Other solutions use at least 2 CAT5/CAT6 cables to accomplish this. The Gefen DVI Over 1 CAT6 Extender fully supports all of the DVI specification for true compatibility with DVI devices. The Extender's pure digital transmission method insures 100% signal integrity over this single cable extension solution.

How It Works
The DVI Over 1 CAT6 Extender system consists of Sender and Receiver units. The DVI source (computer, set-top box, or DVD player) connects to the Sender box with the supplied 6-foot DVI cable. The Receiver box connects to a DVI-compliant video display. One CAT-6a cable links the sender and receiver together at distances of up to 200 feet. Power is applied to both the Sender and Receiver with the included 5V DC power supplies. The original DVI source image now appears flawlessly on the extended display.


This device is an HDCP-compliant device.

If CAT5 cable is used a reduced distance will result.

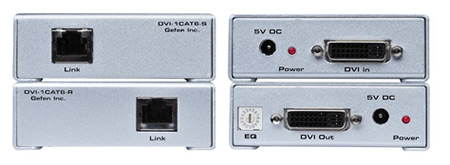

 Gefen EXT-DVI-1CAT6 Backview
Gefen EXT-DVI-1CAT6 Backview

Package Includes:

  • (1) DVI Over One CAT6 Extender Sender
  • (1) DVI Over One CAT6 Extender Receiver
  • (2) 5V DC Power Supplies
  • (1) User's Manual
  • (1) 6-foot DVI cable (M-M)

Gefen EXT-DVI-1CAT6 Features:

  • Flexible extension of single-link DVI
  • Max. Video Resolution: 1920x1200@60 Hz
  • Compliant with all of the DVI 1.1 standard and all true DVI-Compliant peripherals
  • Equalizes the video signal and retransmits it in optimal quality regardless of incoming signal quality
  • Eliminates computer noise in the viewing environment
  • Improved compensation for cable skew

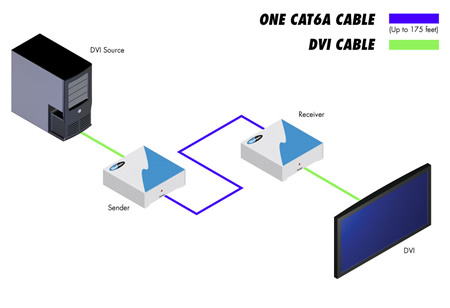

Gefen EXT-DVI-1CAT6 Application Diagram
Gefen EXT-DVI-1CAT6 Application Diagram

 Gefen EXT-DVI-1CAT6 Specifications:

Depth 3.4 in.. ( cm.)
Width 3.3 in. ( cm.)
Height 1.3 in. ( cm.)
Weight  4.0 lbs. ( kg.)
Video Amp. Bandwidth 165 MHz
Single Link Range 1920x1200@60Hz
Input DDC Signal 5 Volts p-p (TTL)
Input Video Signal: 1.2 Volts p-p
DVI Input and Output Connectors two (2) 24-pin DVI Female
Link Connector one (1) RJ-45 Shielded
Power Supply (2) 5V DC Power Supplies, 10W power consumption each
Question: where can we get this product in Maharashtra in india & product pries in India rupees
Answer: Thank you for your inquiry. Please see Gefen directly for local distributor in your area. You can find a Gefen reseller on the following page:
