Gefen DVI-USB Extnder - Sender & Receiver

Gefen EXT-DVI-3500HD

$2,679.00$1,826.59
Save $852.41

Discontinued
Recommended replacement: Gefen EXT-DVI-3600HD
Alternative options: Contact Us

The Gefen EXT-DVI-3500HD allows you to operate a single DVI-compliant computer at two physical locations. DVI, USB, analog audio, and RS-232 are extended from the local computer to the remote workstation. USB peripherals can be operated by the computer at either location exclusively.

How It Works
Gefen's EXT-DVI-3500HD system consists of a Sender and a Receiver unit. The Sender connects to the computer's DVI-compliant video card output, analog audio jack, RS-232 port, and USB port. The EXT-DVI-3500HD Receiver connects to the remote display and peripherals. Four strands of LC fiber optic cable connect the Sender and Receiver together.

The EXT-DVI-3500HD has two modes of USB operation. When in local mode, the computer sees USB devices connected to the Sender. When in remote mode, the computer sees USB devices connected to the Receiver. Modes are switched using a switch on the front panel of the Sender.

Note:
Extension distance will depend on the type of fiber media used:

Single Mode: WUXGA resolution @ 2000m (6,600ft)
Multi-Mode : WUXGA resolution @ 500m (1,650ft)

Gefen EXT-DVI-3500HD Features:
  • Extends any DVI compliant computer up to 6,600 feet (2 km)
  • Uses 4-strand multimode LC fiber cable
  • Supports computer resolutions up to 1920x1200@60 Hz
  • Supports DDWG standards for DVI compliant monitors
  • Supports Virtual DDC and DDC2B protocols

Gefen EXT-DVI-3500HD

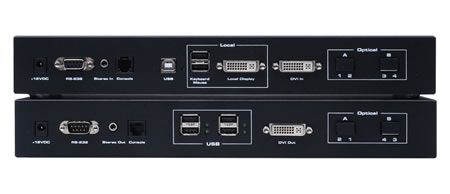

Gefen EXT-DVI-3500HD Extender Sender/Receiver Back View

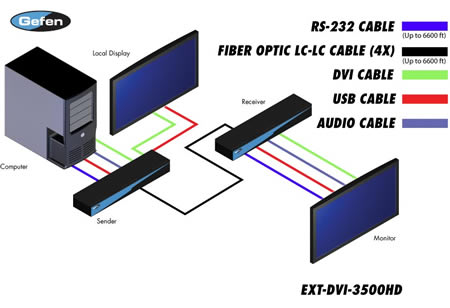

Gefen EXT-DVI-3500HD Extender Diagram

Gefen EXT-DVI-3500HD Package Includes:

  • (1) DVI 3500HD Sender
  • (1) DVI 3500HD Receiver
  • (2) 12V Power Supply
  • (1) 6ft DVI-DL Cable (M-M)
  • (1) 6 ft DB9 RS-232 Cable (M-F)
  • (1) 6ft USB Cable (A-B)
  • (1) User's Manual

Gefen EXT-DVI-3500HD Specifications:

Dimensions 5.2"D x 12.5"W x 1.75"H
Weight 8 lbs.
Video Amplifier Bandwidth 165 MHz
Input Video Signal 1.2 Volts p-p
Input DDC Signal 5 Volts p-p (TTL)
DVI Connectors DVI-D 24-pin female (Sender & Receiver)
USB Input USB "B" male (Sender)
USB Outputs 2 x USB "A" female (Sender)
USB Outputs 4 x USB "A" female (Receiver)
RS-232 Connectors female 9-pin DB9 (Sender) / Male 9-pin DB9 (Receiver)
Link Connector LC fiber (Sender & Receiver)
Audio Connector 3.5mm mini-stereo (Sender & Receiver)
Power Supply 2 x 12V DC, Total 72W (36W power consumption each, max)
Power Consumption 36 Watts (max per unit)


Question: can we have the Input Power Supply with Dual source ( 110 VAC - 230 VAC )
Answer: Yes, all Gefen products come with a universal power supply
