Gefen 8x1 DVI SL/DL Switcher

EXT-DVI-841DL

$1,199.00

Discontinued
For upgrade or replacement options: Contact Us

The Gefen EXT-DVI-841DL is a 8x1 DVI SL/DL Switcher which routes one of eight single link or dual link DVI sources to one single link or dual link display.

The rackmountable Gefen 8x1 single link/dual link DVI Switcher offers an economical solution by eliminating the need to purchase many displays for each computer in a studio or lab environment. A plug-and-play solution, the 8x1 DVI-SL/DL Switcher shares one display with up to eight computers. The source computer is selected using the included IR remote control or through RS-232 control.

The DVI monitor is connected to the switcher's output. Up to eight DVI-SL/DL sources connect to the switcher's DVI inputs using the included DVI cables. The included 5V DC power supply is plugged into a power outlet and connected to the switcher. The currently selected DVI source appears on the shared monitor. Sources are selected/switched using the included IR remote control, the RS-232 control, or the input selector push button on the front panel.

Gefen 8x1 DVI SL/DL Switcher Backview

Gefen 8x1 DVI SL/DL Switcher Backview

Gefen EXT-DVI-841DL Features:

  • Switches easily between any eight DVI computers
  • Maintains highest resolution dual link DVI at up to 3840x2400
  • Extends the range of DVI signals to 50 feet
  • Supports DDWG standards for DVI monitors
  • Serial RS-232 remote port
  • Discrete IR remote control included (EXT-RMT-8IR)
  • Rack ears included

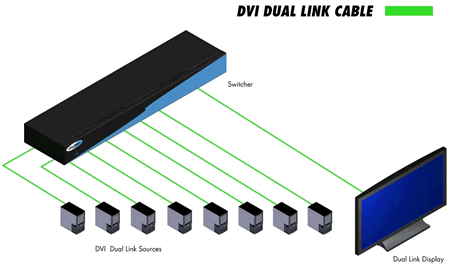

Gefen 8x1 DVI SL/DL Switcher Application Diagram

Gefen 8x1 DVI SL/DL Switcher Application Diagram

Package Includes:

  • (1) Gefen 8x1 Single Link/Dual Link DVI Switcher
  • (1) 5V DC Power Supply
  • (8) 6-foot Dual Link DVI video cables
  • (1) Infrared remote control
  • (1) Set of Rack Ears
  • (1) User's Manual

Gefen EXT-DVI-841DL Specifications:

Mechanical
Height 1.8 in. (4.6 cm.)
Width 17 in. (43 cm.)
Depth 4.4 in. (11.2 cm.)
Weight 12 lbs. (6 kg.)
Power
Supply 5V DC
Consumption 20 watts (max)
Video Amplifier Bandwidth 165 MHz x 2
Input Signal
Input Video Signal 1.2 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Link Range
Single 1920x1200
Dual 3840x2400
DVI Connector DVI-I 29 pin female (digital only)
Rack mount 1U Rack Space
Question: Does this work well with OS X?
Answer: Thank you for your inquiry. Since this is a hardware solution, that does not require any software installation, this unit should work well with OS X. Of course it also depends on meeting system requirements, environmental factors, distance traveled, etc.
