Gefen DVI Audio to HDMI Adapter

EXT-DVIAUD-2-HDMI

$299.00

Discontinued
Recommended replacement: Video Adapters & Converters
Alternative options: Contact Us

The Gefen EXT-DVIAUD-2-HDMI is a DVI Audio to HDMI Adapter which is a device that combines digital video (DVI) and digital audio into HDMI to seamlessly integrate into the modern home theater. This Gefen adapter connects DVI home theater devices or DVI video graphic cards to HDMI compliant digital monitors. This adapter also takes digital audio and encodes it onto the HDMI signal for the full HDMI video and audio effect. With the DVI Audio to HDMI Adapter home theater devices and computer systems can be easily connected any HDMI display for the full digital video and audio experience.

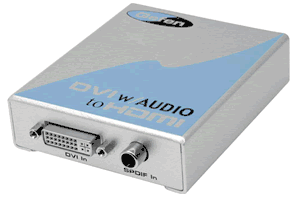

Gefen DVI Audio to HDMI Adapter Side Views
Gefen DVI Audio to HDMI Adapter Side Views

How the Gefen DVI Audio to HDMI Adapter works:

Connect the supplied DVI cable to the input side of the DVI Audio to HDMI Adapter. Then connect the SPDIF digital audio cable to the audio input of the DVI Audio to HDMI Adapter. Then connect the HDMI display or projector to the HDMI output of the DVI Audio to HDMI Adapter. The adapter encodes the digital audio onto the digital video signal to generate the HDMI signal.

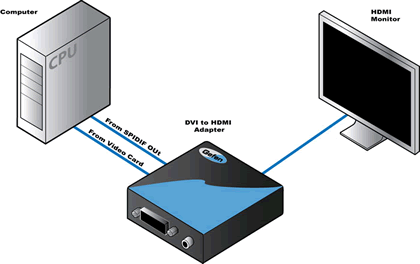

Gefen EXT-DVIAUD-2-HDMI Adapter Wiring Diagram
Gefen EXT-DVIAUD-2-HDMI Adapter Wiring Diagram

Gefen EXT-DVIAUD-2-HDMI Features:

  • Allows you to connect computers with DVI output and SPDIF to an HDMI display
  • Encodes digital audio onto the video signal for HDMI video and audio
  • Supports computer resolutions up to 1920x1200 at 60Hz
  • Supports HDTV resolutions
  • Supports resolutions up to 1080p, 2K, and 1920 x 1200
  • HDMI compliant
  • HDCP pass-through

Gefen EXT-DVIAUD-2-HDMI Package Includes:

  • DVI Audio to HDMI Adapter
  • (1) 5V Power Supply
  • (1) 6 ft DVI Cable
  • Users Manual

Gefen EXT-DVI-AUD-2-HDMI Specifications:

Mechanical
Height 1 in. (2.54 cm.)
Width 5 in. (12.7 cm.)
Depth4 in. (10.16 cm.)
Weight2 lbs. (0.9 kg.)
Power
Supply5V DC
Consumption10 watts (max)
Input Signal
Video1.2 volts p-p
DDC5 volts p-p (TTL)
Video Amplifier Bandwidth1.65 Gbps
Pixel Clock Frequency24Mhz - 165 Mhz
Connectors
HDMItype A (19 pin) female
DVIDVI-I (29 pin) female (digital only)
AudioSPDIF
