Gefen 4x1 HD Digital Audio Switch



Recommended replacement: SmartAVI HR-4PS
Alternative options: Contact Us

4 HDTV Sources + 1 HDTV Display = High Definition Convenience and Ease

The Gefen EXT-HD-441A 4x1 HD Digital Audio Switcher enables effortless source switching using a single high definition display. A simple and reliable solution, the 4x1 HD Digital Audio Switcher links any four HDTV sources with digital audio (DVD players and satellite set tops) to one HDTV display. It eliminates the need to disconnect then reconnect multiple HDTV sources, saving time by providing a fundamental tool that brings it all together behind the scenes. When all five devices (the display plus the four sources) are connected to the EXT-HD-441A switcher and powered on, you simply select which source you want to view on the display using the Switcher, the IR remote that comes with it or any universal remote you program to work with the Switcher.

Fully HDCP Compliant
HDCP (high definition content protection) is a standard encoded into the video signal to prevent it from being pirated. If a source device is HDCP coded and is connected to a HDTV display or projector without the proper HDCP decoding mechanism, the picture is relegated to “snow” or in some cases, very low (480P) resolutions of the images. In order to see HDTV with HDCP compliance, the source, the display and any device in between must be equipped with DVI connections that can enable HDCP decoding, such as the 4x1 HD Digital Audio Switcher.

To use with HDMI (high definition multimedia interface) equipment, Gefen supplies DVI to HDMI Adapters for the video only.

How the EXT-HD-441A works:

Simply connect your display to the Switcher’s DVI output and your digital audio device to the digital output. Then connect the four sources to the Switcher’s HDMI inputs using the HDMI cables and TOS link cables that come with the Switcher. Once the sources, the Switcher and the display are all powered on and connected, you simply select which source you want to view and listen.

Gefen EXT-HD-441A Features:

  • Saves money on hardware—no need to purchase multiple high definition displays for each source
  • Saves space—a single high definition display works with both DVD players and satellite set tops
  • Saves time—no need to disconnect and reconnect HDTV devices—everything is always connected and accessible
  • Maintains high resolution video—beautiful, sharp HDTV resolutions up to 1080P are easily achieved. 4x1 HD Digital Audio Switcher conforms with HDMI 1.0 specifications for resolutions up to 1920 x 1200.
  • No loss of quality—the integrity of the high definition signal is preserved throughout the transmissions using high caliber HDMI cables that ensure the signal is maintained
  • Operational flexibility—you can switch at the source, with the IR remote control or your own universal remote
  • Compatible with all HDMI-equipped, HDCP-enabled HDTV devices.
  • Easy to install and simple to operate

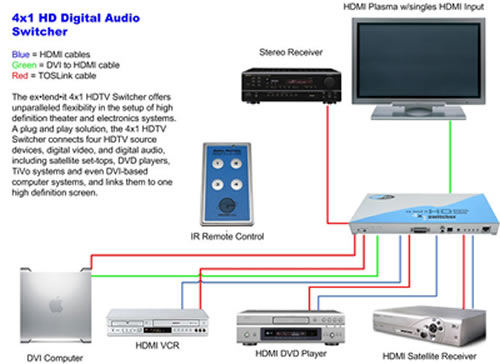

Gefen 4x1 HD Digital Audio Wiring

Gefen EXT-HD-441A Package Includes:

  • The 4x1 HD Digital Audio Switcher
  • RMT-4IR remote control
  • Four 6-foot HDMI cables
  • Four TOSLINK fiber optic cable
  • 5VDC power supply

Gefen EXT-HD-441A Specifications:

Height 1.25 in. (3.175 cm.)
Width 11.125 in. (28.257 cm.)
Depth 4.75 in. (12.065 cm.)
Shipping Weight 7 Lbs. (3.175 kg.)
Consumption 15 Watts (max.)
Supply 5VDC
Video Connector
Input HDMI 19-pin Type A
Output DVI-I (29 pin) female, Supports ONLY Digital Signals
Video Amplifier Bandwidth 1.65 GHz
Single Link Range 1080P/1920x1200
Vertical Frequency Range 60 Hz
