Gefen HD Male Scaler

EXT-HDMATE-S

$349.00

Discontinued
Recommended replacement: Gefen GTV-HIDEFS
Alternative options: Contact Us

The Gefen EXT-HDMATE-S is a HD Mate Scaler which allows you to upscale and switch your standard definition or high definition component sources to resolutions up to 1080p. Anything from set-top boxes, DVD players to the next generation of gaming consoles including the Xbox 360 and PS3 can be plugged into the HD Mate Scaler.

This Gefen HD Scaler supports two component sources and one DVI source all with digital TOSlink and analog audio inputs. The analog audio inputs will be outputted as analog audio and the digital TOSlink audio inputs will be outputted as digital TOSlink audio.  Easy to use on-screen menus accessible through the IR remote control allow for effortless setup and image adjustment to accommodate different viewing modes and screen sizes.

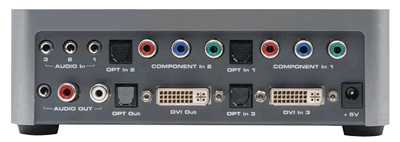

Gefen HD Mate Scaler Backside
Gefen HD Mate Scaler Backside

Gefen EXT-HDMATE-S Features:

  • Both digital and analog inputs are format converted and pixel re-scaled through the HD Mate Scaler. It outputs a large range of formats and resolutions that will easily match the native resolution/ format of your display to ensure highest picture quality.
  • DVI/HDCP compliant input: Operates up to 165Mhz (Up to UXGA @60Hz)
  • Supports digital HD output up to 1080p.
  • Integrated 8-bit triple-ADC/PLL.
  • Integrated DVI/HDCP compliant receiver.
  • Dual high quality scaling engines.
  • Dual 3-D motion video adaptive de-interlacers with smooth low-angle edge.
  • Automatic 3:2 pull-down & 2:2 pull-down detection and recovery.
  • High performance frame rate conversion engine.
  • The Proprietary Advanced Color Engine technology gives: Brilliant and fresh color, Intensified contrast and details, Vivid skin tone, Sharp edge, Accurate and independent color control
  • 3D noise reduction on analog inputs only.
  • Operates through on-screen OSD menu control and remote control.
  • DVI-I input and output accepts both analog and digital video
  • Aspect Ratio Control
  • Digital Audio Delay to match audio/video timing
  • Less then one frame delay allowing for gaming

Gefen EXT-HDMATE-S Package Includes:

  • HD Mate Scaler
  • (1) 6 ft DVI cable (M-M)
  • (1) 5V Power Supply
  • IR Remote control
  • User's Manual

Gefen EXT-HDMATE-S Specifications:

Mechanical
Height 2.125 in. (5.397 cm.)
Width 6.875 in. (17.462 cm.)
Depth 6.875 in. (17.462 cm.)
Shipping Weight 6 lbs. (3 kg.)
Power
Supply 12V DC
Consumption 12 watts (max)
Bandwidth
Digital Video Amplifier 1.65 Gbps
Component Video 350 Mhz
Input Signal
DDC 5 volts p-p (TTL)
Video 1.2 volts p-p
Connectors
Input/Output DVI DVI-I (29 pin) female
Component Video 3 RCA
Digital Audio optical TOSlink
Analog Audio mini-phone stereo 3.5mm
Single Link Range 1080p/1920 x 1200
