Gefen HDMI CAT5 MS Extreme Extender

EXT-HDMI-CAT5-MS

$549.00

Discontinued
Recommended replacement: Gefen EXT-UHD-CAT5-ELRPOL
Alternative options: Contact Us

The Gefen EXT-HDMI-CAT5-MS is a HDMI CAT-5 MS Extreme Extender which extends your HDTV display up to 300 feet away from your HDTV source using two CAT-5 cables. It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with a HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.  This Gefen HDMI Cat5 extender is fully HDCP compliant.

How this HDMI extender works:

The HDMI CAT-5 Extreme-S sender unit sits next to your computer, set-top box or DVD player source. Cables supplied with the HDMI CAT-5 MS Extreme connect your DVI or HDMI source to the send unit. The HDMI CAT-5 Extreme-R receive unit sits next to your HDTV display - up to 300 feet away. The display plugs into the back of the HDMI CAT-5 MS Extreme-R receiver unit. Two CAT-5 cables the sender and the receiver units to each other.

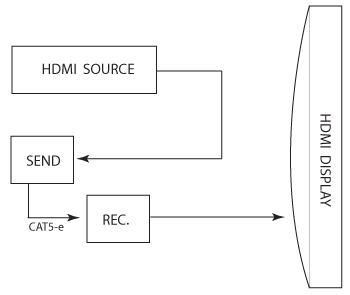

HDMI CAT5 Extreme Extender Wiring Diagram
HDMI CAT5 Extreme Extender Wiring Diagram


Gefen HDMI CAT5 Extreme Extender Features:

  • Extends high definition displays up to 150 feet from the source at 1080p
  • Extends high definition displays up to 300 feet from the source at 1080i
  • Improved compensation for cable skew
  • Eliminates equipment noise in the viewing environment
  • Supports resolutions up to 1080p, 2K, and 1920 x 1200
  • Audio and video are transmitted digitally over the CAT-5e cable for zero signal loss
  • HDMI compliant
  • HDCP compliant

Package Includes:

  • HDMI CAT-5 Extreme-S
  • HDMI CAT-5 MS Extreme -R
  • (1) HDMI to HDMI 6 foot cable
  • (2) 5VDC Power Supply

EXT-HDMI-CAT5-MS Specifications:

Mechanical
Height 1.25 in. (3.18 cm.)
Width 3.25 in. (8.26 cm.)
Depth 3.4 in. (8.6 cm.)
Weight 3 lbs. (1 kg.)
Power
Supply 5V DC
Consumption 20 Watts (max)
Input Signal
Video 1.2 volts p-p
DDC 5 volts p-p (TTL)
Connectors
HDMI type A 19 pin female
Link RJ-45 Shielded
Single Link Range 1080P/1920 x 1200
Video Amplifier Bandwidth 1.65 Gbps
