1:3 Splitter for HDMI 1.3

EXT-HDMI1.3-143

$349.00

Discontinued
Replaced by: Gefen EXT-HDMI1.3-144
Alternative options: Contact Us

 The Gefen 1:3 Splitter for HDMI 1.3 allows AV sources such as Blu-ray players and set-top boxes to be displayed on up to 3 High Definition Displays simultaneously. Two or more splitters may be connected together to create a larger distribution. This product supports HDMI 1.3 Deep Color and 1080p Full HD with 8 channels of multichannel digital audio for superior quality HDMI 1.3 signal distribution.

 Features:

  • Simultaneously displays a single Hi-Def source on up to three (3) HDTV displays without signal loss
  • Maintains sharp HDTV resolutions up to 1080p Full HD and 2K
  • 3DTV Pass-Through
  • EDID Management for rapid integration of sources and display devices.
  • Locking HDMI connectors
  • Supports the use of DVI sources and DVI displays with an HDMI-to-DVI converter cable or adapter
  • HDMI and HDCP compliant
  • 225 MHz (up to 12 bit YUV 444 @ 1080p)
  • Deep Color
  • Color Space Conversion
  • Dolby TrueHD and DTS-HD Master Audio
  • Lip-Sync

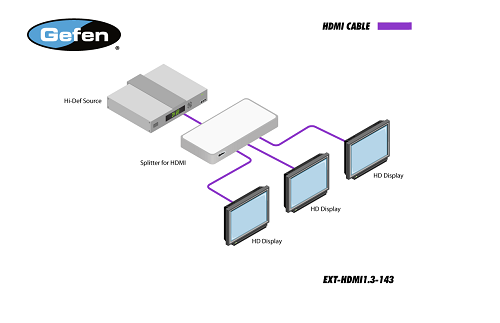

Diagram

diagram

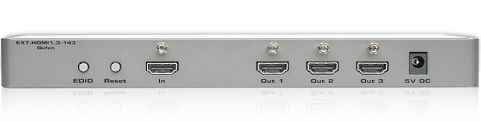

backview

Specifications:

  • Video Amplifier Bandwidth: 225 MHz
  • Input Video Signal: 1.2 Volts p-p
  • Input DDC Signal: 5 Volts p-p (TTL)
  • Supported Resolutions: 1080p, 2K
  • HDMI Connector: Type A ,19 pin female
  • Power Supply: 5V DC
  • Power Consumption: 13 W (max.)
  • Dimensions: 9.4" W x 1" H x 4.6" D
  • Shipping Weight: 3 lbs.
