Gefen Extender for HDMI 1.3 over CAT5 with Ethernet

EXT-HDMI1.3-CAT5-ELR

$699.00

Discontinued
Recommended replacement: Gefen EXT-UHD-CAT5-ELRPOL
Alternative options: Contact Us

The Gefen EXT-HDMI1.3-CAT5-ELR extends HDMI 1.3 and Ethernet up to 330 feet over one CAT-5 cable. The Extender for HDMI 1.3 over CAT5 with Ethernet extends your Hi-Def display with multi-channel digital audio at resolutions of up to 1080p60 up to 330 feet (100 meters) away from your HDMI or DVI-D source using one CAT-5 cable. It supports DVI-D when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components. This product also extends Ethernet and provides an IR back channel to control AV sources using the same CAT-5 cable extension. With the built-in IR Blaster, simply point the IR remote(s) at the display to control the Hi-Def sources as if they were located in the same room as the display.

How It Works
The Extender for HDMI 1.3 over CAT5 with Ethernet sender unit sits next to your set-top box or DVD player source. Cables supplied with the Extender connect your HDMI source to the sender unit. The Extender receiver unit sits next to your display - up to 330 feet away. The HDTV display plugs into the back of the Extender for HDMI 1.3 over CAT5 with Ethernet receiver unit. Only one CAT-5 cable connects the sender and the receiver units to each other. The Ethernet ports on both the sender and receiver are connected to standard network devices such as 100Base-T routers and hubs. Multi-channel digital audio is embedded into the HDMI signal (Dolby True HD / DTS Master Audio).

Note: The Extender for HDMI 1.3 over CAT5 with Ethernet is fully HDMI and HDCP compliant when both power supplies are used.

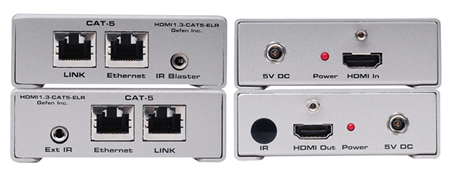

 Gefen EXT-HDMI1.3-CAT5-ELR Backview
Gefen EXT-HDMI1.3-CAT5-ELR Backview


Package Includes:

  • (1) HDMI1.3 CAT-5 ELR Sender unit
  • (1) HDMI1.3 CAT-5 ELR Receiver unit
  • (1) 6 ft HDMI locking cable
  • (2) 5V DC Locking Power Supplies
  • (1) User's Manual

Gefen EXT-HDMI1.3-CAT5-ELR Features:

  • Extends HDMI1.3 at 1080p60 up to 330 feet
  • Built-in IR Blaster allows IR remote control of source devices from remote viewing location
  • Supports resolutions up to 1080p and 1920 x 1200
  • Supports high bit-rate audio formats (Dolby TrueHD / DTS Master Audio)
  • Fully HDMI and HDCP compliant (when both power supplies are used)
  • 4x DIP switches allow EDID selection
  • Locking power connectors on unit and power supplies for secure connections

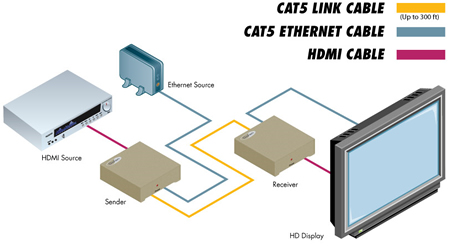

Gefen EXT-HDMI1.3-CAT5-ELR Application Diagram
Gefen EXT-HDMI1.3-CAT5-ELR Application Diagram


 Gefen EXT-HDMI1.3-CAT5-ELR Specifications:

Mechanical
Depth 3.4 in.. (8.6 cm.)
Width 3 .3 in. (8.4 cm.)
Height 1.3 in. (3.3 cm.)
Input Connector HDMI 19-pin Female type "A"
5V DC locking power supply connector
Link Connector (4) RJ-45 Shielded
Indicator LED Red power LED (Power is being received when ON)
Supports multi-channel digital audio Dolby True HD/DTS Master Audio
Fully HDMI and HDCP compliant when both power supplies are used
Power Consumption 5V DC @ 2A/10W max.
