Gefen Home Theatre Scaler PLUS



Recommended replacement: Video Adapters & Converters
Alternative options: Contact Us

The Gefen EXT-HOMETSP is a Home Theater Scaler Plus which allows you to upscale and switch your standard definition or high definition component and HDMI sources to resolutions up to 1080p. Anything from set-top boxes, DVD players to the next generation of gaming consoles including the Xbox 360 and PS3 can be plugged into the Home Theater Scaler.

The Gefen Home Theater Scaler Plus supports one component source with analog audio, one composite or S-video source with analog audio, and two HDMI sources with digital audio. The analog audio from the analog sources is digitized and outputted to the HDMI connection as well as the digital audio outs. The HDMI inputs also have separate digital audio inputs, so you can use DVI sources and separate digital audio and the Home Theater Scaler Plus will embed the digital audio into the HDMI output as well as the digital audio outs.  Easy to use on-screen menus accessible through the IR remote control allow for effortless setup and image adjustment to accommodate different viewing modes and screen sizes.

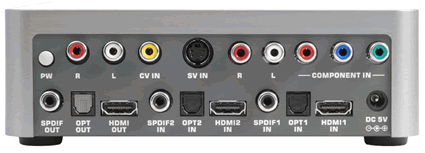

Gefen Home Theatre Scaler Plus Backside
Gefen Home Theatre Scaler Plus Backside

Gefen EXT-HOMETSP Features:

  • Both digital and analog inputs are format converted and pixel re-scaled through the Home Theater Scaler. It outputs a large range of formats and resolutions that will easily match the native resolution/ format of your display to ensure highest picture quality.
  • DVI/HDCP/HDMI compliant input: Operates up to 165Mhz (Up to UXGA @60Hz)
  • Supports digital HD output up to 1080p.
  • Integrated 8-bit triple-ADC/PLL.
  • Integrated DVI/HDCP/HDMI compliant receiver.
  • Dual high quality scaling engines.
  • Dual 3-D motion video adaptive de-interlacers with smooth low-angle edge.
  • Automatic 3:2 pull-down & 2:2 pull-down detection and recovery.
  • High performance frame rate conversion engine.
  • The Proprietary Advanced Color Engine technology gives: Brilliant and fresh color, Intensified contrast and details, Vivid skin tone, Sharp edge, Accurate and independent color control
  • Option to select Audio input from HDMI or TOSlink/SPDIF audio source.
  • 3D noise reduction on analog inputs only.
  • Operates through on-screen OSD menu control and remote control.
  • Aspect Ratio Control
  • Digital Audio Delay to match audio/video timing
  • Less then one frame delay allowing for gaming

Gefen EXT-HOMETSP Package Includes:

  • Home Theater Scaler Plus
  • (1) 6 ft HDMI cable (M-M)
  • (1) 5V Power Supply
  • IR Remote control
  • User's Manual

Gefen EXT-HOMETSP Specifications:

Height 2.125 in. (5.397 cm.)
Width 6.875 in. (17.462 cm.)
Depth 6.875 in. (17.462 cm.)
Shipping Weight 6 lbs. (3 kg.)
Supply 12V DC
Consumption 20 watts (max)
Digital Video Amplifier 1.65 Gbps
Component Video 350 Mhz
Input Signal
DDC 5 volts p-p (TTL)
Video 1.2 volts p-p
Input/Output HDMI type A 19 pin female
Analog Video 3 RCA Component
Analog Video 1 RCA Composite or 1 S-video
Digital Audio optical TOSlink and Coax SPDIF
Analog Audio 2 RCA
Single Link Range 1080p/1920 x 1200
