Gefen 4K Ultra HDMI 8x8 Matrix w/ HDCP 2.2
EXT-UHD-88
The Gefen 4K Ultra HD 8x8 Matrix for HDMI routes eight 4K sources to any combination of up to eight 4K displays.
- Resolutions up to 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 or 30Hz 4:4:4) are supported.
- This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.
- The Gefen 8x8 Matrix also supports 1080p Full HD, 1920 x 1200 (WUXGA), 3DTV, and Deep Color (up to 1080p resolution).
- Multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats are also passed through.
- The Gefen Syner-G software's Discovery and Show-Me features simplify initial IP configuration.
- Each source can be routed to any or all displays, using the front-panel push buttons or the included handheld IR Remote Control.
- The matrix can also be controlled via RS-232, Telnet, UDP, and Gefen's intuitive and easy-to-use web server interface.
- An easy-to-read, super-bright OLED front panel display indicates routing status and IP settings.
Product Features:
- Routes eight 4K sources to eight displays
- Supports resolutions up to 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz), 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space),1080p Full HD, and 1920x1200 WUXGA
- HDCP 2.2 and 1.4 compliant
- Supports 12-bit Deep Color (up to 1080p Full HD)
- 3D pass-through
- Lip Sync pass-through
- Push button controls for Routing and Status
- Advanced EDID Management for rapid integration of sources and displays
- Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included)
- RS-232 Serial interface for use with an automation control system
- IP control via Telnet, UDP, and the built-in web server interface
- IR remote control
- Gefen Syner-G software's Discovery and Show-Me features simplify initial IP configuration
- Field-upgradeable firmware via web server interface
- Can be placed on a shelf or mounted in a standard 19-inch wide rack
| Approvals | CE, UL |

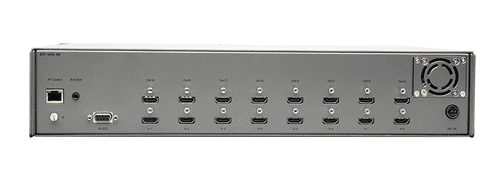

| Connectors | HDMI Input Connectors: (8) Type A 19-pin female, locking HDMI Output Connectors: (8) Type A 19-pin female, locking RS-232 serial port: (1) DB-9, female Ethernet (IP Control) Port: (1) RJ-45 |
| Environmental | Operating Temperature: +32 to +122 °F (0 to +50 °C) Operating Humidity: 5% to 90% RH, non-condensing Storage Temperature: -4 to +140 °F (-20 to +60 °C) Storage Humidity: 5% to 95% RH, non-condensing |
| LED Display | OLED, 2 rows, 20 characters per row |
| Power | DC Power Connector: (1) 4-pin, locking Power Supply: 24V DC Power Consumption: 39W maximum |
| Dimensions | Rack mounting requirements: Standard 19" rack, 2U high Dimensions (excluding rack ears and connectors, W x H x D): 17.25" x 3.5" x 15.75" (440mm x 89mm x 400mm) |
| Weight | Net Unit Weight: 20 lbs. (9.0 kg) |
UPC 888814593785
EAN 0888814593785
Question: Is this product reliable?
Answer: Thank you for your inquiry,
Gefen Audio-Video broadcast devices, like this EXT-UHD-88 4K Matrix, are specifically known for high quality and long lasting reliability in High-Def broadcast. I've also personally gotten positive feedback from previous customers who have purchased similar Gefen units for the purpose of reliability.
Answer: Thank you for your inquiry,
Gefen Audio-Video broadcast devices, like this EXT-UHD-88 4K Matrix, are specifically known for high quality and long lasting reliability in High-Def broadcast. I've also personally gotten positive feedback from previous customers who have purchased similar Gefen units for the purpose of reliability.
