Gefen 1:2 VGA Hub
Recommended replacement: Aten VS0102
Alternative options: Contact Us
The Gefen EXT-VGA-142N is a 1:2 VGA Hub. It allows computers with VGA graphic cards to be connected to one or two VGA compatible monitors or projectors. The VGA splitter relocates your computer to a safe and secure area, while allowing you to work in a quieter environment. It also lets you keep your VGA next to your computer, while adding a second VGA display such as a projector, another VGA monitor or plasma display.
The 1:2 VGA Hub is connected with a VGA (male to female) cable from the computer VGA graphic port to the VGA Splitter input. There are two VGA outputs. VGA output one is the primary connection and is used for the main display. VGA output two is connected to the second display.
Note: EDID is passed from output #1.

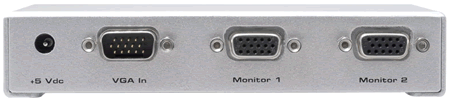

Gefen 1:2 VGA Hub Backview
Gefen EXT-VGA-142N Features:
- Connects computers with VGA graphics to two VGA compatible monitors or projectors
- Allows two VGA display monitors to be connected at the same time to the same video source
- Simultaneous display at local and remote locations

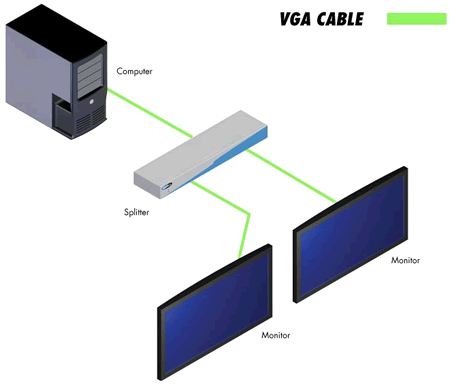

Gefen 1:2 VGA Hub Application Diagram
- 1:2 VGA Hub
- 6ft. VGA cable (M-F)
- 5v power supply
Gefen EXT-VGA-142N Specifications:
|Height||1 in. (3 cm.)|
|Width||2.6 in. (6.6 cm.)|
|Depth||2.6 in. (6.6 cm.)|
|Weight||2 lbs. (1 kg.)|
|VGA Amplifier Bandwidth||350 MHz|
|Supply||5 VDC (External)|
|Consumption||5 Watts (max.)|
|Input Video Signal||1.2 Volts p-p|
