2-Port VGA/Audio Splitter (450MHz)

VS0102

$80.00$62.02
Save $17.98
FREE Shipping on orders over $100

The ATEN VS0102 2-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to two output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440.

Furthermore, for complete systems integration, serial control is standard through the VS0102 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.

Product Features

  • One video input to 2 video outputs
  • Superior video quality - up to 1920 x 1440 @ 60Hz
  • Supports up to 450MHz bandwidth for high performance video
  • Long distance transmission - up to 65m *
  • Supports VGA, SVGA, UXGA, WUXGA, and multisync
  • EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
  • Expandable - provides up to 8 video displays
  • Features RS-232 serial port for command controls **
  • RS-232 chain control - use RS-232 commands to control cascaded devices via VGA cable
  • Supports stereo audio
  • Plug-and-play - no software installation required

Package Includes

  • 1x 2-Port VGA Splitter with Audio
  • 1x Power Adapter
  • 1x User Instructions

* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality
** The VS0102 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

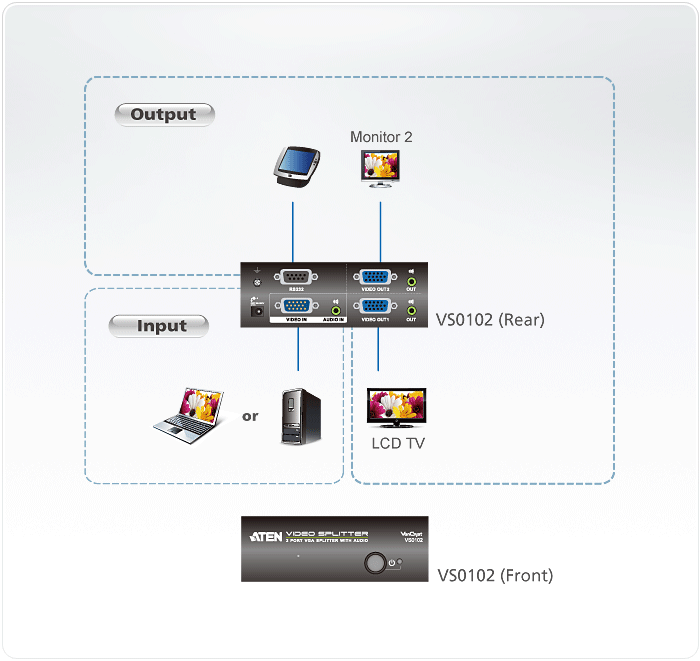

Product Use Diagram

Product Specifications

Video Input
Interfaces1 x HDB-15 Male
Impedance75Ω
Max Distance1.8 m
Video Output
Interfaces2 x HDB-15 Female
Impedance75Ω
Video
Max Bandwidth450 MHz
Max ResolutionUp to 1920 x 1440
Max DistanceUp to 30 m
Audio
Input1 x Mini Stereo Jack Female
Output2 x Mini Stereo Jack Female
Control
RS-2321 x DB-9 Female
EDID SettingsEDID Mode: Default / Port 1 / Auto
Power
Connectors1 x DC Jack
Consumption5.3 VDC, 0.8W
Environmental
Operating TemperatureVE829R: 32°-122°F (0°-40°C)
VE829T: 32°-104°F (0°-40°C)
Storage TemperatureVE829R: -4°-140°F (-20°-60°C)
VE829T: -4°-140°F (-20°-60°C)
HumidityVE829R: 0-80% RH, Non-Condensing
VE829T: 0-80% RH, Non-Condensing
Physical
HousingMetal
Weight1.01 lb (0.46 kg)
Dimensions L x W x H5.12 x 3 x 1.73 in. (13.00 x 7.61 x 4.40 cm)
UPC / EAN Barcode icon
UPC 672792003882
EAN 0672792003882
