CyberView Full HD LCD Console Drawer w/ Mac Keyboard - Touchpad



Replaced by: Cyberview F117
Alternative options: Contact Us

The F117me is a 1U Rackmount Mac LCD Console Drawer with Touchpad. This rackmount LCD console has features such as adjustable brackets and short-depth design.

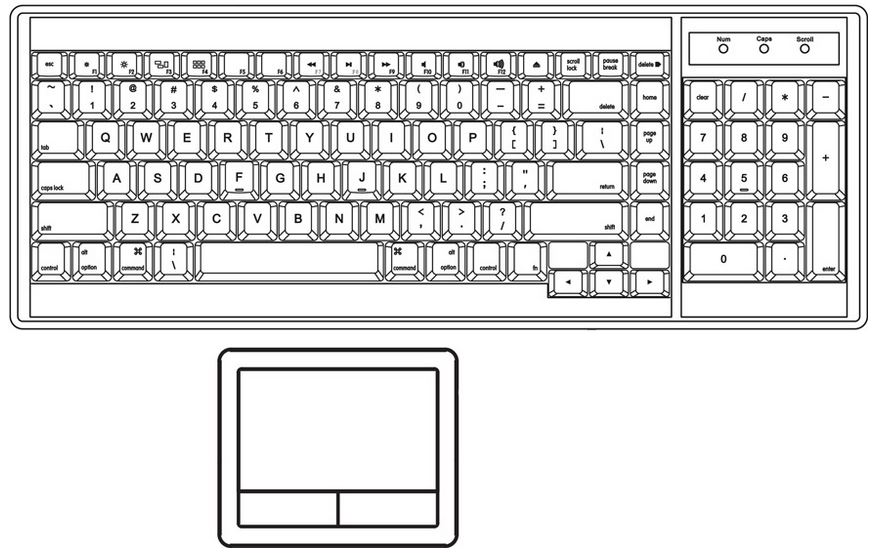

The F117me Keyboard

F117me Keyboard

AH F117me LCD Console Benefits

  • 1U 17" widescreen LCD console drawer with VGA and DVI-D
  • Support Full HD with 1080p resolution
  • 104-key Mac keyboard with touchpad
  • New enhanced aesthetics with molded front handle
  • Short depth design of 480mm ( 18.9" ) only
  • 2 post rack mounting available

AH F117me Specifications:

LCD Panel
Size 17.3" widescreen TFT
Max Resolution 1920 x 1080
Brightness400 (cd/m2)
Colors16.7 M, 8-bit
Contrast Ratio 600 : 1
Viewing Angle 160° x 140 °
Active Area382 x 215
Signal OutputVGA or DVI-D
Operating Temperature32 to 131°F (0-55°C)
Storage Temperature-4 to 140°F (-20-60°C)
Operating Humidity20~90%, non-condensing
Storage Humidity5~90%, non-condensing
Operating Altitude16,000 ft.
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Height1.73 in. (44mm)
Width17.4 in. (441.6mm)
Depth18.9 in. (480mm)
Weight24 lbs. (10.8kg)
Power InputAuto-sensing 100 to 240VAC, 50/60Hz
Power ConsumptionMax. 25W
SafetyFCC, CE
EnvironmentalRoHS2, REACH
Question: Is the Mac compatible trackpad "multitouch" like the Apple one is (supports gestures)?
Answer: Thank you for your inquiry,

The Touchpad in the CyberView F117 is not currently capable of "Multi-touch Gesturing".

That being said, you can integrate an optional 10-point Multi-touch Touch-screen into the unit which both supports Mac OS. You can add this option using the "Touchscreen Option" dropdown above.

You can also simply connect a touchpad mouse capable of multi-touch through the optional USB Hub port with the dropdown option "Front USB Port" above.

Please let us know if there is anything else we can help you with!
