1U 17" widescreen LCD console drawer with VGA and DVI-D

F117

$1,250.00$1,169.00
Save $81.00
Model: F117
  • + Compare Family
FREE Shipping on orders over $100

The F117 is a 1U 17" widescreen LCD console drawer with VGA and DVI-D. The keyboard is a 104 key notepad keyboard with touchpad or trackball.

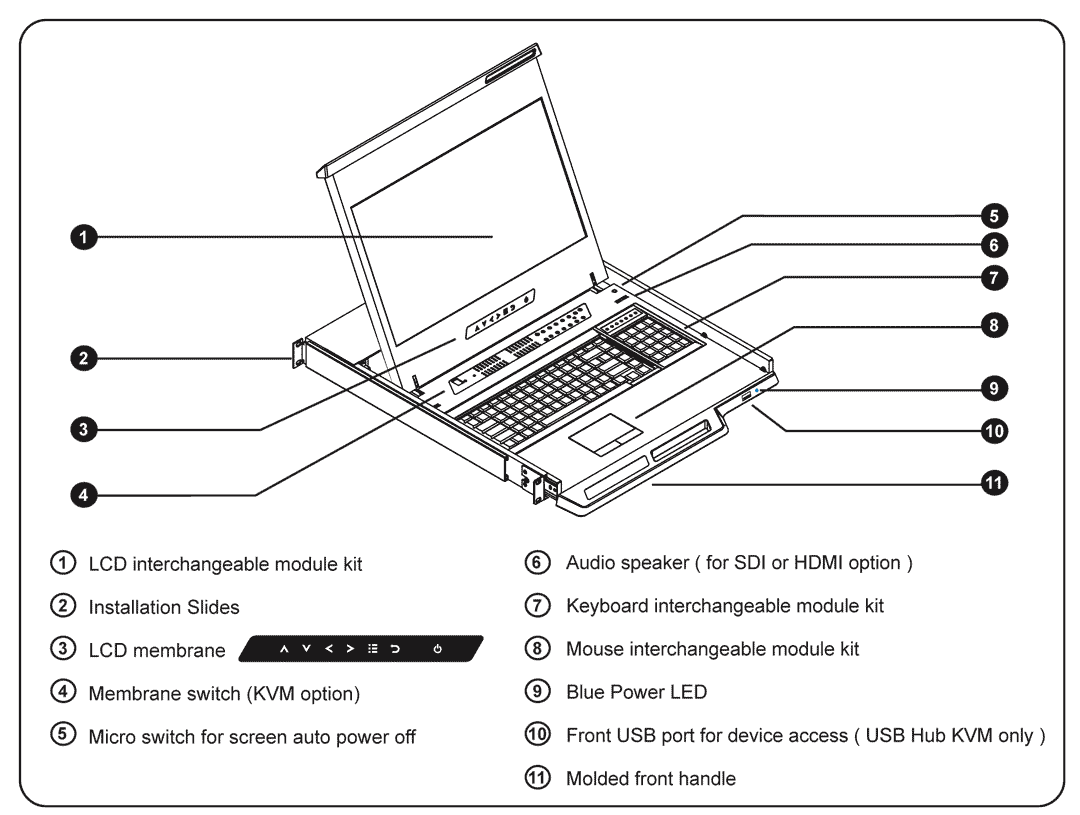

Austin Hughes CyberView F117 Diagram

F-117 Features & Benefits:

  • 1U 17" widescreen LCD console drawer with VGA and DVI-D
  • Support Full HD with 1080p resolution / 16.7M colors ( 8-bit )
  • New enhanced aesthetics with molded front handle
  • Short depth design of 460mm ( 18.1" ) only
  • 104-key keyboard with either touchpad or trackball
  • SUN Micro or MAC keyboard options available
  • Front USB port for device access ( USB Hub KVM only )
  • 2 post rack mounting available
  • UL, cUL, CE, FCC, & CCC Certified

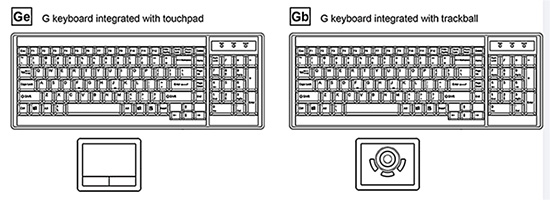

"Ne" style keyboard included with F117

Optional Configurations (Contact us for availability)

  • Front USB hub port for device access
  • HDMI 1.3 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio input & output
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple Integrated KVM Switch Options
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Additional languages supported
  • Touchscreen: Resistive 1-pt, Projective 10-pt

F117 Package Contents

CyberView F117 Package Contents
  • (1) F117 Console Drawer
  • (1) CX-6 6ft DVI-D console cable (or optional CB-6 6ft VGA console cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

F117 Resources

CyberView F117 Diagram F117 Brochure (PDF)
F117 Manual (PDF)
F117 Integrated KVM Manuals (Link)

F117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 18.1 in.
(44 x 442 x 460 mm.)
*Some options extend chassis depth to 18.9 in. ( 480 mm. )
Console w/ KVM 1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM
5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console 23.8 lbs. (10.8 kg)
Console w/ KVM 25.5 lbs. (11.6 kg)
Gross Weight
Single Console 34.8 lbs. (15.8 kg)
Console w/ KVM 38.5 lbs. (17.5 kg)
Mounting Distance
Single Console 18.5 ~ 27.6 inch
(470 ~ 700 mm)
Console w/ KVM 18.5 ~ 31.5 inch
(470 ~ 800 mm)
Console Ports
Video Input VGA + DVI-D single link
Video Option HDMI 1.4 / HDCP 1.4
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal ) 17.3"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m2) 300
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 1000 : 1
Viewing angle ( L/R/U/D ) 89/89/89/89
Viewing angle (H x V) 160° x 140°
Response time ( ms ) 25
Dot pitch ( mm ) 0.1989
Display area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 15,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 14W / Max. 45W
Power saving mode Max. 2W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC, CE & CCC certified
Safety UL, cUL, CE / LVD & CCC certified
Environment RoHS2 & REACH compliant

The F117 series is also known as the F-117. The F117e comes with an integrated touchpad, while the F117b comes with an integrated trackball.


F117 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView F117 with Matrix CAT6 KVM
Matrix CAT6 KVM
Local User Extended IP 8-Port 16-Port 32-Port
1 1 1 - F117-MUIP1613 F117-MUIP3213
1 2 1 - F117-MUIP1614 F117-MUIP3214
1 1 2 - F117-MUIP1624 F117-MUIP3224
1 1 0 - F117-MU1602 F117-MU3202
1 2 0 - F117-MU1603 F117-MU3203
1 3 0 - F117-MU1604 F117-MU3204

Austin Hughes CyberView F117 with Combo CAT6 KVM
CAT6 KVM
Local User Extended IP 8-Port 16-Port 32-Port
1 0 1 F117-UIP802 F117-UIP1602 F117-UIP3202
1 1 0 F117-U802 F117-U1602 F117-U3202
1 0 0 F117-U801 F117-U1601 F117-U3201

Austin Hughes CyberView F117 with DVI-D KVM
DVI-D KVM
Local User Extended IP 12-Port
1 0 0 F117-1201D

Austin Hughes CyberView F117 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM
Local User Extended IP 8-Port 16-Port 32-Port
1 1 1 F117-MIP813 F117-MIP1613 -
1 2 1 F117-MIP814 F117-MIP1614 -
1 1 2 F117-MIP824 F117-MIP1624 -
1 1 0 F117-M802 F117-M1602 -
1 2 0 F117-M803 F117-M1603 -
1 3 0 F117-M804 F117-M1604 -

Austin Hughes CyberView F117 with VGA DB-15 KVM
VGA DB-15 KVM
Local User Extended IP 8-Port 16-Port 32-Port
1 0 1 F117-IP802 F117-IP1602 -
1 1 0 F117-802 F117-1602 -
1 0 0 F117-S801 F117-S1601 -

Austin Hughes CyberView F117 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub
Local User Extended IP 8-Port 16-Port 32-Port
1 0 1 F117-IP802H F117-IP1602H -
1 1 0 F117-802H F117-1602H -
1 0 0 F117-801H F117-1601H -

Austin Hughes CyberView F117 with PS2 DB-15 KVM
VGA PS/2 KVM
Local User Extended IP 8-Port 16-Port 32-Port
1 0 0 F117-801 F117-1601 -
Question: How many years will the CyberView RKP117-S801 be available?
Answer: Thank you for your inquiry,

CyberView console drawers usually have a 5-7 year technology refresh or advancement cycle. You can also extend your warranty support up to 5 years. Let us know if we can provide a quote for you.
