1U 21" 1080p LCD Drawer w/ 8 Port IP CATx KVM


Save $281.00
Model: With CatX KVM
  • Console Only
  • With Standard KVM
  • With CatX KVM
  • + Compare Family
Users: 1 Local + 1 IP
USB Hub: No
FREE Shipping on orders over $100

The newest CyberView Rackmount LCD monitor F121 series easily adds side access to your rack environment. With the choice between a left facing monitor or a right facing monitor, as well as the ability to combine this powerful console drawer with an integrated KVM, the CyberView F121 series is sure to handle critical needs in datacenters or limited space server rooms and IT closets. In instances where a rack side is placed against a wall, the F121 allows the user to be positioned facing the wall comfortably rather than snugged up against it.

Features and Benefits

  • 1U 21" widescreen LCD console drawer w/ 8 Port CATx KVM and IP Access
  • Support Full HD with 1080p resolution
  • 104-key keyboard with either touchpad or trackball options
  • SUN Micro and Mac keyboard options available
  • New enhanced aesthetics with molded front handle
  • 6ft combo cable included
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more
  • Combo interface for PS/2 or USB input

Optional Configurations (Call for availability)

  • HDMI signal Input
  • SDI signal input
  • 12, 24, 48, 110, 125 V DC Power
  • Additional languages supported
  • Multiple Integrated KVM Options

Trackpad or Trackball Options

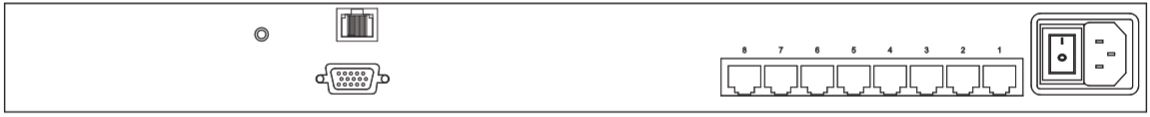

KVM Back

Cyberview F121 Specifications

Height1.73 in (44 mm)
Width17.4 in (441.6 mm)
Depth30.3 in (770 mm)
Form Factor1U rackmount on slide out rails
Weight34.1 lbs. (15.5 kg)
Operating Temperature32 to 122°F (0° to 50°C)
Storage Temperature23 to 140°F (-5° to 60°C)
Relative Humidity5-90% Non-Condensing
Shock10G Acceleration (11 ms duration)
Vibration5-500Hz 1G RMS random vibration
InputAuto-sensing 100 to 240VAC, 50 / 60Hz
ConsumptionScreen On: 62W; PowerSave: 34W
LCD Display
Diagonal Size21.5" Widescreen TFT
Max Resolution1920 x 1080
Brightness (cd/m2)250
Color Support16.7 M
Contrast Ratio1000:1
Viewing Angle170° x 160°
Display Area477 x 268 mm
Console PortVGA
