Belkin OmniView Secure 4-Port VGA KVM Switch



Recommended replacement: Adder AVSV1004
Alternative options: Contact Us

The Belkin F1DN104U, OmniView Secure 4-port KVM Switch was designed specifically for secure military and government installations.  The F1DN104U lets you control multiple USB computers from a single USB console. This product ensures the integrity of your data by safely switching among classified and unclassified computers. The Switch features a dedicated processor per computer port to keep each computer separate and secure at all times, and prevent data transfer among them. The OmniView Secure KVM Switch is listed by NIAP, and is pending NIAP Common Criteria validation to EAL 4.

*Belkin All-in-One KVM cables are required to connect your computers.

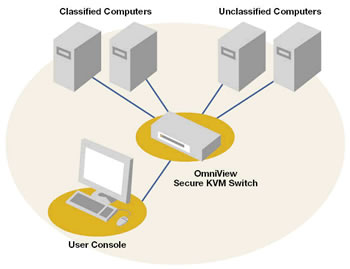

Belkin 4-Port Secure KVM Switch Diagram
Belkin 4-Port Secure KVM Switch Diagram

 OmniView Secure KVM Switch Features:

  • Dedicated processor per computer port- Keeps classified and unclassified computers separated; protects classified data and prevents data transfer among computers
  • No memory buffer- Prevents unintentional transfer of keystrokes or other data when switching between computers
  • No hot keys or on-screen display- Prevents data from being stored on KVM Switch
  • Non-reprogrammable firmware- Prevents tampering with KVM logic
  • Circuits soldered directly to circuit board- Prevents tampering with components
  • Tamper-evident tape on enclosure- Indicates that KVM Switch has been compromised; assures security when intact
  • Listed by NIAP and pending NIAP Common Criteria validation to EAL 4
  • Prevents data transfer between classified and unclassified computers
  • Features no hot keys or OSD to prevent data from being stored on KVM Switch
  • Non-reprogrammable firmware prevents tampering with KVM logic
  • Provides full support for USB computers, keyboards, and mice
  • Metal enclosure provides stability and allows Switch to be placed beneath monitor or other desk item
  • Compact design allows for desktop or 1U rack-mountable installation
  • Supports high video resolutions of up to 1920x1440 @ 75Hz
  • Dedicated port selectors allow you to switch easily from one computer to the next
  • LED indicators provide easy identification of which computer is being accessed

Belkin F1DN102U Specifications:

Height 1.75 in. (45 mm.)
Width 11 in. (279 mm.)
Depth 6 in. (150 mm.)
Weight 2.5 lbs. (1.1 kg.)
Enclosure Metal with plastic faceplate
Operating Temperature 32° to 104° F (0 to 40° C)
Storage Temperature -4° to 140° F (-20 to 60° C)
Requirements 5V DC, 2.5A (minimum) power adapter***
AC Input 100 to 240VAC
Supported Hardware
Monitors VGA
Keyboards/Mice USB
Video Resolution Up to 1920x1440 @ 75Hz
Operating Systems Windows 2000, XP, Server 2003, Mac OS X v10.3 and above, Red Hat Linux Desktop, Red Hat Enterprise Linux WS
No. of Users Supported 1
No. of Computers Supported 4
Port Selectors 4
LED Indicators 4
Console HDDB15 female (VGA), USB Type A
Computers HDDB15 male (VGA), USB Type B
Power DC jack
