Secure Dual-Monitor 4 port KVM Switch, 4K DisplayPort

F1DN104W

$1,399.99

Discontinued
Recommended replacement: SmartAVI K524E-SH
Alternative options: Contact Us

Belkin F1DN104W is a 4 Port, Secure, Quad-Display DisplayPort KVM Switch; switch two displays, a keyboard and mouse, audio and a CAC reader between up to four desktops or servers. The Belkin Secure DP KVM series is fully compatible with both 1.1 and 1.2 DisplayPort protocols; supporting resolutions up to UHD 3840_2160 @ 60Hz. True data path isolation for workstations in a highly secure environment provides the ultimate secure solution for government agencies. In order to assure the highest level of protection the Belkin Secure DisplayPort KVM is Common Criteria Validated to EAL4+.

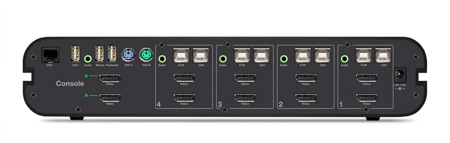

Belkin F1DN104W Product Rear
Belkin F1DN104W Rear


Belkin Secure DisplayPort KVM Features:

  • Future Proof: Fully compatible with both 1.1 and 1.2 DisplayPort protocols, supporting resolutions up to 3840x2160 @ 60Hz and 17.28 Gbit/s transfer @ 4-lane Link.
  • Protected DisplayPort Channel Switching: The Belkin Secure DisplayPort KVM switch includes security mechanisms to protect DisplayPort channels, preventing leakage of information between connected computers and the display(s).
  • Increased Reliability: Using a unique anti-tampering battery with an extremely low self-discharge rate, the life expectancy of the switch has been increased dramatically to over 15 years.
  • The Ultimate Security Solution: A host of security features including Unidirectional Data Paths, Dedicated Processors for Emulation, No Shared Resources and USB Port Protection. The Belkin Secure DisplayPort KVM is Common Criteria validated to EAL 4+ (Evaluation Assurance Level 4). The product also complies with NIAP Protection Profile 2.2.
  • Package Contents: Belkin Advanced Secure DisplayPort KVM, 12V 1.5A DC Power Supply (F1DN102P, F1DN104P), 12V 3A DC Power Supply (F1DN104W, F1DN104Q), Interchangeable Port Color Chips, Port-Naming Labels, User Manual

Note: Due to USB and Display Port signal limitations, the cable length cannot exceed 15 feet (4.6m), unless active extenders are used.

Belkin F1DN104W Specifications:

Physical
Dimensions (W x H x L)12.5 x 2.5 x 6.4 inches
Weight4.85 Lbs.
Made InUSA
EnclosureHeavy-duty extruded aluminum enclosure with metal faceplate
General
No. of Computers (ports)4
No. of Displays2
Max. Resolution3840 x 2160 @ 60 Hz
Switching ControlPort Selection Buttons, Desktop Controller Unit (DCU)
EmulationProtected DDC/EDID
Security AccreditationCommon Criteria EAL 4+ ALC_FLR.3
Warranty3 years
Product Life-Cycle15 years
Console Ports
Video(2) DisplayPort 1.2
Keyboard & Mouse(2) USB-A + (2) PS2 - either can be used
Audio3.5mm
Common Access Card (CAC)(1) USB type A
Desktop Controller Unit (DCU)Allows you to connect an optional DCU (sold separately) device to control your KVM switch from 50 feet away.
Server Interface Ports
Video(8) DisplayPort 1.2
Keyboard & Mouse(4) USB type B
Audio3.5mm
Common Access Card (CAC)(4) USB type B
Power & Environmental
PowerExternal 100-240VAC, 50/60Hz
Consumption3A (Max)
Operating Temp.32 to 104F (0 to 40 C)
Storage Temp.-4 to 140F (-20 to 60 C)
Humidity0 to 80% RH (No Condensation)
Question: Hi There. We are thinking of using Belkin F1DN104W to connect a Mac Pro and a Windows 7 PC for one monitor EIZO ColorEdge CG277.
Answer: Thank you for your inquiry. According to the manufacturer, this device will work with the following Operating systems:

- Windows 2000
- Windows XP (Home/Professional)
- Windows 2003 Server
- Windows 7
- Windows 8
- Windows Vista
- Red Hat Linux
- Other Linux distributions
- Mac OS X v10.3 and higher

As longing as the systems meet the other requirements (for example DisplayPort and USB connectivity) it should work. Please note however, due to the complexity and varied nature of individual user environments, we can not guarantee compatibility.

Question: What's the ECCN & Schedule B
Answer: Thank you for your inquiry,

See below for export information for the Belkin F1DN104W:

ECCN: 4A994
HS / HTS: 8471.80.1000

Apologies for the delay while we confirmed this information with the vendor.

Please let us know if there is anything else we can ever help you with!
