SmartAVI Point to Point DVI-D, USB, Audio & RS232 Singlemode Fiber Extender (9.32 mi)

FDX-3500S

$3,900.00$3,038.96
Save $861.04

Discontinued
Replaced by: SmartAVI FDX-3000-PRO
Recommended replacement: Adder XD150FX-SM
Alternative options: Contact Us

Model: Single-Mode

The SmartAVI FDX-3500 consists of a transmitter and receiver that extend KVM, DVI-D, audio and RS-232 signals.  It is a professional quality KVM capable of extending signals up to 15 Kilometers over a single singlemode fiber optic cable.

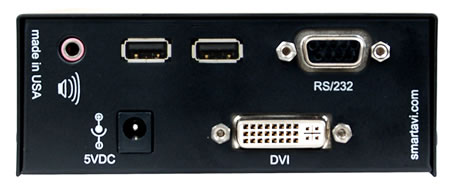

SmartAVI FDX-3500 Fiber Extender Back View
SmartAVI FDX-3500 Fiber Extender Back View


SmartAVI FDX-3500 Features:

  • Top Signal Quality at Maximum Extension over Singlemode Fibe (9.32 mi / 15 km)
  • Superior Image Quality at all Resolutions
  • Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz)
  • Customizable/Programmable DDC Table
  • Supports USB Keyboard/Mouse
  • Supports Stereo Audio
  • Supports DVI-D
  • Supports RS-232 Control from 3600bps to 115,000bps
  • Supports all USB keyboards Fully Transparent
  • Fiber Plug Type LC, Singlemode
  • Compatible With all Operating Systems
  • Compatible With all Major KVM Switches
  • Compact Metal Casing

Package Includes:

  • (1) FDX-TX3500 transmitter unit
  • (1) FDX-RX3500 receiver unit
  • (2) PS5VD3A power supply

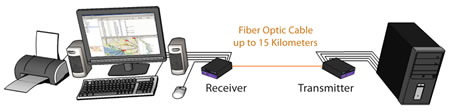

SmartAVI Point to Point Fiber Extender Application Diagram
SmartAVI Point to Point Fiber Extender Application Diagram

SmartAVI FDX-3500 Specifications:

Mechanical
Dimensions4.5 x 5.5 x 1.70 in.
(114.3 x 139.7 x 43.2 mm.)
Weight8 lbs. (4 kg.)
Video Data
Input InterfaceDVI-D Female (Single-Link)
Resolution1920x1200 at 60Hz
DDCInternal Table can be Re-programmed
Audio
Signal TypeStereo Audio
Bandwidth15MHz, 0dB
Impedance10K Ohm
Connector3.5mm Stereo Mini Female
RS-232Data up to 115,000bps
USBUSB Keyboard and Mouse Compliant
Fiber ExtenderDuplex LC Connector
Eye Safety

Designed to meet Laser Class 1 comply with En60825-1

Operates at a nominal wavelength of 1310nm

Distance 15km 1310nm FP
