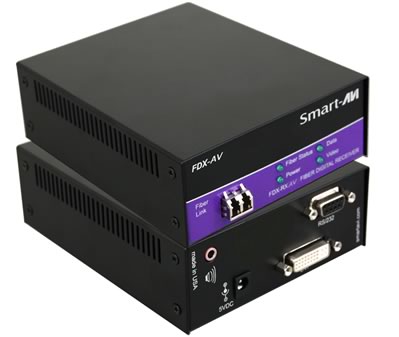

SmartAVI Fiber Optic Digital Signage and Multimedia Signal Extender
FDX-AVS
The SmartAVI FDX-AV is a Fiber Optic Digital Signage and Multimedia Signal Extender that Transmits Stereo Audio, DVI-D and RS-232 Data up to 1,400 Feet. The FDX-AV consists of a transmitter and receiver that extend DVI-D, audio and RS-232 signals. Equipped with DVI-D connectors for multi-mode signals, this product was created for professional digital signage and multimedia presentation needs.
SmartAVI FDX-AV Features
- Top Signal Quality at Maximum Extension Over Multi-mode Fiber (1,400 ft.)
- Superior Image Quality at all Resolutions
- Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz)
- Customizable/Programmable DDC Table
- Supports Stereo Audio
- Supports DVI-D
- Supports RS-232 Control from 300bps to 115,000bps
- Fiber Plug Type LC
- Compatible With all Operating Systems
- Compact Metal Casing

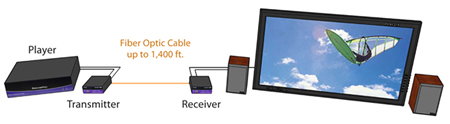

SmartAVI DVI Fiber Optic Extender Application Diagram
SmartAVI FDX-AV Specifications
| Mechanical | |
| Height | 1.70 in. (4.3 cm) |
| Width | 4.5 in. (11.4 cm) |
| Depth | 5.5 in. (14 cm) |
| Audio | |
| Signal Type | Stereo Audio |
| Bandwidth | 15MHz, 0dB |
| Impedance | 10K Ohm |
| Connector | 3.5mm Stereo Mini Female |
| Video Data | |
| Input Interface | DVI-D Female (Single Link) |
| Resolution | 1920x1200 at 60Hz |
| DDC | Internal Table can be Re-programmed |
| Connectors | |
| RS-232 | Data up to 115,000bps |
| DB-9 | Female for TX, Male for RX |
| Fiber Extender | Fiber 225m @ Multimode 62,5u 450m @ Multimode 50u Fiber-Plug type LC |
UPC 813280021357
EAN 0813280021357
