DVI-D, Stereo Audio, PS2, RS232, Singlemode Fiber Receiver



For upgrade or replacement options: Contact Us

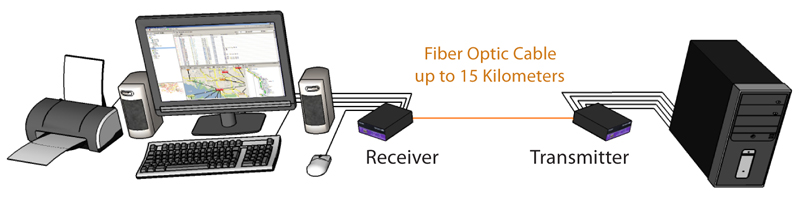

The FDX-2500 consists of a transmitter and receiver that extend KVM, DVI-D, audio and RS-232 signals. It is a professional quality KVM capable of extending signals up to 15 kilometers over a single singlemode fiber optic cable.
*Receiver Only


  • Corporate or Educational Presentations
  • Financial (Remote Servers/User Control)
  • Call Centers
  • Industrial (Long-Range Workstation Isolation)
  • Information Terminals/Kiosks
  • Airport Installations (Air Traffic Control/Passenger Information)
  • KVM Extension where Exceptional Quality of Signal is Crucial
  • Medical (Remote Operation Away from Sensitive/Magnestic Equipment)
  • Recording (for Large Studios where Editing/Mixing Stations are Compact and/or Require Complete Silence)

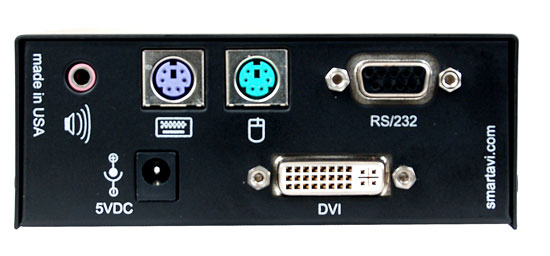

product back


  • Top Signal Quality at Maximum Extension Over Singlemode Fiber (15 Km)
  • Superior Image Quality at all Resolutions
  • Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz)
  • Customizable/Programmable DDC Table
  • Supports PS/2 Keyboard/Mouse
  • Supports Stereo Audio
  • Supports DVI-D
  • Supports RS-232 Control from 300bps to 115,000bps
  • Supports all PC/AT and PS/2 Keyboards Fully Transparent
  • Fiber Plug Type LC, Singlemode
  • Compatible With all Operating Systems
  • Compatible With all Major KVM Switches
  • Compact Metal Casing


SmartAVI FDX-2500 Receiver Specifications

Height 1.7 in. (4.3 cm)
Width 4.5 in. (11.43 cm.)
Depth 5.5 in. (13.97 cm.)
Input InterfaceDVI-D Female (Single-link)
Resolution1920x1200 at 60Hz
Audio Bandwidth15 MHz, 0db
RS-232Data up to 115,000 bps
UPC / EAN Barcode icon
UPC 813280021388
EAN 0813280021388
