USB-C Extended Docking Station - 4K 60Hz 4:4:4 extension up to 100m

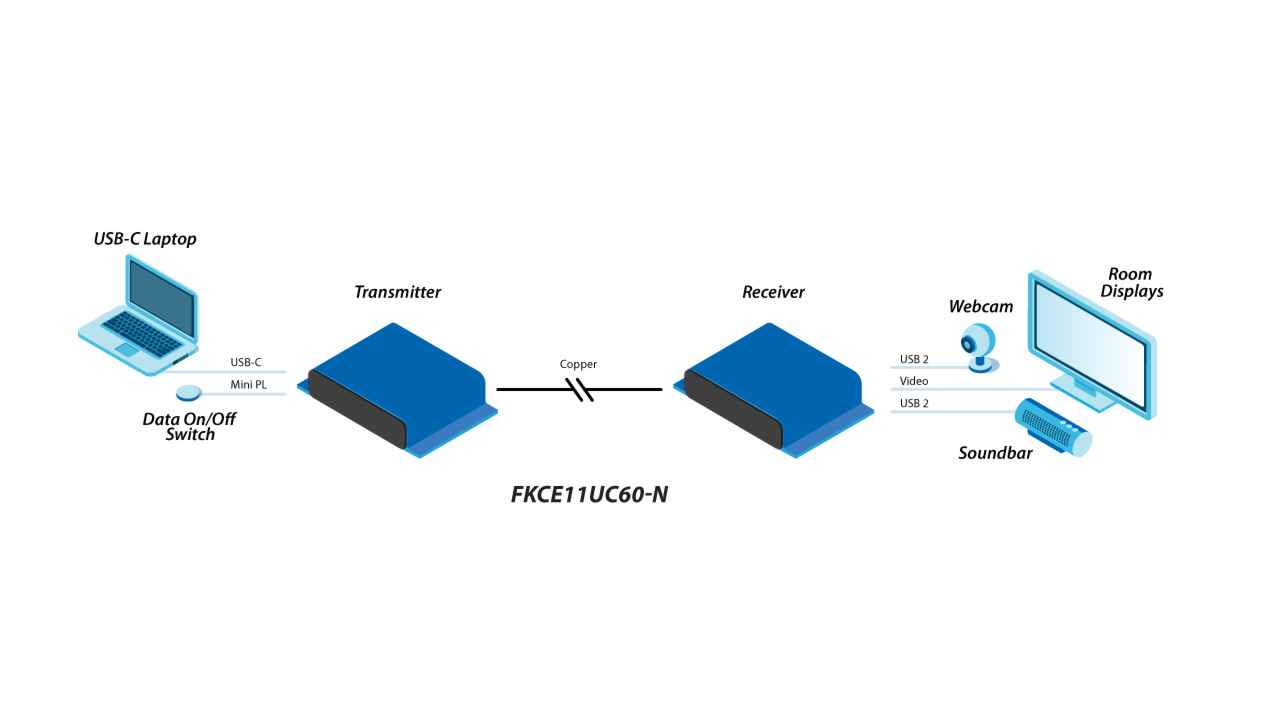

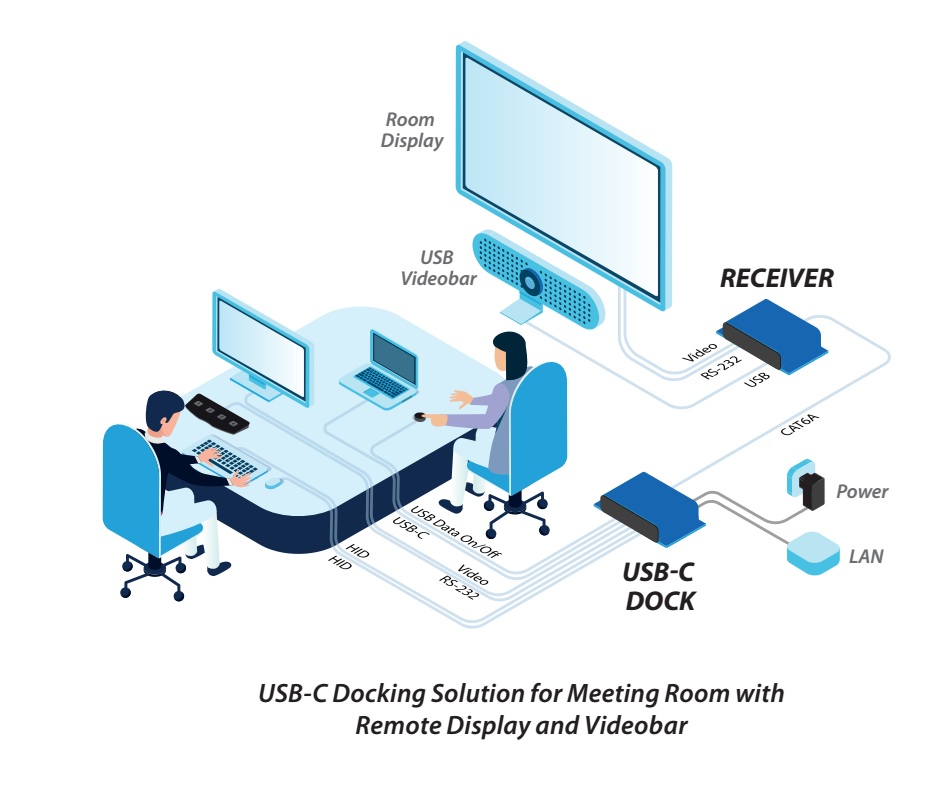

The High Sec Labs' FKCE11UC60-N USB-C extended docking solution combines a local docking solution for USB-C computers and laptops with a remote extension of video, HID and USB 2.0 signals. This solution is especially suited for executive offices and meeting rooms where a local docking solution connects with peripherals such as soundbars, videobars, cameras and displays located at a distance from the docking station.

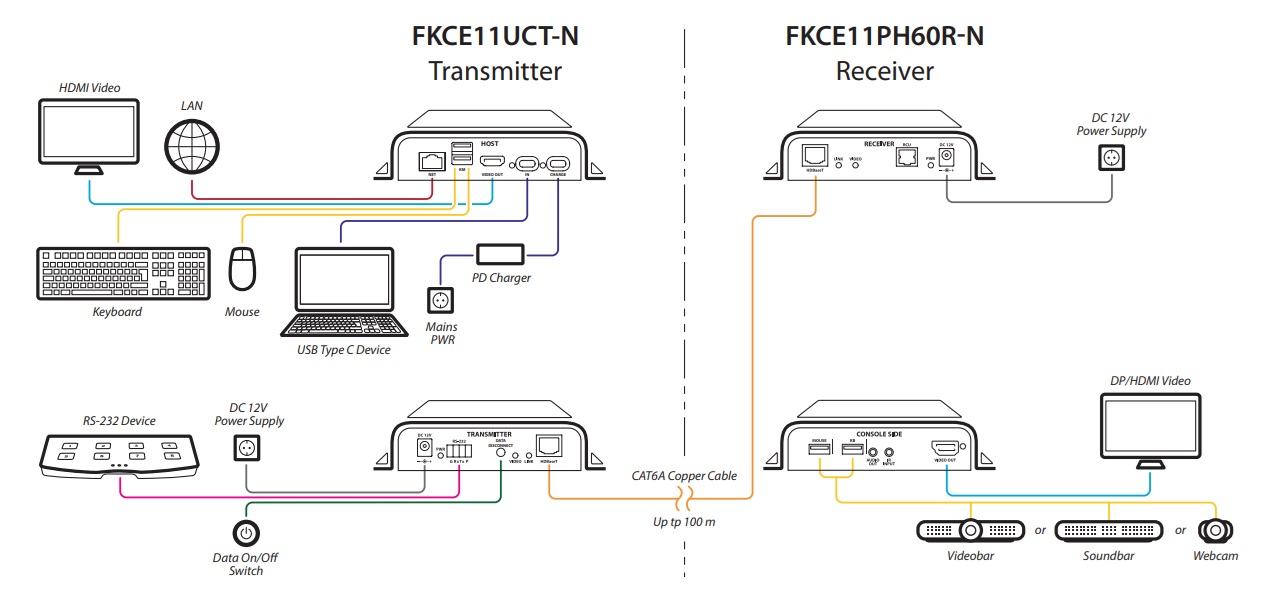

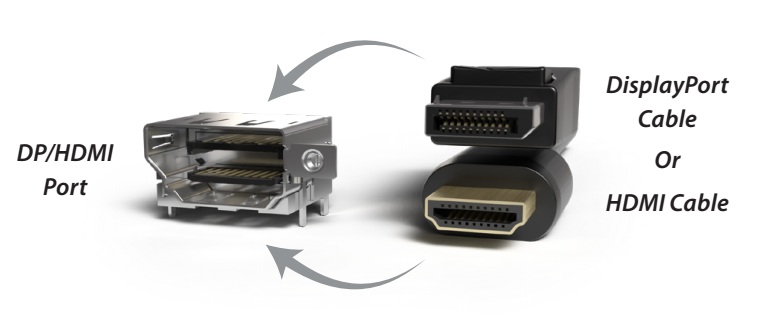

The extended docking station's transmitter includes 2 USB ports for computer peripherals along with a LAN interface, a single HDMI output connection, an RS-232 connection, an IR port, and an HDBaseT connection. The receiver supports a single monitor through a combo HDMI/ DisplayPort connection port, two USB ports for computer peripherals, an audio output connection, an RCU port, an IR port, and an HDBaseT connection.

FKCE11UC60-N Extended USB-C docking Station Features and Benefits

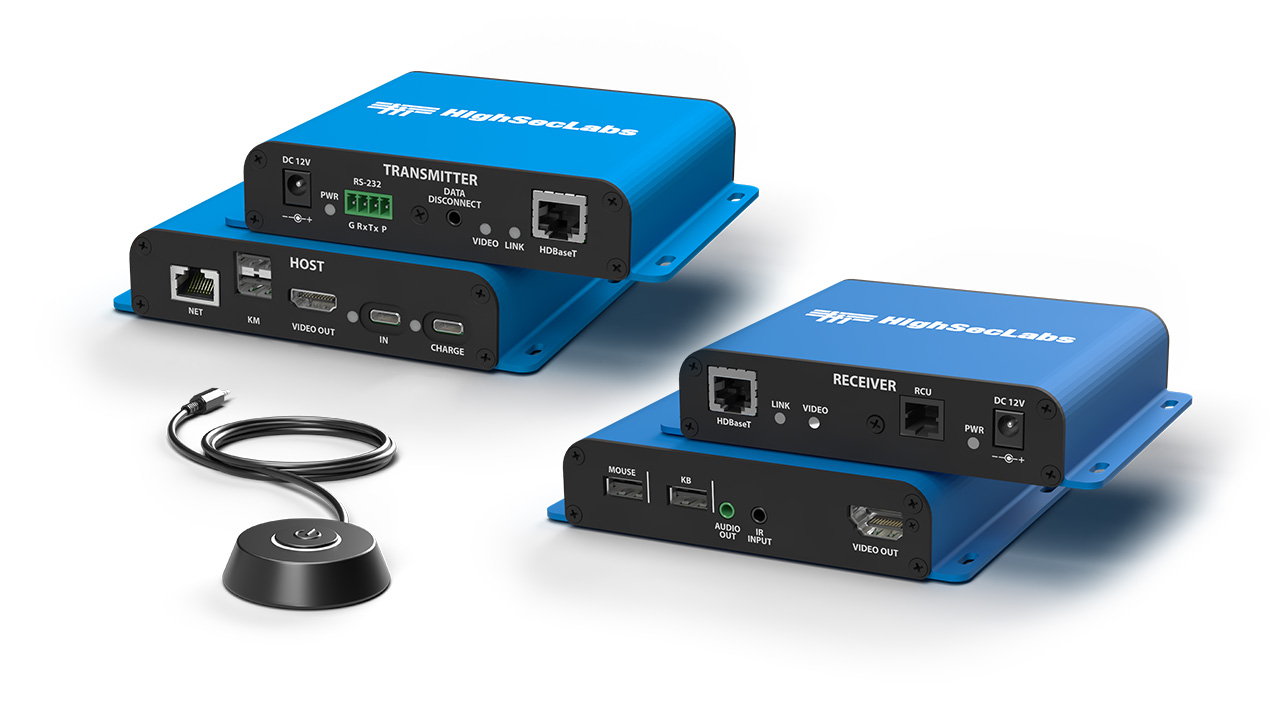

• Solution consists of a local docking station transmitter (FKCE11UCT-N) and a remote receiver (FKCE11PH60R-N)
• USB-C connectivity at docking station supports network, video, audio, HID and power delivery
• RS-232 connectivity for controlling remote peripherals
• USB data switch disconnects remote USB data streams from the dock.
  • Call directly from soundbar/videobar using their integrated client
  • Prevent soundbar/videobar from being mapped as a host peripheral
• Durable design supports mounting on or below any surface
• Power over Cable (POC) supported by docking station
• Full USB 2.0 extension supports webcams, soundbars and videobars
  • Please note: On the FKCE11PH60R-N Receiver, the USB A ports are labeled 'Mouse' and 'Keyboard.' However, when used in this configuration, these ports are compatible with any USB 2.0 peripheral.
• 4K 60Hz 4:4:4 extension up to 100m (Depends on the type and quality of the CATx cable)
• Made in USA: TAA and BAA compliance for highest supply chain security and quality

FKCE11UC60-N Package Contents

• (1) FKCE11UCT-N local USB-C docking station transmitter (TX)
• (1) FKCE11PH60R-N remote receiver unit (RX)
• (1) USB Disconnect Switch
• (1) 2-year standard warranty

FKCE11UC60-N Resources

Extended USB-C Docking Station Datasheet (PDF)
Extended USB-C Docking Quick Start Guide (PDF)
USB-C Docking Solutions brochure (PDF)

High Sec Labs FKCE11UC60-N Specifications

** Extension distance and video resolution is dependent on the type and quality of the CATx cable in use. CAT6A or better recommended

The FKCE11UC60-N USB-C Extended Dock Single Head 4K 60HZ Extender over 100m 100W Copper including local LAN and PD support and POC is also known as the CPN37155.
