10 Ft. CAT 5e 350mhz Snagless Patch Cable in Black

10 Ft. CAT 5e 350mhz Snagless Patch Cable in Blue

10 Ft. CAT 5e 350mhz Snagless Patch Cable in Green

10 Ft. CAT 5e 350mhz Snagless Patch Cable in Grey

10 Ft. CAT 5e 350mhz Snagless Patch Cable in Red

10 Ft. CAT 5e 350mhz Snagless Patch Cable in Yellow

10 Ft. CAT 5e 350mhz Assembled Patch Cable in Black

10 Ft. CAT 5e 350mhz Assembled Patch Cable in Blue

10 Ft. CAT 5e 350mhz Assembled Patch Cable in Green

10 Ft. CAT 5e 350mhz Assembled Patch Cable in Grey

10 Ft. CAT 5e 350mhz Assembled Patch Cable in Red

10 Ft. CAT 5e 350mhz Assembled Patch Cable in White

10 Ft. CAT 5e 350mhz Assembled Patch Cable in Yellow

10 Ft. CAT 5e 350mhz Snagless Patch Cable in White

10FT Computer Power Cord Extension, IEC320 C13 to IEC320 C14. Extends the length of your current power cable.

10ft Outlet Saver Power Extension Cord, NEMA 5-15R to NEMA 5-15P. Extends the length of your current power cable.

10ft Universal Power Cord, IEC320 C13 to NEMA 5-15P. Replacement power cord for PC, monitor, printer, scanner, etc.

10FT Universal right angle Power Cord, IEC320 C13 R/A to NEMA 5-15P. Right-Angle replacement power cord for PC, monitor, printer, scanner, etc.

Adder SFP-MM-LC-10G is a Multi-mode Fiber SFP module with LC connectors for use with the AdderLink INFINITY 4000 series. SFP-MM-LC-10G provides 10Gbps data rate up to 300 Meters away. SFP-MM-LC-10G modules require OM1, OM2, OM3 or OM4 multi-mode fiber cables.

AdderLink INFINITY ALIF 4000 units can be either connected directly to each other or via a high speed (10GB) network. ALIF 4000 units provide two SFP cage ports for interface. Currently, these connections must be Fiber Channel over Ethernet (FCoE). A single fiber link (via SFP port 3) is sufficient to provide full 4K operation between ALIF4000 units. Where required, a second fiber link can be used (via SFP port 4) to provide link redundancy. 10Gb Ethernet Fiber SFP modules with LC type connectors are suitable up to distances of 300 Meters (Multi-mode) or 10KM (Single-mode) cable length.

ALIF 4000 units additionally allow for the dual network interface ports to be used in parallel ('Teaming Operation') with the added benefit of link redundancy that can maintain operation in the event of a failed connection. Teaming offers immediate speed improvements in a one-to-one arrangement as well as in multicast installations.

Adder SFP-SM-LC-10G is a Single-mode Fiber SFP module with LC connectors for use with the AdderLink INFINITY 4000 series. SFP-SM-LC-10G provides 10Gbps data rate up to 10KM away. SFP-SM-LC-10G modules require OS1 or OS2 single mode fiber. SFP-SM-LC-10G modules require OS1 or OS2 single mode fiber.

AdderLink INFINITY ALIF 4000 units can be either connected directly to each other or via a high speed (10GB) network. ALIF 4000 units provide two SFP cage ports for interface. Currently, these connections must be Fiber Channel over Ethernet (FCoE). A single fiber link (via SFP port 3) is sufficient to provide full 4K operation between ALIF4000 units. Where required, a second fiber link can be used (via SFP port 4) to provide link redundancy. 10Gb Ethernet Fiber SFP modules with LC type connectors are suitable up to distances of 300 Meters (Multi-mode) or 10KM (Single-mode) cable length.

ALIF 4000 units additionally allow for the dual network interface ports to be used in parallel ('Teaming Operation') with the added benefit of link redundancy that can maintain operation in the event of a failed connection. Teaming offers immediate speed improvements in a one-to-one arrangement as well as in multicast installations.

14 Ft. CAT 5e 350mhz Snagless Patch Cable in Black

14 Ft. CAT 5e 350mhz Snagless Patch Cable in Grey

14 Ft. CAT 5e 350mhz Assembled Patch Cable in Black

14 Ft. CAT 5e 350mhz Assembled Patch Cable in Blue

14 Ft. CAT 5e 350mhz Assembled Patch Cable in Green

14 Ft. CAT 5e 350mhz Assembled Patch Cable in Grey

14 Ft. CAT 5e 350mhz Assembled Patch Cable in Red

14 Ft. CAT 5e 350mhz Assembled Patch Cable in Yellow

14 Ft. CAT 5e 350mhz Patch Cable in White

14 Ft. CAT 5e 350mhz Snagless Patch Cable in Blue

14 Ft. CAT 5e 350mhz Snagless Patch Cable in Green

14 Ft. CAT 5e 350mhz Snagless Patch Cable in Red

14 Ft. CAT 5e 350mhz Snagless Patch Cable in White

14 Ft. CAT 5e 350mhz Snagless Patch Cable in Yellow

14ft Universal Right Angle Power Cord, IEC320 C13 R/A to NEMA 5-15P. Right-Angle replacement power cord for PC, monitor, printer, scanner, etc.

ATEN CS19216
16-Port USB 3.0 4K DisplayPort KVM Switch

The ATEN CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch can efficiently access and manage up to 16 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. Users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz) the dual-interface console, presenting crystal-clear visuals.

Features

• One USB console controls up to sixteen DisplayPort interface computers and two additional USB 3.0 peripheral devices
• Cascadable to two levels - controls up to 256 computers
• Multi-Display feature - stack up to eight CS19216 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
• Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
• EDID Expert™ - selects optimum EDID mode for smooth power-up and highest quality display
• Supports a DisplayPort or HDMI video output - allows you to choose an appropriate video output and deploy console with flexibility
• Superior video quality - up to 4K DCI (4096 x 2160 @ 60Hz)
• Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Audio enabled - full bass response provides a rich experience for 2.1 channel stereo sound
• Supports HD audio
• Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
• Independent switching of KVM and USB peripheral focus
• Two-level (administrator/user) password authorization for enhanced security protection
• Broadcast mode - operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.
• Auto Scan Mode for monitoring all computers
• Multilingual keyboard mapping - supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
• Mac/Sun keyboard support and emulation
• Supports hot-plugging
• DisplayPort 1.2 compliant; HDCP 2.2 compliant
• Multiplatform support - Windows, Linux, Mac, and Sun
• Firmware upgradable
• Supports multimedia, wireless keyboards and mouse

Technical Specifications

1 Ft. CAT 5e 350mhz Assembled Patch Cable in Blue

1 Ft. CAT 5e 350mhz Assembled Patch Cable in Grey

1 Ft. CAT 5e 350mhz Snagless Patch Cable in Grey

1 Ft. CAT 5e 350mhz Assembled Patch Cable in Red

1 Ft. CAT 5e 350mhz Snagless Patch Cable in Black

1 Ft. CAT 5e 350mhz Snagless Patch Cable in Green

1 Ft. CAT 5e 350mhz Snagless Patch Cable in Yellow

1 Ft. CAT 5e 350mhz Assembled Patch Cable in Black

1 Ft. CAT 5e 350mhz Assembled Patch Cable in Green

1 Ft. CAT 5e 350mhz Assembled Patch Cable in Yellow

1 Ft. CAT 5e 350mhz Snagless Patch Cable in Blue.

1 Ft. CAT 5e 350mhz Snagless Patch Cable in Red

1ft Computer Power Cord Extension, IEC320 C13 to IEC320 C14. Extends the length of your current power cable

1FT Monitor Power Adapter Cable, NEMA 5-15R to IEC320 C14. Automatically turn on and off your monitor with computer system's main power switch; Requires aux power connector.

1ft Outlet Saver Power Extension Cord, NEMA 5-15R to NEMA 5-15P. Keeps your surge strip and UPS outlets free.

1 Ft. CAT 5e 350mhz Assembled Patch Cable in White

1ft Universal Power Cord, IEC320 C13 to NEMA 5-15P. Replacement power cord for PC, monitor, printer, scanner, etc.

2 Ft. CAT 5e 350mhz Patch Cable in Yellow

2 Ft. CAT 5e 350mhz Patch Cable in Grey

Austin Hughes Cyberview 6ft KVM Cable for connecting DVI USB sources to CyberView 2K KVM Switches.

• Resolutions up to 2K 60Hz
• Server-end: DVI-D + USB-A
• KVM port: HDMI + USB-B
• 6 feet

Austin Hughes Cyberview 6ft KVM Cable for connecting HDMI USB sources to CyberView 2K KVM Switches.

• Resolutions up to 2K 60Hz
• Server-end: HDMI + USB-A
• KVM port: HDMI + USB-B
• 6 feet

ATEN's CS1953 is a hybrid KVMP™ Switch integrating USB-C devices and DisplayPort PC into a desktop workstation. Taking a giant step forward from prior digital-interfaced KVM models, the CS1953 comes with a USB Type-C service that transports video, audio, data and additionally provides USB Power 3.0 for USB-C device charging. A single USB-C cable equips users with the ability to streamline the number of cables across their workstations. DisplayPort 1.2 standard compliant, the CS1953 carries remarkable video quality ranging up to 4K DCI (4096 x 2160 @ 60Hz) for exceptional image quality.

Aten CS1953 Specifications

3 Ft. CAT 5e 350mhz Assembled Patch Cable in Grey

3 Ft. CAT 5e 350mhz Snagless Patch Cable in Blue

3 Ft. CAT 5e 350mhz Snagless Patch Cable in Grey

3 Ft. CAT 5e 350mhz Assembled Patch Cable in Black

3 Ft. CAT 5e 350mhz Assembled Patch Cable in Blue

3 Ft. CAT 5e 350mhz Assembled Patch Cable in Green

3 Ft. CAT 5e 350mhz Assembled Patch Cable in Red

3 Ft. CAT 5e 350mhz Assembled Patch Cable in White

3 Ft. CAT 5e 350mhz Assembled Patch Cable in Yellow

3 Ft. CAT 5e 350mhz Snagless Patch Cable in Black

3 Ft. CAT 5e 350mhz Snagless Patch Cable in Green

3 Ft. CAT 5e 350mhz Snagless Patch Cable in Red

3 Ft. CAT 5e 350mhz Snagless Patch Cable in White

3 Ft. CAT 5e 350mhz Snagless Patch Cable in Yellow

3ft Computer Power Cord Extension, IEC320 C13 to IEC320 C14. Extends the length of your current power cable.

3ft Monitor Power Adapter Cable, NEMA 5-15R to IEC320 C14. Automatically turn on and off your monitor with computer system's main power switch.

3ft Outlet Saver Power Extension Cord, NEMA 5-15R to NEMA 5-15P. Extends the length of your current power cable.

3ft Universal Power Cord, IEC320 C13 to NEMA 5-15P. Replacement power cord for PC, monitor, printer, scanner, etc.

Adder SFP-SM-LC-4G is a Single-mode Fiber SFP module with LC connectors for use with the AdderLink INFINITY series or Adder XD150FX KVM Extender. SFP-SM-LC-4G provides 4.25Gbps data rate up to 4KM away.

AdderLink INFINITY ALIF 1002 and all ALIF Dual variants provide a choice of link connections. Each supports copper-based Gigabit Ethernet (1000Base-T) as well as Fiber Channel over Ethernet (FCoE). ALIF (1002) and ALIF Dual units provide a single system port (CATx) as standard on the right side of the front panel. An additional SFP cage port, located just to the left, allows simple plug-in transceivers suitable for your application; Optional Fiber SFP modules provide a 4.25 Gbps rate selectable with LC type connectors suitable for up to 400 Meters (Multi-mode) or 4KM (Single-mode).

ALIF Dual units additionally allow for the dual network interface ports to be used in parallel ('Teaming Operation') with the added benefit of link redundancy that can maintain operation in the event of a failed connection. Teaming offers immediate speed improvements in a one-to-one arrangement as well as in multicast installations.

5 Ft. CAT 5e 350mhz Snagless Patch Cable in Black

5 Ft. CAT 5e 350mhz Snagless Patch Cable in Blue

5 Ft. CAT 5e 350mhz Snagless Patch Cable in Green

5 Ft. CAT 5e 350mhz Snagless Patch Cable in Grey

5 Ft. CAT 5e 350mhz Snagless Patch Cable in Red

5 Ft. CAT 5e 350mhz Snagless Patch Cable in White

5 Ft. CAT 5e 350mhz Snagless Patch Cable in Yellow

5 Ft. CAT 5e 350mhz Assembled Patch Cable in Black

5 Ft. CAT 5e 350mhz Assembled Patch Cable in Blue

5 Ft. CAT 5e 350mhz Assembled Patch Cable in Green

5 Ft. CAT 5e 350mhz Assembled Patch Cable in Grey

5 Ft. CAT 5e 350mhz Assembled Patch Cable in Red

5 Ft. CAT 5e 350mhz Assembled Patch Cable in White

5 Ft. CAT 5e 350mhz Assembled Patch Cable in Yellow

Avocent HMX6150T are zero-U high performance transmitters that are part of the Avocent MX5000/6000/8000 series system product line. These high performance, IP-based KVM (Keyboard, Video, Mouse) dongles can be used in either extender or matrix mode and enable the use of standard IT infrastructure to extend computers away from the user environment.

Avocent HMX6150T Specifications

Avocent HMX6150T are zero-U high performance transmitters that are part of the Avocent MX5000/6000/8000 series system product line. These high performance, IP-based KVM (Keyboard, Video, Mouse) dongles can be used in either extender or matrix mode and enable the use of standard IT infrastructure to extend computers away from the user environment.

Avocent HMX6150T Specifications

6ft 3-Slot Notebook Power Cord, IEC320 C5 to NEMA 5-15P. Replacement power cord for notebooks.

6ft Computer Power Cord Extension, IEC320 C13 to IEC320 C14. Extends the length of your current power cable.

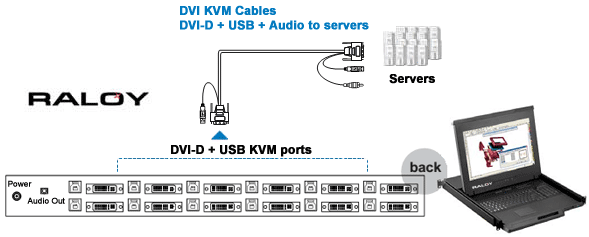

The Raloy CX-6A is a 6ft DVI-D/USB rack console cable with DVI-D + USB server side connections and DVI-D + USB (for USB Keyboard and Mouse) console side connections. This Raloy cable is specifically designed for use with the Raloy RF117HD rack console.

6ft Monitor Power Adapter Cable, NEMA 5-15R to IEC320 C14. Automatically turn on and off your monitor with computer system's main power switch; Requires aux power connector.

6ft Non-Polarized Power Cord, IEC320 C7 to NEMA 1-15P. Replacement power cord for notebooks and other non-polarized devices.

6ft Outlet Saver Power Extension Cord, NEMA 5-15R to NEMA 5-15P. Extends the length of your current power cable.

6ft Polarized 2-Slot Power Cord, IEC320 C7 to NEMA 1-15P. Replacement power cord for notebooks and other polarized devices.

6ft Premium Universal Power Cord, IEC320 C13 to NEMA 5-15P. Heavy-duty replacement power cord for PC, monitor, printer, scanner, etc; 14AWG 15amp.

6ft Shielded Universal Power Cord, IEC320 C13 to NEMA 5-15P. Shielded replacement power cord for PC, monitor, printer, scanner, etc.

6ft Universal 16awg Power Cord, IEC320 C13 to NEMA 5-15P. Replacement power cord for PC, monitor, printer, scanner, etc.

6ft Universal 16AWG Power Cord with extra outlet. Plug in your power cable without losing an outlet.

6ft Universal Power Cord, IEC320 C13 to NEMA 5-15P. Replacement power cord for PC, monitor, printer, scanner, etc.

6ft Universal Right Angle Power Cord, IEC320 C13 R/A to NEMA 5-15P. Right-Angle replacement power cord for PC, monitor, printer, scanner, etc.

Replacement part

7 Ft. CAT 5e 350mhz Snagless Patch Cable in Black

7 Ft. CAT 5e 350mhz Snagless Patch Cable in Blue

7 Ft. CAT 5e 350mhz Snagless Patch Cable in Green

7 Ft. CAT 5e 350mhz Snagless Patch Cable in Grey

7 Ft. CAT 5e 350mhz Snagless Patch Cable in Red

7 Ft. CAT 5e 350mhz Snagless Patch Cable in White

7 Ft. CAT 5e 350mhz Snagless Patch Cable in Yellow

7 Ft. CAT 5e 350mhz Assembled Patch Cable in Black

7 Ft. CAT 5e 350mhz Assembled Patch Cable in Blue

7 Ft. CAT 5e 350mhz Assembled Patch Cable in Green

7 Ft. CAT 5e 350mhz Assembled Patch Cable in Grey

7 Ft. CAT 5e 350mhz Assembled Patch Cable in Red

7 Ft. CAT 5e 350mhz Assembled Patch Cable in White

7 Ft. CAT 5e 350mhz Assembled Patch Cable in Yellow

ATEN CS19208
8-Port USB 3.0 4K DisplayPort KVM Switch

The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can efficiently access and manage 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. Users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz) in the dual-interface console, presenting crystal-clear visuals.

Features

• One USB console controls up to eight DisplayPort interface computers and two additional USB 3.0 peripheral device
• Cascadable to two levels - controls up to 128 computers
• Multi-Display feature - stack up to eight CS19208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
• Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
• EDID Expert™ - selects optimum EDID mode for smooth power-up and highest quality display
• Supports a DisplayPort or HDMI video output - allows you to choose an appropriate video output and deploy console with flexibility
• Superior video quality - up to 4K DCI (4096 x 2160 @ 60Hz)
• Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Audio enabled - full bass response provides a rich experience for 2.1 channel stereo sound
• Supports HD audio
• Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
• Independent switching of KVM and USB peripheral focus
• Two-level (administrator/user) password authorization for enhanced security protection
• Broadcast mode - operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.
• Auto Scan Mode for monitoring all computers
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Multilingual keyboard mapping - supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
• Mac/Sun keyboard support and emulation
• Supports hot-plugging
• DisplayPort 1.2 compliant; HDCP 2.2 compliant
• Multiplatform support - Windows, Linux, Mac, and Sun
• Firmware upgradable
• Supports multimedia, wireless keyboards and mouse

Technical Specifications

Adder AIMLIC-192 is a 192 End-point Infinity AIM Software License for Primary Units.

AIM Software Licenses require the ADDERLink INFINITY Manager A.I.M server. The A.I.M. management server is a control suite which transforms AdderLink Infinity extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co–operative sharing of computers and the multicasting of video to any destination.

Adder AIMLIC-192-BCK is a 192 End-point Infinity AIM Software License for Primary & Backup Units.

AIM Software Licenses require the ADDERLink INFINITY Manager A.I.M server. The A.I.M. management server is a control suite which transforms AdderLink Infinity extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co–operative sharing of computers and the multicasting of video to any destination.

Adder AIMLIC-288 is a 288 End-point Infinity AIM Software License for Primary Units.

AIM Software Licenses require the ADDERLink INFINITY Manager A.I.M server. The A.I.M. management server is a control suite which transforms AdderLink Infinity extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co–operative sharing of computers and the multicasting of video to any destination.

Adder AIMLIC-288-BCK is a 288 End-point Infinity AIM Software License for Primary & Backup Units.

AIM Software Licenses require the ADDERLink INFINITY Manager A.I.M server. The A.I.M. management server is a control suite which transforms AdderLink Infinity extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co–operative sharing of computers and the multicasting of video to any destination.

Adder AIMLIC-48 is a 48 End-point Infinity AIM Software License for Primary Units.

AIM Software Licenses require the ADDERLink INFINITY Manager A.I.M server. The A.I.M. management server is a control suite which transforms AdderLink Infinity extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co–operative sharing of computers and the multicasting of video to any destination.

Adder AIMLIC-48-BCK is a 48 End-point Infinity AIM Software License for Primary & Backup Units.

AIM Software Licenses require the ADDERLink INFINITY Manager A.I.M server. The A.I.M. management server is a control suite which transforms AdderLink Infinity extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co–operative sharing of computers and the multicasting of video to any destination.

Adder AIMLIC-96 is a 96 End-point Infinity AIM Software License for Primary Units.

AIM Software Licenses require the ADDERLink INFINITY Manager A.I.M server. The A.I.M. management server is a control suite which transforms AdderLink Infinity extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co–operative sharing of computers and the multicasting of video to any destination.

Adder AIMLIC-96-BCK is a 96 End-point Infinity AIM Software License for Primary & Backup Units.

AIM Software Licenses require the ADDERLink INFINITY Manager A.I.M server. The A.I.M. management server is a control suite which transforms AdderLink Infinity extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co–operative sharing of computers and the multicasting of video to any destination.

Adder AIMLIC-UNL is a Unlimited End-point Infinity AIM Software License for Primary Units.

AIM Software Licenses require the ADDERLink INFINITY Manager A.I.M server. The A.I.M. management server is a control suite which transforms AdderLink Infinity extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co–operative sharing of computers and the multicasting of video to any destination.

Adder AIMLIC-UNL-BCK is a Unlimited End-point Infinity AIM Software License for Primary & Backup Units.

AIM Software Licenses require the ADDERLink INFINITY Manager A.I.M server. The A.I.M. management server is a control suite which transforms AdderLink Infinity extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co–operative sharing of computers and the multicasting of video to any destination.

The Adder ALAV-PSU4 is a 4-way power distribution cable with 4Amp PSU. All AdderLink AV units are powered by an external 5V DC, 2A power supply with IEC power cable connection. A country specific power cord is provided. Alternatively 4 units can be powered using this 4amp power supply and the Adder ""Squid"" cable.

Adder ALAV-PSU4 Specifications:

The Adder ALAV-RMK-FASCIA is a Universal Fascia & Mounting Kit for the AdderLink AV Series extenders.

The Adder ALAV-RMK-FASCIA2 is a ALAV 200 series universal fascia mounting kit for 204T and 208T units.

The AdderLink AV Series ALAV100T transmitter delivers high video resolutions and quality audio up to 300m/1000 feet using standard CATx cable (x=5,5e,6,7). Designed for use in Digital Signage applications, the design of this extender allows for flexible distribution that can grow in line with project developments and ensures direct delivery of crystal clear communication to consumers at the point of decision.

Adder AV-Series KVM Extender System Diagram

Adder ALAV100T Features

• Extends high-resolution video and high fidelity audio up to 300m
• Local port on transmitter to connect local screen and speakers or for cascading other AdderLink AV 100T transmitter units
• Extends video and audio across a single CATx cable
• Extra fine video quality at resolutions up to 1600 x 1200 at 200m and 1280 x 1024 at 300m
• High fidelity click less digital audio (16bit, 44.1 kHz, stereo)
• Independent sharpness and brightness control
• DDC support
• Feed through / cascade port at transmitter
• Dual video and audio outputs at receiver
• Use stand alone or rack mount 16 modules across 3U
• Advanced spike suppression circuits for reliability in 'noisy' installations
• All metal construction
• Power / video indication confirm correct operation
• Adjustable cable equalization amplifiers
• Audio transmitted as digital signals to ensure high fidelity and low noise levels

Adder ALAV100T Specifications

The Adder ALAV102T is a highly compact AV transmitter that allow you to deliver professional quality AV content to two ALAV100 series receivers. The module connects to the video, USB, audio and RS232 ports of your computer and then connects via CAT 5, 5e or 6 cabling to the ALAV100 receivers, each of which can be located up to 300 meters from the module.

ALAV102T features RS232 control allowing you to switch nodes on and off using Adders display manager software, or any RS232 control application.

Please Note: this unit requires up to two compatible receivers - ALAV100R or ALAV101R

Adder ALAV102T Features:

• Resolutions and cable lengths: Typical resolutions achievable include: 720p: 1280 x 720 x 60Hz at 300m. 080p:1920 x 1200 x 60Hz at 100m.
• Audio: CD quality stereo audio is supported.
• EDID display information: The module contains a default set of EDID information that supports display resolutions up to 1920x1080 @ 60Hz. In addition, the module will check during power up whether alternative EDID information is available from the KVM switch or extender that is connected to port A. If required, you can also harvest and store new EDID information from your display (Read and Store).
• Power: The ALAV102T uses a USB port to derive its power from the host computer, dispensing with the need for a separate power supply, thus simplifying installation. The USB cable must always be connected to a USB port on the computer that is capable of providing up to 300mA.
• Small footprint: The ALAV102T has been designed to use minimal space around your host systems, allowing you to neatly locate the transmitter. moulded cables also reduce cable clutter, keeping the device easily accesable at all times.
• RS232 for disabling/re-enabling receiver connections: Using the onboard RS232 interface, individual transmission paths can be disconnected allowing remote screens to sleep, and wake on re-connection. This saves power and screen hours in use.
  Using a KVM over IP device such as the AVX5016, you can directly control up to 32 individual transmission paths from anywhere in the world.
• AV-KVM Port: ALAV102T is the first ADDERLink transmitter to feature AV-KVM ports. These ports allow you to connect directly to a KVM extender. This allows you to add additional devices such as touch screens and keyboards.

Adder ALAV102T-US Application Diagram


Adder ALAV102T Specifications:

The AdderLink AV Series ALAV104T transmitter delivers high video resolutions and quality audio up to 300m/1000 feet using standard CATx cable (x=5,5e,6,7). Designed for use in Digital Signage applications, the design of this extender allows for flexible distribution that can grow in line with project developments and ensures direct delivery of crystal clear communication to consumers at the point of decision.

Adder AV-Series KVM Extender System Diagram

Adder ALAV104T Features

• Extends a single high-resolution video and high fidelity audio signal to 4 different receivers
• Local port to connect local screen and speakers or to cascade to other AdderLink AV 104T transmitter units
• Extends video and audio across a single CATx cable
• Extra fine video quality at resolutions up to 1600 x 1200 at 200m and 1280 x 1024 at 300m
• High fidelity click less digital audio (16bit, 44.1 kHz, stereo)
• Independent sharpness and brightness control
• DDC support
• Feed through / cascade port at transmitter
• Dual video and audio outputs at receiver
• Use stand alone or rack mount 16 modules across 3U
• Advanced spike suppression circuits for reliability in 'noisy' installations
• All metal construction
• Power / video indication confirm correct operation
• Adjustable cable equalization amplifiers
• Audio transmitted as digital signals to ensure high fidelity and low noise levels

Adder ALAV104T Specifications

Adder ALAV200T Back

Adder ALAV200T Features

• Crystal clear digital audio quality at 44.1kHz Stereo
• Crisp, sharp, fully saturated video quality even at 1000ft
• Resolution up to 1600x1200@60Hz
• Compact size
• Compact rack-mountable chassis for large installations
• Receiver units with fully adjustable de-skew ensuring maximum video quality
• Cascade transmitters to support up to 128 VDUs from a single source
• Dual video/audio output on the receiver supports back to back monitors applications

Adder ALAV200T Diagram

ALAV200T Specifications

The Adder AdderLink ALAV201R is an audio video extender that delivers high resolution crystal clear video and CD quality digital stereo audio across installations up to 2000ft in width. It has full RS232 support video display panels that can be controlled and interrogated remotely.

The ALAV201R is supplied complete with Adder DM (Display Manager) software. This advanced application makes controlling VDU power, video and audio possible from the transmitter, as well as allowing you to interrogate video panel status and dynamics. Due to Adder's 'Open Architecture' policy, you can still use any 3rd party signage control system with the ALAV201R.

Adder ALAV201R Back

Adder ALAV201R Features

• Crystal clear digital audio quality at 44.1kHz Stereo
• Crisp, sharp, fully saturated video quality even at 1000ft
• Resolution up to 1600x1200@60Hz
• Compact size
• Compact rack-mountable chassis for large installations
• Receiver units with fully adjustable de-skew ensuring maximum video quality
• Cascade transmitters to support up to 128 VDUs from a single source
• Dual video/audio output on the receiver supports back to back monitors applications

Adder ALAV201R Diagram

Adder ALAV201R Specifications

The Adder AdderLink ALAV208T (transmitter only) is an audio video extender that delivers high resolution crystal clear video and CD quality digital stereo audio across installations up to 2000ft. It has full RS232 support video display panels that can be controlled and interrogated remotely.

The ALAV208T is supplied complete with Adder DM (Display Manager) software. This advanced application makes controlling VDU power, video and audio possible from the transmitter, as well as allowing you to interrogate video panel status and dynamics. Due to Adder's 'Open Architecture' policy, you can still use any 3rd party signage control system with the ALAV208T.

Adder ALAV208T Back

Adder ALAV208T Features

• Crystal clear digital audio quality at 44.1kHz Stereo
• Crisp, sharp, fully saturated video quality even at 1000ft
• Resolution up to 1600x1200@60Hz
• Compact size
• Compact rack-mountable chassis for large installations
• Receiver units with fully adjustable de-skew ensuring maximum video quality
• Cascade transmitters to support up to 128 VDUs from a single source
• Dual video/audio output on the receiver supports back to back monitors applications

Adder ALAV208T Diagram

Adder ALAV208T Specifications

Adder's ALD-IPEPS is a powerful and flexible Digital KVM over IP product. This unit allows up to 16 user profiles, with defined access rights, and 4 user accessibility at any one time. Contained within a palm sized unit, the AdderLink Digital ipeps enables computer access from anywhere in the world, securely and remotely via the internet or network.

Real VNC client software provides secure, high performance with KVM over IP applications and supports both IPV4 and IPV6 addresses. Free of the limitations of HTTPS, Real VNC greatly enhances video performance. The AdderLink Digital ipeps accepts video signals from computers equipped with DVI, DisplayPort DP++ (Dual-Mode), HDMI, and USB mouse/keyboard control with virtual media. The AdderLink Digital ipeps can be used as a remote gateway into the Adderlink Infinity system by connecting to an AdderLink Infinity reciever unit. This will allow logged in users to access any computer on the Adderlink Infinity network including mobile devices. The Digital ipeps gives full control even during boot up, BIOS level, and even non-operational devices. The AdderLink Digital ipeps has an RS232 port which allows communication to devices like power switches, allowing remote rebooting of the target computer.

The unit has also been engineered to act as a conduit to transfer data from remote users to controlled computers. Files can be transferred via IP onto the Digital ipeps and onto the target computer by means of a USB virtual media port. The AdderLink Digital ipeps can either be powered from two USB cables or independently from an external 5V power source (purchased separately).

Adder ALD-IPEPS Layout

 FULL MANUAL TALK TO AN EXPERT

Adder ALD-IPEPS Features

• Access computer from anywhere in the world
  via RealVNC or Web browser

  ALD-IPEPS enables you to remotely access and control your computing hardware remotely using your standard IP network (WAN or LAN) via a web browser. ALD-IPEPS also acts as a RealVNC server with RFP 3.3 support, that can be accessed via Real VNC client software.

• Independent operation
  - BIOS-level access

  Unlike software based solutions, the AdderLink ALD-IPEPS gives full control of a computer even during boot up, BIOS level or computer crash states. The AdderLink ALD-IPEPS will work even if the controlled devices are not operational.

• 'Zero-U' Palm sized

  Increasing numbers of computers are being used in remote, stand alone applications such as ATMs and digital signage devices. The ALD-IPEPS incredibly small palm size makes it perfect for remote management and control of dispersed computers, meaning that many tasks that would have required an expensive site visit can now be done from anywhere.




• User access management

  The free ADDER.NET Enterprise Management Software provides a centralized, secure and intuitive user access management interface, where up to sixteen user profiles with defined access rights can be created. Each user station can be granted different access permissions on a per computer basis including View only, Shared, Exclusive or Private.

• Digital video input

  The Adderlink Digital ipeps will accept any single link DVI input up to 1920x1200 resolution. It can also be attached to computers with DisplayPort DP++ (DualMode) or HDMI with converter cables enabling access to any computer with a digital video interface.

•

  High performance video over VNC

  The AdderLink Digital ipeps can be accessed by a standard web browser but for superior graphical performance, a Real VNC viewer should be used. Free of the limitations of HTTPS, Real VNC greatly enhances video performance.




• USB Virtual media support

  To transfer files from remote users to controlled computers, the AdderLink Digital iPeps has been engineered to act as a conduit through which data can be passed. Files can be transferred via IP onto the Digital iPeps and onto the target computer by means of a USB virtual media port.

• Audio-via-IP extension

  The AdderLink Digital iPEPS enables CD quality audio signals to be fed from the target computer to the remote user via IP. Essential for administration tools and applications where sound or audible alarms are used.

•

  Enterprise-grade security
  with IPV6 address support

  Adder ALD-IPEPS units have built-in security measures compliant with universal enterprise grade security standards, inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication, further enhanced by the use of Real VNC that allows for the creation of ciphered user communications. Supports both IPV4 and IPV6 addreses.




• Make any KVM switch remotely accessible!

  Adder ALD-IPEPS an be used as a front end for almost any Adder or third-party KVM switch. This allows access to your KVM switch remotely over IP - essentially making any standard KVM switch device a KVM-Over-IP switch.

• Multi-point KVM / AV matrix

  Four extended remote users can simultaneous access each ALD-IPEPS unit. With 16 definable seperate user profiles, multiple ALD-IPEPS units can be used to create an extensive IP-based KVM switching matrix using only individual access points.

• Remote gateway to AdderLink Infinity

  The AdderLink Digital ipeps can be used as a remote gateway into the Adder Infinity system by connecting it into an AdderLink Infinity receiver unit. This will allow users to access any computer on the Adderlink Infinity network with their normal username and passwords from any location including mobile devices.



•

  Multi-platform support

  Adder ALD-IPEPS supports all known software and computer platforms with PS/2, USB and Sun keyboard and mouse interfaces, including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare, etc.

• Power control through RS232 serial interface

  The AdderLink Digital ipeps has an RS232 port to allow communication to devices like power switches, allowing remote rebooting of the target computer.

•

  Choice of power source

  Adder ALD-IPEPS can be powered from two USB cables, or independently from an optional included external 5V power source. Alternatively, the Squid Power Cable (CAB-XSERIES-4WAYPWR) also allows up to four ALD-IPEPS units to be powered externally from a single power adapter.




• High density rack mount option

  An optional chassis (X-RMK-CHASSIS) allows up to 16 (ALD-IPEPS) units to be housed in 2U of rack space.

Adder ALD-IPEPS Specifications

iPEPS Digital is also known as ALD-IPEPS.

The ADDERLink DV100 (ALDV100P) is an easy to install, highly compact video extender system that can transmit an HD video stream over a single CATx cable. The extender system is powered by a single USB connection on the transmitter (TX) unit. This allows you to keep your media playback hardware in a secure and temperature controlled environment. The DV100 ensures that your valuable systems are kept safely away from unsecure environments while maintaining a consistent user experience.

The ALDV100P is suitable for a wide range of applications, especially for the Digital Signage (DOOH - Digital Out-Of-Home) and Audio Visual (AV) industries.

Connecting your AdderLink DV100t

 Manual / Quick Start TALK TO AN EXPERT

Adder ALDV100P Features

• Extend video, audio, and power over a single CatX cable

  The ALDV100P extends video, audio, and power over a single CATx cable up to 164 feet (50 meters). *The actual achievable extension distance is dependent upon the CATx cable type used and the number of connection breaks for patch panels and wall plates

• Pixel perfect digital video + HDCP support

  The ALDV100P HDMI video extension system is visually lossless with no visible artefacts or latency allowing you to be certain of quality up to 1080p or 1920x1200 @ 60Hz. High-bandwidth Digital Content Protection (HDCP) support prevents the interruption of HDMI data flow.

• Digital audio support

  The ALDV100P supports high quality eight channel digital surround-sound audio (LPCM 7.1) from the connected HDMI source (HDMI-embedded audio).




• No external power supplies required - Highly energy efficient

  The ALDV100P is powered over a standard USB socket and does not require an external PSU. Highly energy efficient design uses less than an eighth of the power required by some competing systems.

•

  Intelligent EDID management

  The ALDV100P extender has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

• Perfect digital signage & video wall companion

  With locking connectors and no power supplies required at the receiver (line-powered), the DV100 makes a perfect video wall companion and ideal for broadcast in public environments.




• Plug and Play

  The AdderLink ALDV100P extender is delivered in a zero config state so you can plug in the units and start working with them straight away. There is no need for drivers or software to be installed.

•

  Built to last - Robust yet lightweight

  Adder Technology have a well-earned reputation for creating products that perform well and stay the course. AdderLink DV100 is no exception and features tough, yet lightweight ABS enclosures to ensure they can easily withstand environmental pressures. The internal components and external connectors too are selected for their reliability in addition to their performance characteristics.

• Mix-n-match

  Interchangeability amongst the ADDERLink DV family of extenders allows ALDV100T HDMI transmitters can be connected to ALDV120 DVI-D receivers and vice versa.

Adder ALDV100P Specifications

ALDV100P is also known as the DV100, DV100-HDMI, ALDV100P-US and ALDV100P-USA.

The ADDERLink DV100R (ALDV100R) is an easy to install, highly compact video extender system that can transmit an HD video stream over a single CATx cable. The extender system is powered by a single USB connection on the transmitter (TX) unit. This allows you to keep your media playback hardware in a secure and temperature controlled environment. The DV100R ensures that your valuable systems are kept safely away from unsecure environments while maintaining a consistent user experience.

The ALDV100R is the receiver unit. The full system with both receiver and transmitter units is the ALDV100P.

The ADDERLink DV100 Transmitter and Receiver

The ALDV100R is suitable for a wide range of applications, especially for the Digital Signage (DOOH - Digital Out-Of-Home) and Audio Visual (AV) industries.

AdderLink DV100R Video Extender Diagram

ADDER ALDV100R Features:

• Pixel perfect digital video up to 1080p or 1920x1200 @ 60Hz
• Digital audio support up to eight channels
• Seamless interconnectivity: HDMI transmitters (ALDV100T) can be connected to DVI-D receivers (ALDV100R) and vice versa.
• Extend video up to 50 meters over a single CATx cable
• Highly energy efficient - No external power supplies required
• Intelligent EDID management
• Plug and Play - no need to wait for drivers or software to be installed
• Perfect video wall companion - locking connectors are ideal for public environments

ADDER ALDV100R Package Contents:

• 1 x ALDV100R Remote (Receiver) Unit

ADDER ALDV100R Specifications:

ALDV100R is also known as the ALDV100R-US and ALDV100R-USA.

The ADDERLink DV100T (ALDV100T) is an easy to install, highly compact video extender system that can transmit an HD video stream over a single CATx cable. The extender system is powered by a single USB connection on the transmitter (TX) unit. This allows you to keep your media playback hardware in a secure and temperature controlled environment. The DV100T ensures that your valuable systems are kept safely away from unsecure environments while maintaining a consistent user experience.

The ALDV100T is the transmitter unit. The full system with both receiver and transmitter units is the ALDV100P.

The ADDERLink DV100 Transmitter and Receiver

The ALDV100T is suitable for a wide range of applications, especially for the Digital Signage (DOOH - Digital Out-Of-Home) and Audio Visual (AV) industries.

AdderLink DV100T Video Extender Diagram

ADDER ALDV100T Features:

• Pixel perfect digital video up to 1080p or 1920x1200 @ 60Hz
• Digital audio support up to eight channels
• Seamless interconnectivity: HDMI transmitters (ALDV100T) can be connected to DVI-D receivers (ALDV100T) and vice versa.
• Extend video up to 50 meters over a single CATx cable
• Highly energy efficient - No external power supplies required
• Intelligent EDID management
• Plug and Play - no need to wait for drivers or software to be installed
• Perfect video wall companion - locking connectors are ideal for public environments

ADDER ALDV100T Package Contents:

• 1 x ALDV100T Remote (Transmitter) Unit

ADDER ALDV100T Specifications:

ALDV100T is also known as the ALDV100T-US and ALDV100T-USA.

The ADDERLink DV104K (ALDV104K) is a high performance digital video extender and splitter system that enables you to keep your critical media source hardware in a secure and temperature controlled environment away while maintaining a consistent user experience.

The ALDV104K-US includes the ALDV104T-US Transmitter and four ALDV100R Receiver units.

Adder ALDV104T Layout

 ManualTALK TO AN EXPERT

Adder ALDV104K Features

•

  Two video inputs, four video output splitter and extender

  The ALDV104 is an intelligent non blocking cross point switch and extender. These configurations can be selected dynamically via the web interface or controlled by a 3rd party control system

• Pixel perfect digital video + HDCP support

  The ALDV104K HDMI video extension system is visually lossless with no visible artefacts or latency allowing you to be certain of quality up to 1080p or 1920x1200 @ 60Hz. High-bandwidth Digital Content Protection (HDCP) support prevents the interruption of HDMI data flow.

•

  Proof of Display via IP network

  The ALDV104K determines if the entire system is operating correctly and video is visible on the monitors. It can detect if video is present from the player and whether the cables to the monitors are attached and the monitor is turned on. This information is available by an IP socket thus allowing remote diagnostics and integration into content management systems.



•

  Dual-monitor extension or video source failover

  With two HDMI inputs, the ALDV104K system is suited to extending and splitting dual head systems. Alternatively the ALDV104K can also be set to detect when a video input stream is present and automatically switch over to the second video input if the primary fails.

•

  Security

  Security on the web interface is by HTTP digest authentication (RFC 2617) with username and password as requested information.

•

  API for 3rd party integration

  The API documentation to control and receive data from the unit is provided with the system.




• Digital audio support

  The ALDV104K supports high quality eight channel digital surround-sound audio (LPCM 7.1) from the connected HDMI source (HDMI-embedded audio).

•

  Intelligent EDID management

  The ALDV104K extender system has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

•

  No external power supplies required - Highly energy efficient

  The receivers are designed to be highly power efficient, using less than an eighth of the power required by competing systems. Power is supplied along the CATx cable meaning the support infrastructure required is minimal.




• Plug and Play

  The AdderLink ALDV104K extender kit is delivered in a zero config state so you can plug in the units and start working with them straight away. There is no need for drivers or software to be installed.

• Rack Mountable

  ALDV104T HDMI transmitters can be rack mounted into a 3U 19"" chassis (ALAV-RMK-CHASSIS) using 'rack fascia plates' (ALDV-RMK-FASCIA).

• Mix-n-match HDMI / DVI

  ALDV104T HDMI transmitter can be connected to Adder DV family ALDV100R HDMI or ALDV120R DVI-D receivers.

Adder ALDV104K Specifications

Note: Recommended cables are CAT7 shielded foiled twisted pairs.

Category 6a or better shielded twisted pair cable must be used to connect the transmitter and receiver units in order to maintain compliance with energy emission regulations and ensure a high level of immunity to electromagnetic disturbances.

ALDV104K is also known as the DV104, DV104K, ALDV104K-US and ALDV104K-USA.

The ADDERLink DV104T (ALDV104T) is a high performance digital video extender and splitter that enables you to keep your critical media source hardware in a secure and temperature controlled environment away while maintaining a consistent user experience.

The ALDV104T-US is the Transmitter Unit and requires 1 to 4 x ALDV100R HDMI and/or ALDV120R DVI-D receiver units to operate. For the full system including 4 x HDMI receiver units, see the ALDV104K-US.

Adder ALDV104T Layout

 Manual TALK TO AN EXPERT

Adder ALDV104T Features

•

  Two video inputs, four video output splitter and extender

  The ALDV104 is an intelligent non blocking cross point switch and extender. These configurations can be selected dynamically via the web interface or controlled by a 3rd party control system

• Pixel perfect digital video + HDCP support

  The ALDV104T HDMI video extension system is visually lossless with no visible artefacts or latency allowing you to be certain of quality up to 1080p or 1920x1200 @ 60Hz. High-bandwidth Digital Content Protection (HDCP) support prevents the interruption of HDMI data flow.

•

  Proof of Display via IP network

  The ALDV104T unit determines if the entire system is operating correctly and video is visible on the monitors. It can detect if video is present from the player and whether the cables to the monitors are attached and the monitor is turned on. This information is available by an IP socket thus allowing remote diagnostics and integration into content management systems.



•

  Dual-monitor extension or video source failover

  With two HDMI inputs, the ALDV104T system is suited to extending and splitting dual head systems. Alternatively the ALDV104T can also be set to detect when a video input stream is present and automatically switch over to the second video input if the primary fails.

•

  Security

  Security on the web interface is by HTTP digest authentication (RFC 2617) with username and password as requested information.

•

  API for 3rd party integration

  The API documentation to control and receive data from the unit is provided with the system.




• Digital audio support

  The ALDV104T supports high quality eight channel digital surround-sound audio (LPCM 7.1) from the connected HDMI source (HDMI-embedded audio).

•

  Intelligent EDID management

  The ALDV104T extender has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

•

  No external power supplies required - Highly energy efficient

  The receivers are designed to be highly power efficient, using less than an eighth of the power required by competing systems. Power is supplied along the CATx cable meaning the support infrastructure required is minimal.




• Plug and Play

  The AdderLink ALDV104T extender is delivered in a zero config state so you can plug in the units and start working with them straight away. There is no need for drivers or software to be installed.

• Mix-n-match HDMI / DVI

  ALDV104T HDMI transmitter can be connected to Adder DV family ALDV100R HDMI or ALDV120R DVI-D receivers.

• Rack Mountable

  ALDV104T HDMI transmitters can be rack mounted into a 3U 19"" chassis (ALAV-RMK-CHASSIS) using 'rack fascia plates' (ALDV-RMK-FASCIA).

Adder ALDV104T Specifications

Note: Recommended cables are CAT7 shielded foiled twisted pairs.

Category 6a or better shielded twisted pair cable must be used to connect the transmitter and receiver units in order to maintain compliance with energy emission regulations and ensure a high level of immunity to electromagnetic disturbances.

ALDV104T is also known as the DV104, DV104T, ALDV104T-US and ALDV104T-USA.

The ADDERLink DV120 (ALDV120P) is an easy to install, highly compact video extender system that can transmit a DVI HD video stream over a single CATx cable. The extender system is powered by a single USB connection on the transmitter (TX) unit. This allows you to keep your media playback hardware in a secure and temperature controlled environment. The DV120 ensures that your valuable systems are kept safely away from unsecure environments while maintaining a consistent user experience.

The ALDV120P is suitable for a wide range of applications, especially for the Digital Signage (DOOH - Digital Out-Of-Home) and Audio Visual (AV) industries.

Connecting your AdderLink DV120t

 Manual / Quick Start TALK TO AN EXPERT

Adder ALDV120P Features

• Extend video and power over a single CatX cable

  The ALDV120P extends video and power over a single CATx cable up to 164 feet (50 meters). *The actual achievable extension distance is dependent upon the CATx cable type used and the number of connection breaks for patch panels and wall plates

• Pixel perfect digital video + HDCP support

  The ALDV120P DVI video extension system is visually lossless with no visible artefacts or latency allowing you to be certain of quality up to 1080p or 1920x1200 @ 60Hz. High-bandwidth Digital Content Protection (HDCP) support prevents the interruption of HDMI data flow.

• No external power supplies required - Highly energy efficient

  The ALDV120P is powered over a standard USB socket and does not require an external PSU. Highly energy efficient design uses less than an eighth of the power required by some competing systems.



•

  Intelligent EDID management

  The ALDV120P extender has an intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

• Perfect digital signage & video wall companion

  With locking connectors and no power supplies required at the receiver (line-powered), the DV120 makes a perfect video wall companion and ideal for broadcast in public environments.

• Plug and Play

  The AdderLink ALDV120P extender is delivered in a zero config state so you can plug in the units and start working with them straight away. There is no need for drivers or software to be installed.



•

  Built to last - Robust yet lightweight

  Adder Technology have a well-earned reputation for creating products that perform well and stay the course. AdderLink DV120 is no exception and features tough, yet lightweight ABS enclosures to ensure they can easily withstand environmental pressures. The internal components and external connectors too are selected for their reliability in addition to their performance characteristics.

• Mix-n-match

  Interchangeability amongst the ADDERLink DV family of extenders allows ALDV120T DVI-D transmitters can be connected to ALDV100R HDMI receivers and vice versa.

Adder ALDV120P Specifications

ALDV120P is also known as the DV120, DV120-DVI, ALDV120P-US and ALDV120P-USA.

The ADDERLink DV120R (ALDV120R) is an easy to install, highly compact video extender system that can transmit a DVI HD video stream over a single CATx cable. The extender system is powered by a single USB connection on the transmitter (TX) unit. This allows you to keep your media playback hardware in a secure and temperature controlled environment. The DV120 ensures that your valuable systems are kept safely away from unsecure environments while maintaining a consistent user experience.

The ALDV120R is the receiver unit. The full system with both receiver and transmitter units is the ALDV120P.

The AdderLink ALDV120R Video Extender Unit

The ALDV120R is suitable for a wide range of applications, especially for the Digital Signage (DOOH - Digital Out-Of-Home) and Audio Visual (AV) industries.

AdderLink DV120 Video Extender Diagram

ADDER ALDV120R Features:

• Pixel perfect DVI digital video up to 1920x1200 @ 60Hz
• Extend video up to 50 meters over a single CATx cable
• Highly energy efficient - No external power supplies required
• Intelligent EDID management
• Plug and Play - no need to wait for drivers or software to be installed
• Perfect video wall companion - locking connectors are ideal for public environments

ADDER ALDV120R Package Contents:

• 1 x ALDV120R Remote (Receiver) Unit

ADDER ALDV120R Specifications:

ALDV120R is also known as the ALDV120R-US and ALDV120R-USA.

The ADDERLink DV120T (ALDV120T) is an easy to install, highly compact video extender system that can transmit a DVI HD video stream over a single CATx cable. The extender system is powered by a single USB connection on the transmitter (TX) unit. This allows you to keep your media playback hardware in a secure and temperature controlled environment. The DV120 ensures that your valuable systems are kept safely away from unsecure environments while maintaining a consistent user experience.

The ALDV120T is the transmitter unit. The full system with both receiver and transmitter units is the ALDV120P.

The AdderLink ALDV120T Video Extender Unit

The ALDV120T is suitable for a wide range of applications, especially for the Digital Signage (DOOH - Digital Out-Of-Home) and Audio Visual (AV) industries.

AdderLink DV120 Video Extender Diagram

ADDER ALDV120T Features:

• Pixel perfect DVI digital video up to 1920x1200 @ 60Hz
• Extend video up to 50 meters over a single CATx cable
• Highly energy efficient - No external power supplies required
• Intelligent EDID management
• Plug and Play - no need to wait for drivers or software to be installed
• Perfect video wall companion - locking connectors are ideal for public environments

ADDER ALDV120T Package Contents:

• 1 x ALDV120T Local (transmitter) Unit

ADDER ALDV120T Specifications:

ALDV120T is also known as the ALDV120T-US and ALDV120T-USA.

ADDERLink Infinity ALIF1002AT is a kit including a high performance single-link DVI, USB and Audio KVM Transmitter (ALIF1002T) + a VGA to DVI-D Module (Adder DVA). ALIF1002AT transmitter requires at least one ALIF1002R receiver to operate.

Part of the ADDERLink INFINITY series, ADDERLink Infinity 1002 is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 6.21mi (10km) via interchangeable CatX and Fiber SFP modules. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

Adder ALIF1002AT Features

•

  Infinite Flexibility

  With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

  • Point-to-point extension (local / over-IP)
  • AV / KVM Switch multi-point matrix (over-IP)
  • Sharing a single target (over-IP)
  • Multicasting to many receivers (over-IP)

  Learn more

• Perfect digital video, real time control

  Using a spatially-lossless encoding system, with 1:1 pixel mapping, AdderLink Infinity provides pixel perfect and color accurate video with no artefacts. The digital video you receive is the same as the digital video leaving the remote computer.




• Single CATx or Fiber cable with immunity from interference

  The AdderLink Infinity units were designed from the outset around a highly robust signaling method. This vital core asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7. The AdderLink Infinity also offers the option of up to 6.21mi (10km) distances with fiber.
•

  Unlimited extension distances

  Extension distance is not limited to a single 330 foot (100 meter) cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 330 feet (100 meters). This can be repeated many times. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.




• USB 2.0 with emulation and class control

  Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.



•

  Enterprise-grade security

  Adder Infinity units have built-in security measures compliant with universal enterprise grade security standards inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication.

•

  Intelligent EDID management

  Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without the additional configuration.

•

  Redundant network operation

  The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure




• Support for MacPro (Dithered Video)

  Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF1002AT has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

• Plug and Play

  AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

• Flexible mounting options

  Adder Infinity units can be rack mounted (1 unit in 1U with RMK4S, or 2 units side-by-side in 1U with RMK4D-R2), left on a desktop, wall mounted (RMKV4), or attached to the back of your monitor using a VESA mounting carriage (RMKV4).

ALIF1002AT Infinite Use-Cases

• codePoint-to-Point
• tune Switching^*
• call_split Sharing^*
• languageMatrix^*

Point-to-Point Extension

INFINITY as a CatX or Fiber Extender

In its simplest form, you can use the ADDERLink INFINITY 1002 as a point-to-point extender. Simply connect a transmitter to an receiver using CAT6 cable up to 330ft (100m) in length. The Adder INFINITY 1002 also offers the option of up to 6.21mi (10km) distances with fiber, via optional fiber SFP modules. This will deliver video, Audio, USB and serial in perfect quality across much greater extension distances over traditional CatX cables.

What if I need to extend beyond?

For longer cable runs, simply add another network device such as a switch. This can be repeated many times for longer distances, delivering a video, audio and USB extender capable of extraordinary distances. The great thing is, you can easily branch off to multiple screens at any point, or build new functionality in over time by adding additional units.

INFINITY as an Over-IP Extender^*

Adder INFINITY units can be set up as point-to-point KVM-Over-IP extenders with unlimited extension distance. Access your source computer from anywhere in the world from an INFINITY receiver!

Optional VNC viewer access from a computer, mobile phone, or tablet is also possible using the INFINITY ALIF2112T Transmitter, or by connecting Adder iPeps IP KVM Gateways to INFINITY Receivers.

Switching

INFINITY as an AV or KVM Switch

With the ADDERLink INFINITY, your network becomes your KVM switch. By changing channels on the receiver, you are switching video, USB and Audio, while the transmitters not in use continue to emulate the previously connected devices.

By turning your network into a switch, you could potentially create a KVM switch of any size you like, you can add source computers simply by adding transmitters or users simply by adding receivers, and even share USB devices at the same time. By creating mixed channels, you can combine video, audio and USB from different destinations.

Sharing Targets

INFINITY as a AV or KVM Splitter

The ADDERLink INFINITY has been designed to allow multiple users to share a single remote computer. You are given three ways to connect; View only (shows video only), Shared (presents an open connection that others can use at the same time) or Exclusive (once selected, no other user can either view or share, with the exception of system administrators - configurable).

Matrix

Multicasting

A unique feature of ADDERLink INFINITY is its ability to multicast video and audio across the network to as many receivers as you like. When a channel is being multicast, it does not create any additional traffic, instead, all receivers latch onto the same IP data flowing across the network.

INFINITY as a Command Center / Video Wall Controller

Adder INFINITY Manager (AIM) interface allows you to create custom command centers and video walls, without a limit to configuration size or distance. Mix together DVI, DisplayPort, and VGA Transmitters & Receivers that are available with a variety of mounting options, sizes, with audio support, and with serial RS-232. Control your entire IT & AV infrastructure, including existing KVMs, through a single solution!

Adder 'Free-flow' Mouse Switching

Free-Flow allows users to automatically switch between target computers simply by moving the mouse pointer from screen to screen. This essentially allows you to build a unlimited source Keyboard & Mouse switch. Unlike software-only variants, no software is required on your mission critical computers for Free-Flow to work.

To add 'Free-flow' mouse switching to your control station, simply add another receiver & monitor to the user station for each source you want to switch between.

* Supported via the Adder INFINITY Manager (AIM) interface

 FULL MANUAL TALK TO AN EXPERT

Adder ALIF1002AT Specifications

This part is also known as the ALIF1002AT-US.

Adder Infinity ALIF1002P is a high performance single-link DVI, USB and Audio KVM Extender / Matrix Switch solution including a Adder ALIF1002T Transmitter and a ALIF1002R Receiver.

Part of the ADDERLink INFINITY series, ADDERLink Infinity 1002 is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 6.21mi (10km) via interchangeable CatX and Fiber SFP modules. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

Adder ALIF1002P Features

•

  Infinite Flexibility

  With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

  • Point-to-point extension (local / over-IP)
  • AV / KVM Switch multi-point matrix (over-IP)
  • Sharing a single target (over-IP)
  • Multicasting to many receivers (over-IP)

  Learn more

• Perfect digital video, real time control

  Using a spatially-lossless encoding system, with 1:1 pixel mapping, AdderLink Infinity provides pixel perfect and color accurate video with no artefacts. The digital video you receive is the same as the digital video leaving the remote computer.




• Single CATx or Fiber cable with immunity from interference

  The AdderLink Infinity units were designed from the outset around a highly robust signaling method. This vital core asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7. The AdderLink Infinity also offers the option of up to 6.21mi (10km) distances with fiber.
•

  Unlimited extension distances

  Extension distance is not limited to a single 330 foot (100 meter) cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 330 feet (100 meters). This can be repeated many times. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.




• USB 2.0 with emulation and class control

  Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.



•

  Enterprise-grade security

  Adder Infinity units have built-in security measures compliant with universal enterprise grade security standards inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication.

•

  Intelligent EDID management

  Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without the additional configuration.

•

  Redundant network operation

  The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure




• Support for MacPro (Dithered Video)

  Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF1002T has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

• Plug and Play

  AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

• Flexible mounting options

  Adder Infinity units can be rack mounted (1 unit in 1U with RMK4S, or 2 units side-by-side in 1U with RMK4D-R2), left on a desktop, wall mounted (RMKV4), or attached to the back of your monitor using a VESA mounting carriage (RMKV4).

ALIF1002P Infinite Use-Cases

• codePoint-to-Point
• tune Switching^*
• call_split Sharing^*
• languageMatrix^*

Point-to-Point Extension

INFINITY as a CatX or Fiber Extender

In its simplest form, you can use the ADDERLink INFINITY 1002 as a point-to-point extender. Simply connect a transmitter to an receiver using CAT6 cable up to 330ft (100m) in length. The Adder INFINITY 1002 also offers the option of up to 6.21mi (10km) distances with fiber, via optional fiber SFP modules. This will deliver video, Audio, USB and serial in perfect quality across much greater extension distances over traditional CatX cables.

What if I need to extend beyond?

For longer cable runs, simply add another network device such as a switch. This can be repeated many times for longer distances, delivering a video, audio and USB extender capable of extraordinary distances. The great thing is, you can easily branch off to multiple screens at any point, or build new functionality in over time by adding additional units.

INFINITY as an Over-IP Extender^*

Adder INFINITY units can be set up as point-to-point KVM-Over-IP extenders with unlimited extension distance. Access your source computer from anywhere in the world from an INFINITY receiver!

Optional VNC viewer access from a computer, mobile phone, or tablet is also possible using the INFINITY ALIF2112T Transmitter, or by connecting Adder iPeps IP KVM Gateways to INFINITY Receivers.

Switching

INFINITY as an AV or KVM Switch

With the ADDERLink INFINITY, your network becomes your KVM switch. By changing channels on the receiver, you are switching video, USB and Audio, while the transmitters not in use continue to emulate the previously connected devices.

By turning your network into a switch, you could potentially create a KVM switch of any size you like, you can add source computers simply by adding transmitters or users simply by adding receivers, and even share USB devices at the same time. By creating mixed channels, you can combine video, audio and USB from different destinations.

Sharing Targets

INFINITY as a AV or KVM Splitter

The ADDERLink INFINITY has been designed to allow multiple users to share a single remote computer. You are given three ways to connect; View only (shows video only), Shared (presents an open connection that others can use at the same time) or Exclusive (once selected, no other user can either view or share, with the exception of system administrators - configurable).

Matrix

Multicasting

A unique feature of ADDERLink INFINITY is its ability to multicast video and audio across the network to as many receivers as you like. When a channel is being multicast, it does not create any additional traffic, instead, all receivers latch onto the same IP data flowing across the network.

INFINITY as a Command Center / Video Wall Controller

Adder INFINITY Manager (AIM) interface allows you to create custom command centers and video walls, without a limit to configuration size or distance. Mix together DVI, DisplayPort, and VGA Transmitters & Receivers that are available with a variety of mounting options, sizes, with audio support, and with serial RS-232. Control your entire IT & AV infrastructure, including existing KVMs, through a single solution!

Adder 'Free-flow' Mouse Switching

Free-Flow allows users to automatically switch between target computers simply by moving the mouse pointer from screen to screen. This essentially allows you to build a unlimited source Keyboard & Mouse switch. Unlike software-only variants, no software is required on your mission critical computers for Free-Flow to work.

To add 'Free-flow' mouse switching to your control station, simply add another receiver & monitor to the user station for each source you want to switch between.

* Supported via the Adder INFINITY Manager (AIM) interface

 FULL MANUAL TALK TO AN EXPERT

Adder ALIF1002P Specifications

This part is also known as Adder ALIF1002P-US, ALIF 1002P, and ALIF-1002P.

ADDERLink Infinity ALIF1002R is a high performance single-link DVI, USB and Audio KVM Receiver for the Adder Infinity Digital KVM Extension / Matrix solution. ALIF1002R receiver requires at least one ALIF1002T transmitter to operate.

Part of the ADDERLink INFINITY series, ADDERLink Infinity 1002 is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 6.21mi (10km) via interchangeable CatX and Fiber SFP modules. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

Adder ALIF1002R Features

•

  Infinite Flexibility

  With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

  • Point-to-point extension (local / over-IP)
  • AV / KVM Switch multi-point matrix (over-IP)
  • Sharing a single target (over-IP)
  • Multicasting to many receivers (over-IP)

  Learn more

• Perfect digital video, real time control

  Using a spatially-lossless encoding system, with 1:1 pixel mapping, AdderLink Infinity provides pixel perfect and color accurate video with no artefacts. The digital video you receive is the same as the digital video leaving the remote computer.




• Single CATx or Fiber cable with immunity from interference

  The AdderLink Infinity units were designed from the outset around a highly robust signaling method. This vital core asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7. The AdderLink Infinity also offers the option of up to 6.21mi (10km) distances with fiber.
•

  Unlimited extension distances

  Extension distance is not limited to a single 330 foot (100 meter) cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 330 feet (100 meters). This can be repeated many times. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.




• USB 2.0 with emulation and class control

  Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.



•

  Enterprise-grade security

  Adder Infinity units have built-in security measures compliant with universal enterprise grade security standards inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication.

•

  Intelligent EDID management

  Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without the additional configuration.

•

  Redundant network operation

  The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure




• Support for MacPro (Dithered Video)

  Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF1002T (transmitter) has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

• Plug and Play

  AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

• Flexible mounting options

  Adder Infinity units can be rack mounted (1 unit in 1U with RMK4S, or 2 units side-by-side in 1U with RMK4D-R2), left on a desktop, wall mounted (RMKV4), or attached to the back of your monitor using a VESA mounting carriage (RMKV4).

ALIF1002R Infinite Use-Cases

• codePoint-to-Point
• tune Switching^*
• call_split Sharing^*
• languageMatrix^*

Point-to-Point Extension

INFINITY as a CatX or Fiber Extender

In its simplest form, you can use the ADDERLink INFINITY 1002 as a point-to-point extender. Simply connect a transmitter to an receiver using CAT6 cable up to 330ft (100m) in length. The Adder INFINITY 1002 also offers the option of up to 6.21mi (10km) distances with fiber, via optional fiber SFP modules. This will deliver video, Audio, USB and serial in perfect quality across much greater extension distances over traditional CatX cables.

What if I need to extend beyond?

For longer cable runs, simply add another network device such as a switch. This can be repeated many times for longer distances, delivering a video, audio and USB extender capable of extraordinary distances. The great thing is, you can easily branch off to multiple screens at any point, or build new functionality in over time by adding additional units.

INFINITY as an Over-IP Extender^*

Adder INFINITY units can be set up as point-to-point KVM-Over-IP extenders with unlimited extension distance. Access your source computer from anywhere in the world from an INFINITY receiver!

Optional VNC viewer access from a computer, mobile phone, or tablet is also possible using the INFINITY ALIF2112T Transmitter, or by connecting Adder iPeps IP KVM Gateways to INFINITY Receivers.

Switching

INFINITY as an AV or KVM Switch

With the ADDERLink INFINITY, your network becomes your KVM switch. By changing channels on the receiver, you are switching video, USB and Audio, while the transmitters not in use continue to emulate the previously connected devices.

By turning your network into a switch, you could potentially create a KVM switch of any size you like, you can add source computers simply by adding transmitters or users simply by adding receivers, and even share USB devices at the same time. By creating mixed channels, you can combine video, audio and USB from different destinations.

Sharing Targets

INFINITY as a AV or KVM Splitter

The ADDERLink INFINITY has been designed to allow multiple users to share a single remote computer. You are given three ways to connect; View only (shows video only), Shared (presents an open connection that others can use at the same time) or Exclusive (once selected, no other user can either view or share, with the exception of system administrators - configurable).

Matrix

Multicasting

A unique feature of ADDERLink INFINITY is its ability to multicast video and audio across the network to as many receivers as you like. When a channel is being multicast, it does not create any additional traffic, instead, all receivers latch onto the same IP data flowing across the network.

INFINITY as a Command Center / Video Wall Controller

Adder INFINITY Manager (AIM) interface allows you to create custom command centers and video walls, without a limit to configuration size or distance. Mix together DVI, DisplayPort, and VGA Transmitters & Receivers that are available with a variety of mounting options, sizes, with audio support, and with serial RS-232. Control your entire IT & AV infrastructure, including existing KVMs, through a single solution!

Adder 'Free-flow' Mouse Switching

Free-Flow allows users to automatically switch between target computers simply by moving the mouse pointer from screen to screen. This essentially allows you to build a unlimited source Keyboard & Mouse switch. Unlike software-only variants, no software is required on your mission critical computers for Free-Flow to work.

To add 'Free-flow' mouse switching to your control station, simply add another receiver & monitor to the user station for each source you want to switch between.

* Supported via the Adder INFINITY Manager (AIM) interface

 FULL MANUAL TALK TO AN EXPERT

Adder ALIF1002R Specifications

This part is also known as Adder ALIF1002R-US, ALIF 1002R, and ALIF-1002R.

ADDERLink Infinity ALIF1002T is a high performance single-link DVI, USB and Audio Transmitter for the Adder Infinity Digital KVM Extension / Matrix solution. ALIF1002T transmitter requires at least one ALIF1002R receiver to operate.

Part of the ADDERLink INFINITY series, ADDERLink Infinity 1002 is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 6.21mi (10km) via interchangeable CatX and Fiber SFP modules. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

Adder ALIF1002T Features

•

  Infinite Flexibility

  With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

  • Point-to-point extension (local / over-IP)
  • AV / KVM Switch multi-point matrix (over-IP)
  • Sharing a single target (over-IP)
  • Multicasting to many receivers (over-IP)

  Learn more

• Perfect digital video, real time control

  Using a spatially-lossless encoding system, with 1:1 pixel mapping, AdderLink Infinity provides pixel perfect and color accurate video with no artefacts. The digital video you receive is the same as the digital video leaving the remote computer.




• Single CATx or Fiber cable with immunity from interference

  The AdderLink Infinity units were designed from the outset around a highly robust signaling method. This vital core asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7. The AdderLink Infinity also offers the option of up to 6.21mi (10km) distances with fiber.
•

  Unlimited extension distances

  Extension distance is not limited to a single 330 foot (100 meter) cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 330 feet (100 meters). This can be repeated many times. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.




• USB 2.0 with emulation and class control

  Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.



•

  Enterprise-grade security

  Adder Infinity units have built-in security measures compliant with universal enterprise grade security standards inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication.

•

  Intelligent EDID management

  Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without the additional configuration.

•

  Redundant network operation

  Adder Infinity units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure




• Support for MacPro (Dithered Video)

  Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF1002T has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

• Plug and Play

  AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

• Flexible mounting options

  Adder Infinity units can be rack mounted (1 unit in 1U with RMK4S, or 2 units side-by-side in 1U with RMK4D-R2), left on a desktop, wall mounted (RMKV4), or attached to the back of your monitor using a VESA mounting carriage (RMKV4).

ALIF1002T Infinite Use-Cases

• codePoint-to-Point
• tune Switching^*
• call_split Sharing^*
• languageMatrix^*

Point-to-Point Extension

INFINITY as a CatX or Fiber Extender

In its simplest form, you can use the ADDERLink INFINITY 1002 as a point-to-point extender. Simply connect a transmitter to an receiver using CAT6 cable up to 330ft (100m) in length. The Adder INFINITY 1002 also offers the option of up to 6.21mi (10km) distances with fiber, via optional fiber SFP modules. This will deliver video, Audio, USB and serial in perfect quality across much greater extension distances over traditional CatX cables.

What if I need to extend beyond?

For longer cable runs, simply add another network device such as a switch. This can be repeated many times for longer distances, delivering a video, audio and USB extender capable of extraordinary distances. The great thing is, you can easily branch off to multiple screens at any point, or build new functionality in over time by adding additional units.

INFINITY as an Over-IP Extender^*

Adder INFINITY units can be set up as point-to-point KVM-Over-IP extenders with unlimited extension distance. Access your source computer from anywhere in the world from an INFINITY receiver!

Optional VNC viewer access from a computer, mobile phone, or tablet is also possible using the INFINITY ALIF2112T Transmitter, or by connecting Adder iPeps IP KVM Gateways to INFINITY Receivers.

Switching

INFINITY as an AV or KVM Switch

With the ADDERLink INFINITY, your network becomes your KVM switch. By changing channels on the receiver, you are switching video, USB and Audio, while the transmitters not in use continue to emulate the previously connected devices.

By turning your network into a switch, you could potentially create a KVM switch of any size you like, you can add source computers simply by adding transmitters or users simply by adding receivers, and even share USB devices at the same time. By creating mixed channels, you can combine video, audio and USB from different destinations.

Sharing Targets

INFINITY as a AV or KVM Splitter

The ADDERLink INFINITY has been designed to allow multiple users to share a single remote computer. You are given three ways to connect; View only (shows video only), Shared (presents an open connection that others can use at the same time) or Exclusive (once selected, no other user can either view or share, with the exception of system administrators - configurable).

Matrix

Multicasting

A unique feature of ADDERLink INFINITY is its ability to multicast video and audio across the network to as many receivers as you like. When a channel is being multicast, it does not create any additional traffic, instead, all receivers latch onto the same IP data flowing across the network.

INFINITY as a Command Center / Video Wall Controller

Adder INFINITY Manager (AIM) interface allows you to create custom command centers and video walls, without a limit to configuration size or distance. Mix together DVI, DisplayPort, and VGA Transmitters & Receivers that are available with a variety of mounting options, sizes, with audio support, and with serial RS-232. Control your entire IT & AV infrastructure, including existing KVMs, through a single solution!

Adder 'Free-flow' Mouse Switching

Free-Flow allows users to automatically switch between target computers simply by moving the mouse pointer from screen to screen. This essentially allows you to build a unlimited source Keyboard & Mouse switch. Unlike software-only variants, no software is required on your mission critical computers for Free-Flow to work.

To add 'Free-flow' mouse switching to your control station, simply add another receiver & monitor to the user station for each source you want to switch between.

* Supported via the Adder INFINITY Manager (AIM) interface

 FULL MANUAL TALK TO AN EXPERT

Adder ALIF1002T Specifications

This part is also known as Adder ALIF1002T-US, ALIF 1002T, and ALIF-1002T.

The Adder ALIF100P-DP is a Kit including a Adder ALIF101T-DP Transmitter and a ALIF1002R Receiver.

The Adder ALIF100P-DVI is a Kit including a Adder ALIF100T-DVI Transmitter and a ALIF1002R Receiver.

ADDERLink Infinity ALIF100T-DVI is a Zero-U, high performance single-link DVI KVM Transmitter with USB and Audio. ALIF100T-DVI transmitter requires at least one ALIF1002R receiver to operate.

Part of the ADDERLink INFINITY series, ADDERLink Infinity 100 the world's smallest high performance KVM extender transmitter that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

Adder ALIF100T-DVI Features

•

  Infinite Flexibility

  With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

  • Point-to-point extension (local / over-IP)
  • AV / KVM Switch multi-point matrix (over-IP)
  • Sharing a single target (over-IP)
  • Multicasting to many receivers (over-IP)

  Learn more

• Zero-U size

  The ALIF100T-DVI takes zero-U of rack space in the server room allowing for ultimate flexibility and ease of installation
•

  Network IP-based

  Use your existing networking infrastructure to extend or matrix your computing resources to your users



• USB Line-Powered

  The ALIF100T-DVI can be powered from USB. This means there is no need to provision for an external PSU. Options for powering from an external PSU or redundant PSU are also available.

• Low power consumption

  Requiring less than 3 Watts, the unit can be powered from USB. This means it could use less than a quarter of the energy when compared to other solutions




• Pixel-perfect digital video

  The ALIF100T-DVI uses an encoding system that is spatially-lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer ensuring the very best picture available and color accuracy. The system supports resolutions to a maximum of 1920x1200@60Hz.




• USB Audio

  The ALIF100T-DVI system delivers USB stereo audio (Line In, Line Out) digitally across the network. Digital USB based audio supports supports up to 16-bit/48 kHz hi-res files, for those seeking absolute audio perfection.

• USB 2.0 with emulation

  Enables connection of USB human interface devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching.

• Intelligent EDID management

  The system has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed




• Plug and Play

  AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

ALIF100T-DVI Infinite Use-Cases

• codePoint-to-Point
• tune Switching^*
• call_split Sharing^*
• languageMatrix^*

Point-to-Point Extension

INFINITY as a CatX Extender

In its simplest form, you can use the ADDERLink INFINITY 100 as a point-to-point extender. Simply connect a transmitter to an receiver using CAT6 cable up to 330ft (100m) in length. The Adder INFINITY 100 also offers the option of up to 6.21mi (10km) distances with fiber, via optional fiber SFP modules. This will deliver video, Audio, USB and serial in perfect quality across much greater extension distances over traditional CatX cables.

What if I need to extend beyond?

For longer cable runs, simply add another network device such as a switch. This can be repeated many times for longer distances, delivering a video, audio and USB extender capable of extraordinary distances. The great thing is, you can easily branch off to multiple screens at any point, or build new functionality in over time by adding additional units.

INFINITY as an Over-IP Extender^*

Adder INFINITY units can be set up as point-to-point KVM-Over-IP extenders with unlimited extension distance. Access your source computer from anywhere in the world from an INFINITY receiver!

Optional VNC viewer access from a computer, mobile phone, or tablet is also possible using the INFINITY ALIF2112T Transmitter, or by connecting Adder iPeps IP KVM Gateways to INFINITY Receivers.

Switching

INFINITY as an AV or KVM Switch

With the ADDERLink INFINITY, your network becomes your KVM switch. By changing channels on the receiver, you are switching video, USB and Audio, while the transmitters not in use continue to emulate the previously connected devices.

By turning your network into a switch, you could potentially create a KVM switch of any size you like, you can add source computers simply by adding transmitters or users simply by adding receivers, and even share USB devices at the same time. By creating mixed channels, you can combine video, audio and USB from different destinations.

Sharing Targets

INFINITY as a AV or KVM Splitter

The ADDERLink INFINITY has been designed to allow multiple users to share a single remote computer. You are given three ways to connect; View only (shows video only), Shared (presents an open connection that others can use at the same time) or Exclusive (once selected, no other user can either view or share, with the exception of system administrators - configurable).

Matrix

Multicasting

A unique feature of ADDERLink INFINITY is its ability to multicast video and audio across the network to as many receivers as you like. When a channel is being multicast, it does not create any additional traffic, instead, all receivers latch onto the same IP data flowing across the network.

INFINITY as a Command Center / Video Wall Controller

Adder INFINITY Manager (AIM) interface allows you to create custom command centers and video walls, without a limit to configuration size or distance. Mix together DVI, DisplayPort, and VGA Transmitters & Receivers that are available with a variety of mounting options, sizes, with audio support, and with serial RS-232. Control your entire IT & AV infrastructure, including existing KVMs, through a single solution!

Adder 'Free-flow' Mouse Switching

Free-Flow allows users to automatically switch between target computers simply by moving the mouse pointer from screen to screen. This essentially allows you to build a unlimited source Keyboard & Mouse switch. Unlike software-only variants, no software is required on your mission critical computers for Free-Flow to work.

To add 'Free-flow' mouse switching to your control station, simply add another receiver & monitor to the user station for each source you want to switch between.

* Supported via the Adder INFINITY Manager (AIM) interface

 FULL MANUAL TALK TO AN EXPERT

Adder ALIF100T-DVI Specifications

This part is also known as Adder ALIF100T-DVI-US, ALIF100T, ALIF-100T-DVI, and ALIF-100T.

ADDERLink Infinity ALIF100T-VGA is a Zero-U, high performance VGA KVM Transmitter with USB and Audio support. ALIF100T-VGA transmitter requires at least one ALIF1002R receiver to operate. Ideal for customers with analogue servers looking to maximise their investment, the ALIF100T VGA connects and transmits those video sources enabling them to be controlled from a single source. As a result, users can gradually migrate to digital without a major 'rip and replace' operation and continue to gain value from their existing technology investments.

Part of the ADDERLink INFINITY series, ADDERLink Infinity ALIF 100 is the world's smallest high performance KVM extender transmitter that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

Adder ALIF100T-VGA Features

•

  Infinite Flexibility

  With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

  • Point-to-point extension (local / over-IP)
  • AV / KVM Switch multi-point matrix (over-IP)
  • Sharing a single target (over-IP)
  • Multicasting to many receivers (over-IP)

  Learn more

• Zero-U size

  The ALIF100T-VGA takes zero-U of rack space in the server room allowing for ultimate flexibility and ease of installation.
•

  Network IP-based

  Use your existing networking infrastructure to extend or matrix your computing resources to your users.



• USB Line-Powered

  The ALIF100T-VGA can be powered from USB. This means there is no need to provision for an external PSU. Options for powering from an external PSU or redundant PSU are also available.
•

  Low power consumption

  Requiring less than 3 Watts, the unit can be powered from USB. This means it could use less than a quarter of the energy when compared to other solutions.




• Pixel-perfect analog video

  The ALIF100T-VGA uses an encoding system that is spatially-lossless, with 1:1 pixel mapping, so the analog video you receive is the same as the analog video leaving the remote computer ensuring the very best picture available and color accuracy. The system supports resolutions to a maximum of 1920x1200 @ 60Hz.




• USB Audio

  The ALIF100T-VGA system delivers USB stereo audio (Line In, Line Out) digitally across the network. Digital USB based audio supports supports up to 16-bit/48 kHz hi-res files, for those seeking absolute audio perfection.

•

  USB 2.0 with emulation

  Enables connection of USB human interface devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching.

• Intelligent EDID management

  The system has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed.




• Plug and Play

  AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

ALIF100T-VGA Infinite Use-Cases

• codePoint-to-Point
• tune Switching^*
• call_split Sharing^*
• languageMatrix^*

Point-to-Point Extension

INFINITY as a CatX Extender

In its simplest form, you can use the ADDERLink INFINITY 100 as a point-to-point extender. Simply connect a transmitter to an receiver using CAT6 cable up to 330ft (100m) in length. The Adder INFINITY 100 also offers the option of up to 6.21mi (10km) distances with fiber, via optional fiber SFP modules. This will deliver video, Audio, USB and serial in perfect quality across much greater extension distances over traditional CatX cables.

What if I need to extend beyond?

For longer cable runs, simply add another network device such as a switch. This can be repeated many times for longer distances, delivering a video, audio and USB extender capable of extraordinary distances. The great thing is, you can easily branch off to multiple screens at any point, or build new functionality in over time by adding additional units.

INFINITY as an Over-IP Extender^*

Adder INFINITY units can be set up as point-to-point KVM-Over-IP extenders with unlimited extension distance. Access your source computer from anywhere in the world from an INFINITY receiver!

Optional VNC viewer access from a computer, mobile phone, or tablet is also possible using the INFINITY ALIF2112T Transmitter, or by connecting Adder iPeps IP KVM Gateways to INFINITY Receivers.

Switching

INFINITY as an AV or KVM Switch

With the ADDERLink INFINITY, your network becomes your KVM switch. By changing channels on the receiver, you are switching video, USB and Audio, while the transmitters not in use continue to emulate the previously connected devices.

By turning your network into a switch, you could potentially create a KVM switch of any size you like, you can add source computers simply by adding transmitters or users simply by adding receivers, and even share USB devices at the same time. By creating mixed channels, you can combine video, audio and USB from different destinations.

Sharing Targets

INFINITY as a AV or KVM Splitter

The ADDERLink INFINITY has been designed to allow multiple users to share a single remote computer. You are given three ways to connect; View only (shows video only), Shared (presents an open connection that others can use at the same time) or Exclusive (once selected, no other user can either view or share, with the exception of system administrators - configurable).

Matrix

Multicasting

A unique feature of ADDERLink INFINITY is its ability to multicast video and audio across the network to as many receivers as you like. When a channel is being multicast, it does not create any additional traffic, instead, all receivers latch onto the same IP data flowing across the network.

INFINITY as a Command Center / Video Wall Controller

Adder INFINITY Manager (AIM) interface allows you to create custom command centers and video walls, without a limit to configuration size or distance. Mix together DVI, DisplayPort, and VGA Transmitters & Receivers that are available with a variety of mounting options, sizes, with audio support, and with serial RS-232. Control your entire IT & AV infrastructure, including existing KVMs, through a single solution!

Adder 'Free-flow' Mouse Switching

Free-Flow allows users to automatically switch between target computers simply by moving the mouse pointer from screen to screen. This essentially allows you to build a unlimited source Keyboard & Mouse switch. Unlike software-only variants, no software is required on your mission critical computers for Free-Flow to work.

To add 'Free-flow' mouse switching to your control station, simply add another receiver & monitor to the user station for each source you want to switch between.

* Supported via the Adder INFINITY Manager (AIM) interface

 FULL MANUAL TALK TO AN EXPERT

Adder ALIF100T-VGA Specifications

This part is also known as Adder ALIF100T-VGA-US, ALIF-100T-VGA, and ALIF 100T VGA.

ADDERLink Infinity ALIF101T-DP is a Zero-U, high performance single-link DisplayPort KVM Transmitter with USB and Audio. ALIF101T-DP transmitter requires at least one ALIF1002R receiver to operate.

Part of the ADDERLink INFINITY series, ADDERLink Infinity 100 the world's smallest high performance KVM extender transmitter that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

Adder ALIF101T-DP Features

•

  Infinite Flexibility

  With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

  • Point-to-point extension (local / over-IP)
  • AV / KVM Switch multi-point matrix (over-IP)
  • Sharing a single target (over-IP)
  • Multicasting to many receivers (over-IP)

  Learn more

• Zero-U size

  The ALIF101T-DP takes zero-U of rack space in the server room allowing for ultimate flexibility and ease of installation
•

  Network IP-based

  Use your existing networking infrastructure to extend or matrix your computing resources to your users



• USB Line-Powered

  The ALIF101T-DP can be powered from USB. This means there is no need to provision for an external PSU. Options for powering from an external PSU or redundant PSU are also available.

• Low power consumption

  Requiring less than 3 Watts, the unit can be powered from USB. This means it could use less than a quarter of the energy when compared to other solutions




• Pixel-perfect digital video

  The ALIF101T-DP uses an encoding system that is spatially-lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer ensuring the very best picture available and color accuracy. The system supports resolutions to a maximum of 1920x1200@60Hz.




• USB Audio

  The ALIF101T-DP system delivers USB stereo audio (Line In, Line Out) digitally across the network. Digital USB based audio supports supports up to 16-bit/48 kHz hi-res files, for those seeking absolute audio perfection.

• USB 2.0 with emulation

  Enables connection of USB human interface devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching.

• Intelligent EDID management

  The system has intelligent EDID management to either allow the true characteristics of the monitor to be passed back to the computer, or controlled resolutions to be imposed




• Plug and Play

  AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

ALIF101T-DP Infinite Use-Cases

• codePoint-to-Point
• tune Switching^*
• call_split Sharing^*
• languageMatrix^*

Point-to-Point Extension

INFINITY as a CatX Extender

In its simplest form, you can use the ADDERLink INFINITY 100 as a point-to-point extender. Simply connect a transmitter to an receiver using CAT6 cable up to 330ft (100m) in length. The Adder INFINITY 100 also offers the option of up to 6.21mi (10km) distances with fiber, via optional fiber SFP modules. This will deliver video, Audio, USB and serial in perfect quality across much greater extension distances over traditional CatX cables.

What if I need to extend beyond?

For longer cable runs, simply add another network device such as a switch. This can be repeated many times for longer distances, delivering a video, audio and USB extender capable of extraordinary distances. The great thing is, you can easily branch off to multiple screens at any point, or build new functionality in over time by adding additional units.

INFINITY as an Over-IP Extender^*

Adder INFINITY units can be set up as point-to-point KVM-Over-IP extenders with unlimited extension distance. Access your source computer from anywhere in the world from an INFINITY receiver!

Optional VNC viewer access from a computer, mobile phone, or tablet is also possible using the INFINITY ALIF2112T Transmitter, or by connecting Adder iPeps IP KVM Gateways to INFINITY Receivers.

Switching

INFINITY as an AV or KVM Switch

With the ADDERLink INFINITY, your network becomes your KVM switch. By changing channels on the receiver, you are switching video, USB and Audio, while the transmitters not in use continue to emulate the previously connected devices.

By turning your network into a switch, you could potentially create a KVM switch of any size you like, you can add source computers simply by adding transmitters or users simply by adding receivers, and even share USB devices at the same time. By creating mixed channels, you can combine video, audio and USB from different destinations.

Sharing Targets

INFINITY as a AV or KVM Splitter

The ADDERLink INFINITY has been designed to allow multiple users to share a single remote computer. You are given three ways to connect; View only (shows video only), Shared (presents an open connection that others can use at the same time) or Exclusive (once selected, no other user can either view or share, with the exception of system administrators - configurable).

Matrix

Multicasting

A unique feature of ADDERLink INFINITY is its ability to multicast video and audio across the network to as many receivers as you like. When a channel is being multicast, it does not create any additional traffic, instead, all receivers latch onto the same IP data flowing across the network.

INFINITY as a Command Center / Video Wall Controller

Adder INFINITY Manager (AIM) interface allows you to create custom command centers and video walls, without a limit to configuration size or distance. Mix together DVI, DisplayPort, and VGA Transmitters & Receivers that are available with a variety of mounting options, sizes, with audio support, and with serial RS-232. Control your entire IT & AV infrastructure, including existing KVMs, through a single solution!

Adder 'Free-flow' Mouse Switching

Free-Flow allows users to automatically switch between target computers simply by moving the mouse pointer from screen to screen. This essentially allows you to build a unlimited source Keyboard & Mouse switch. Unlike software-only variants, no software is required on your mission critical computers for Free-Flow to work.

To add 'Free-flow' mouse switching to your control station, simply add another receiver & monitor to the user station for each source you want to switch between.

* Supported via the Adder INFINITY Manager (AIM) interface

 FULL MANUAL TALK TO AN EXPERT

Adder ALIF101T-DP Specifications

This part is also known as Adder ALIF101T-DP-US, and ALIF-101T-DP.

ADDERLink ALIF1102P
DisplayPort™ connectors, single-head digital video, audio, and USB2.0 over 1GbE IP network.

ADDERLink ALIF1102P Overview

The ADDERLink® INFINITY 1102 is a high performance IP KVM extender that forms part of the ADDERLink INFINITY Range. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; while maintaining a pixel-perfect desktop experience.

DATA SHEET

ADDERLink ALIF1102R
DisplayPort™ connectors, single-head digital video, audio, and USB2.0 over 1GbE IP network.

ADDERLink ALIF1102R Overview

The ADDERLink® INFINITY 1102 is a high performance IP KVM extender that forms part of the ADDERLink INFINITY Range. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; while maintaining a pixel-perfect desktop experience.

DATA SHEET

ADDERLink ALIF1102T
DisplayPort™ connectors, single-head digital video, audio, and USB2.0 over 1GbE IP network.

ADDERLink ALIF1102T Overview

The ADDERLink® INFINITY 1102 is a high performance IP KVM extender that forms part of the ADDERLink INFINITY Range. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; while maintaining a pixel-perfect desktop experience.

DATA SHEET

ADDERLink ALIF1104T-US

HDMI® connectors, single-head digital video, audio, and USB2.0 over 1GbE IP network.

ADDERLink ALIF1104T-US Overview

The ADDERLink® INFINITY 1104 is a high performance IP KVM extender that forms part of the ADDERLink INFINITY Range. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; while maintaining a pixel-perfect desktop experience.

DATA SHEET

ADDERLink Infinity ALIF2002AT is a kit including a high performance Dual-link or Dual-monitor DVI, USB and Audio KVM Transmitter (ALIF2002T) + 2x VGA to DVI-D Module (Adder DVA). ALIF1002AT transmitter requires at least one ALIF2000R receiver to operate.

Part of the ADDERLink INFINITY series, the ADDERLink Infinity Dual is a high performance KVM solution that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a dual link or dual head, this extender supports either two single link DVI-D resolutions to a maximum of 1920 x 1200 at 60Hz or one dual link to a maximum of 2560x1600 @ 60Hz, up to 6.21mi (10km) via interchangeable CatX and Fiber SFP modules. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

With intelligent video encoding this product has the capability to process full screen moving video in real time. You can configure your network topology to best suit your needs by extending one computer to one user by connecting your receiver and transmitter via CATx cable or fiber. Distance can be unlimited with the use of daisy chaining standard network cables and switches that will deliver IP traffic up to 330 feet (100 meters) away each. Because of the efficient manner in which ALIF 2002T constructs data for IP transmission you can make use of standard wireless routing to connect these receiver and transmitter units to your network.

Adder ALIF2002AT Features

•

  Infinite Flexibility

  With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

  • Point-to-point extension (local / over-IP)
  • AV / KVM Switch multi-point matrix (over-IP)
  • Sharing a single target (over-IP)
  • Multicasting to many receivers (over-IP)

  Learn more

• Perfect digital video, real time control

  Uncompressed video extension and pixel perfect digital video up to 24 bits per color at a maximum of 1920x1200 over 60hz with real time control. Using a spatially-lossless encoding system, with 1:1 pixel mapping, AdderLink Infinity provides pixel perfect and color accurate video with no artefacts. The digital video you receive is the same as the digital video leaving the remote computer.




• Single CATx or Fiber cable with immunity from interference

  The AdderLink Infinity units were designed from the outset around a highly robust signaling method. This vital core asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7. The AdderLink Infinity dual also offers the option of up to 6.21mi (10km) distances with fiber.

• Unlimited extension distances

  Extension distance is not limited to a single 330 foot (100 meter) cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 330 feet (100 meters). This can be repeated many times. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.




• USB 2.0 with emulation and class control

  Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.



•

  Intelligent EDID management

  Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without the additional configuration.

•

  Redundant network operation

  The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure

•

  Enterprise-grade security

  Adder Infinity units have built-in security measures compliant with universal enterprise grade security standards inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication.




• Support for MacPro (Dithered Video)

  Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF2002AT has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

• Plug and Play

  AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

• Flexible mounting options

  Adder Infinity Dual units can be rack mounted (1 unit in 1U with RMK4S, or 2 units side-by-side in 1U with RMK4D-R2), left on a desktop, wall mounted (RMKV4), or attached to the back of your monitor using a VESA mounting carriage (RMKV4).

ALIF2002AT Infinite Use-Cases

• codePoint-to-Point
• tune Switching^*
• call_split Sharing^*
• languageMatrix^*

Point-to-Point Extension

INFINITY as a CatX or Fiber Extender

In its simplest form, you can use the ADDERLink INFINITY Dual as a point-to-point extender. Simply connect a transmitter to an receiver using CAT6 cable up to 330ft (100m) in length. The Adder INFINITY Dual also offers the option of up to 6.21mi (10km) distances with fiber, via optional fiber SFP modules. This will deliver video, Audio, USB and serial in perfect quality across much greater extension distances over traditional CatX cables.

What if I need to extend beyond?

For longer cable runs, simply add another network device such as a switch. This can be repeated many times for longer distances, delivering a video, audio and USB extender capable of extraordinary distances. The great thing is, you can easily branch off to multiple screens at any point, or build new functionality in over time by adding additional units.

INFINITY as an Over-IP Extender^*

Adder INFINITY units can be set up as point-to-point KVM-Over-IP extenders with unlimited extension distance. Access your source computer from anywhere in the world from an INFINITY receiver!

Optional VNC viewer access from a computer, mobile phone, or tablet is also possible using the INFINITY ALIF2112T Transmitter, or by connecting Adder iPeps IP KVM Gateways to INFINITY Receivers.

Switching

INFINITY as an AV or KVM Switch

With the ADDERLink INFINITY, your network becomes your KVM switch. By changing channels on the receiver, you are switching video, USB and Audio, while the transmitters not in use continue to emulate the previously connected devices.

By turning your network into a switch, you could potentially create a KVM switch of any size you like, you can add source computers simply by adding transmitters or users simply by adding receivers, and even share USB devices at the same time. By creating mixed channels, you can combine video, audio and USB from different destinations.

Sharing Targets

INFINITY as a AV or KVM Splitter

The ADDERLink INFINITY has been designed to allow multiple users to share a single remote computer. You are given three ways to connect; View only (shows video only), Shared (presents an open connection that others can use at the same time) or Exclusive (once selected, no other user can either view or share, with the exception of system administrators - configurable).

Matrix

Multicasting

A unique feature of ADDERLink INFINITY is its ability to multicast video and audio across the network to as many receivers as you like. When a channel is being multicast, it does not create any additional traffic, instead, all receivers latch onto the same IP data flowing across the network.

INFINITY as a Command Center / Video Wall Controller

Adder INFINITY Manager (AIM) interface allows you to create custom command centers and video walls, without a limit to configuration size or distance. Mix together DVI, DisplayPort, and VGA Transmitters & Receivers that are available with a variety of mounting options, sizes, with audio support, and with serial RS-232. Control your entire IT & AV infrastructure, including existing KVMs, through a single solution!

Adder 'Free-flow' Mouse Switching

Free-Flow allows users to automatically switch between target computers simply by moving the mouse pointer from screen to screen. This essentially allows you to build a unlimited source Keyboard & Mouse switch. Unlike software-only variants, no software is required on your mission critical computers for Free-Flow to work.

To add 'Free-flow' mouse switching to your control station, simply add another receiver & monitor to the user station for each source you want to switch between.

* Supported via the Adder INFINITY Manager (AIM) interface

 FULL MANUAL TALK TO AN EXPERT

Adder ALIF2002AT Specifications

This part is also known as the ALIF2002AT-US

Adder ALIF2002P-MM is a high performance Dual-link or Dual-monitor DVI, USB and Audio KVM Extender / Matrix Switch solution including a Adder ALIF2002T Transmitter, a ALIF2000R Receiver, and two Multi-Mode Fiber SFP Modules.

Part of the ADDERLink INFINITY series, the ADDERLink Infinity Dual is a high performance KVM solution that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a dual link or dual head, this extender supports either two single link DVI-D resolutions to a maximum of 1920 x 1200 at 60Hz or one dual link to a maximum of 2560x1600 @ 60Hz, up to 6.21mi (10km) via interchangeable CatX and Fiber SFP modules. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

With intelligent video encoding this product has the capability to process full screen moving video in real time. You can configure your network topology to best suit your needs by extending one computer to one user by connecting your receiver and transmitter via CATx cable or fiber. Distance can be unlimited with the use of daisy chaining standard network cables and switches that will deliver IP traffic up to 330 feet (100 meters) away each. Because of the efficient manner in which ALIF 2002T constructs data for IP transmission you can make use of standard wireless routing to connect these receiver and transmitter units to your network.
