Adder Command & Control Switch, 4 Port USB and Audio KM Switch

CCS-PRO4-US

$750.00$675.00
Save $75.00
Model: 4 Port
FREE Shipping on orders over $100
For Government Pricing
Contact Us

The Adder CCS-PRO4 enables users to interact with up to 4 computers using a single mouse. The operator can simply move the cursor across screen borders to instantly select the computer they need to control, providing the experience of a single desktop - a great saving in both time and desk space.

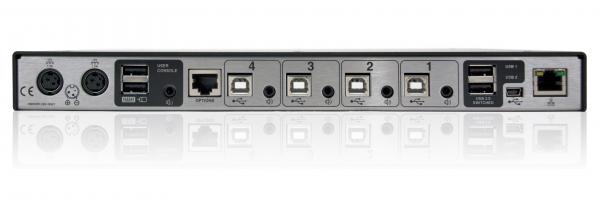

Adder CCS-PRO4 Command and Control Switch Back View

See Detailed Layout

Adder CCS-PRO4 Mouse Switching Application Diagram

Adder CCS-PRO4 Features

  • Adder CCS-PRO4 mouse switching with Adder Free-Flow technology

    Seamless switching with Adder Free-Flow technology

    Free-Flow allows users to automatically switch between target computers simply by moving the mouse pointer from screen to screen. Unlike software-only variants, no software or networking is required on your mission critical computers for Free-Flow to work.

  • Adder CCS-PRO4 Improved desk ergonomics

    Improved desk ergonomics

    With only one keyboard and mouse required to operate four computer systems, the desk space can be made more ergonomically effective and reduces the time taken for operators to multiplex to different systems.

  • Adder CCS-PRO4 Multi-Monitor Free-Flow

    Multi-Monitor Free-Flow

    The CCS-PRO4 system is able to support up to eight monitors per computer. To enable Free-Flow on multi-monitor computers, a driver must be installed on the target computer. This feature is currently available for Windows computers only.


  • Adder CCS-PRO4 Channel selection

    External control options

    The CCS-PRO4 unit can be controlled and switched via hotkeys, mouse clicks, Ethernet, Serial RS232 or remote 3 button mouse. Optionally, you can also use the RC4 remote switch to make your selection. With the open API, the unit can be easily set up and integrated into 3rd party systems.

  • Adder CCS-PRO4 USB Cable

    Instant switching with True USB Emulation

    Adder's True USB Emulation technology overcomes limitations of other KVM switches by emulating the true character of the connected devices to all the computers simultaneously. This means that you can use the extra function keys, wheels, buttons and controls, without sacrificing switching times.

  • Adder CCS-PRO4 On-Screen-Display (OSD) Diagram

    Independent simultaneous device selection

    Switching options enable you to use the keyboard and mouse on one computer whilst your USB peripherals and speakers are independently connected to different computers. You can of course still switch all the connected devices to any one of the connected computers.


  • Adder LED Light Module for CCS-PRO4 Free-Flow Switch

    Screen illumination module

    The CCS-XB illumination module is an optional accessory which connects to the CCS-PRO4. It gives users the option to have a LED indicator positioned on each screen to identify which screen is currently controlling. The color and intensity can be controlled for each screen. A maximum of ten LED indicators can be supported.

  • Adder CCS-PRO4 Dual-AC redundant power

    Redundant power

    For mission critical applications, CCS-PRO4 now supports dual power inlets (Dual-AC). If one source fails, the CCS-PRO4 will switch sources to the other power supply, so as not to interrupt normal use of the connected servers.

  • Adder CCS-PRO4 Keep-alive function

    Keep-alive function

    Users have the option to choose which computers stay alive. This prevents target computers from sleeping while not in use.

  • Adder CCS-PRO4 Audio cable

    Audio Mixing

    Users can choose which source audio to hear. Nominate all or your own choice of computer(s) audio, no matter which computer you are using.


CCS-PRO4-US Package Contents

Adder CCS-PRO4 Package Contents

  • (1) CCS-PRO4 KM Switch
  • (1) PSU-IEC-12VDC-1.5A Power adapter and US-specific power lead
  • (1) Information wallet containing: Quick start guide and Safety document
  • (4) Self-adhesive rubber feet
  • (1) 2-Year Limited Warranty & Lifetime World Class Support

Adder CCS-PRO4-US Specifications

Mechanical
Height 30mm/1.2"
Width 290mm/11.4"
Depth130mm/5.1"
Power Toby 3 pin jack x 2 (one power adapter included),100-240VAC 50/60Hz, 0.7A, input to power adapter. 12VDC, 18W output from power adapter.
Compatibility
Hardware compatibilityAll computers equipped with certified USB1.1 and USB2.0 connections.
Software compatibilityAll known operating systems for single screens except Linux operating systems, which often have no native support for absolute mouse positioning.
User Console ConnectionsAudio 3.5mm out x 1, USB type A x 2 (Console- USB2.0 Low and Full Speed), USB type A x2 (Enumerated USB2.0 Low, Full and Hi-Speed).

CCS-PRO4 is also known as the CCS-PRO4-US and CCS-PRO4-USA.

Question: Does the ADDER CCS-PRO4 have sound and mic? if not do you have a product that takes 4 PC and has sound and mic for a control room
Answer: Thank you for your inquiry. The CCS-PRO4 does have support for sound; but unfortunately, there is no dedicated 3.5mm mic input. There are several USB ports that could be used to share a USB mic.

For dedicated mic support there might be several options, depending on your specific needs. Please contact your KVM Switches Online Representative at 1-877-586-6654, via our online chat feature or by email: sales@kvm-switches-online.com to discuss your project in greater detail.

Question: Is this product compatible with Apple OS10.10.x (Yosemite) and above? The old model I bought from you in 2012 works only with 10.9.x and below.
Answer: Thank you for your inquiry,

CCS-PRO4 units should work with Apple systems running OS X 10.xx.x. I had Adder test a CCS-PRO4 with a MacBook Pro running OS X 10.11.1 and had no issues with keyboard/mouse control.

Please note that free-flow only works with Apple systems with a single monitor connected. Apple computers with two or more monitors would still work thru a CCS-PRO4 (or CCS4-USB) but Free-flow will need to be turned off.

Question: Does adder have a device to globally manage multiple PRO4's ?
Answer: Thank you for your inquiry,

As of 07/27/2018, not currently. Adder AIM Manager is only compatible with Infinity and C-USB-LAN devices. For now, CCS-PRO4 units need to be updated/configured independently.

Question: Would the CCS-PRO4 would support a peripheral Genovation keypad? e.g. https://store.genovation.com/programmables/cp24-usbhid.html
Answer: Thank you for your inquiry,

As long as the manufacturer of the keypad supports the use of USB hubs the device should work, connected to one of the USB switched ports. It will likely not work connected to one of the emulated ports.

If the keypad needs to be switched between computers, when channels are changed e.g. the user switches from computer 1 to 2 the keypad will be disconnected from one computer and connected to the next. Depending on the computer treats these reconnects the keypad may not be available for a few seconds (till the USB enumeration process finishes on the computer).
