9U 20" Rack Mount LCD Panel

RP-920

$1,144.00
Model: 9U 20"
FREE Shipping on orders over $100

The RP920 is a 9U 20" rackmount LCD monitor  with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

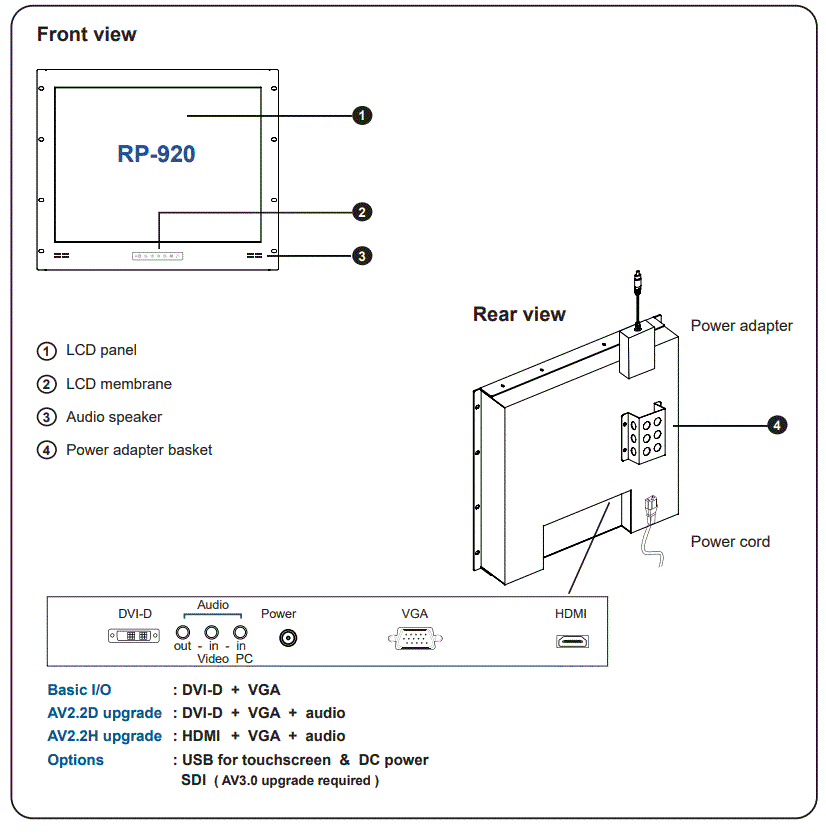

Austin Hughes CyberView RP-920 Diagram

RP-920 Features

  • 9U 20" rackmount LCD with DVI-D/VGA input
  • Ultra high resolution 1600x1200 for RP-920
  • Ideal for CCTV security and industrial control

Available upgrade options

  • 3G/HD/SD-SDI Broadcast-grade input
  • MCS Multi-display control solution
  • 20" Touchscreen: Resistive
  • S-Video + Composite (BNC) or Audio input
  • HDMI or DVI-D (Either one for AV2.2 upgrade)
  • DC power: 12V/24V/48V/110~125V
  • MIL-type or lockable connector

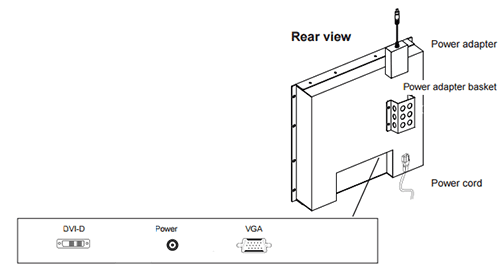

RP920 Rack Mount LCD
RP920 Rack Mount LCD

RP-920 Package Contents

CyberView RP-920 Package Contents
  • (1) RP-920 Rack LCD Panel
  • (1) 6ft VGA cable
  • (1) Power adapter
  • (1) Power cord
  • (1) 2-year standard warranty ( upgradable up to 5 years )

RP-920 Specifications

Mechanical
Product Dimensions (H x W x D)15.7 x 18.9 x 2.5 in
( 399 x 480 x 64 mm )
Package Dimensions (H x W x D)20.8 x 23 x 4.9 in
( 529 x 583 x 124 mm )
Net Weight18.7 lb ( 8.5 kg )
Gross Weight24.2 lb ( 11 kg )
Console Ports
Video InputVGA + DVI-D single link
Video OptionHDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
LCD Screen
LCD panel size ( diagonal )20.1"
Backlight typeCCFL
Native resolution1600 x 1200
Brightness (cd/m2)300
Colors16.7 M
Contrast Ratio (typ)800 : 1
Viewing angle ( L/R/U/D ) 89/89/89/89
Viewing angle (H x V) 178° x 178°
Response time ( ms )16
Dot pitch ( mm )0.255
Display area ( mm )408H x 306V
Surface treatmentAnti-glare Hard-coating
Surface hardness3H
MTBF (hrs)45,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen onMax. 48W
Power saving modeMax. 4W
Power button onMax. 1W
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant

The RP-920 series is also known as the RP920.

Question: Hello, for this price the touch panel is included? thank you
Answer: Thank you for your inquiry. This price does not include touchscreen capability. For touch panel options and pricing, please call 1-877-586-6654.

Question: Would you please advice quotation for QTY 15pcs
Answer: Thank you for your inquiry. Please either send us a valid email address to send your quote to or give us a call at 1-877-586-6654.

Question: Part # RP-920 Looking for 32pc. What is cost and availability?
Answer: Thank you for your inquiry. For all stocking and pricing questions, please contact your KVM Switches Online representative directly at 1-877-586-6654 or via our online chat feature.

Question: Please can you give me the part number for RP-920/AV2.2D with 24 Vdc Power options?
Answer: Thank you for your inquiry. The part number would be very similar to: RP-920/AV2.2D-24VDC


Question: How do you switch between VGA or DVI-D input?
Answer: Thank you for your inquiry. We apologize, the image in the body of this page needs to be updated. The newer inputs are VGA and DVI-D rather than VGA with S-Video and composite connections depicted. To switch between the two inputs, a user would simply plug into the needed video input.
