Raloy 1U 19" Dual Rail LCD Monitor Keyboard Drawer w/ Touchpad

RD119e

$1,400.00$1,293.00
Save $107.00
Integrated KVM: Console Only (1-Port)
FREE Shipping on orders over $100

The Raloy RD119 dual slide rack console features a 19" LCD and full 104 key keyboard with touchpad, each slides on independent rails to allow the monitor to stay up while the keyboard is stored. The RD119 offers a space saving, streamlined approach to your rack environment by integrating your monitor, keyboard, mouse and optional KVM in a single unit.

Setup is fast and easy. Simply plug in this cutting edge modular rack console with optional integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the monitor and built-in keyboard and mouse. To conserve valuable rack space, independent rails to allow the monitor to stay up while the keyboard is stored, or close the cover and slide the console module back out of the way when finished.

Raloy RD119 Dual Slide Rack Console Drawer

Raloy RD119 UL, cUL, CE, FCC, CCC, ROHS, REACH Rack Mount Monitor Certifications

  • Stow-able Keyboard

    Conceal keyboard when not needed.

  • Space Saving

    Short depth (18.1" deep) 2nd Gen 19″ LCD drawer in 1U.

  • Modular Options

    Support for various keyboard, mouse, video input, audio speaker, power, and KVM options.

  • Certified Quality

    UL Approved.

RD119 Features

  • 19 in. LCD - 1280 x 1024 Max. Resolution
  • 1U rack console drawer w/ dual slide rails: retractable keyboard & independent LCD display
  • Mounting depth from 21 in. to 38 in. (533 to 965 mm.)
    (Note: optional configurations may increase min and max mounting depths)
  • Full 104 key notepad keyboard w/ number pad and integrated touchpad
  • Combo interface w/ PS/2 or USB input
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more
  • Integrated KVM options can scale as your needs change
  • New easy to maneuver front handle with two point lock system
  • 6-foot combo cable included (RCE-6)
  • 24 Month Limited Warranty - Extended Warranties available for purchase

RF117HD Modular Options

Video

  • VGA (standard)
  • DVI-D
  • HDMI with Audio
  • HDMI with Audio, & USB-C via USB-C to HDMI & USB Adapter
  • HDMI (HDCP) + VGA / DVI-D
  • BNC + S-Video
  • 3G/HD/SD-SDI [HSDI]

Audio

  • None (standard)
  • 2x 2W Speakers + Audio Input & Output

Mouse

  • Glidepoint Touchpad (standard)
  • Trackball

Keyboard

  • 104-key notepad US keyboard (standard)
  • Available in 14 international languages

Power

  • 100 to 240V AC (standard)
  • 12V DC
  • 24V DC
  • 48V DC
  • 110V DC
  • 125V DC

For help with your custom configuration, please feel free to Contact Us.

Integrate KVM Switch Into 1RMU

Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.

KVM Type


Single-User 12-Port DVI-D, USB 3.0 KVM w/ Cables

RD119 with
DVI-D KVM



Raloy RD119 Cat6 KVM Switch

RD119 with
High-Density
Cat6 KVM

Raloy RD119 DB-15 VGA KVM Switch

RD119 with
VGA
DB-15 KVM

Raloy RD119 VGA USB Hub KVM Switch

RD119 with
VGA
DB-15 KVM
with USB Hub
KVM Port ConnectionDVI + USBCat6 KVM PortDB-15 KVM PortDB-15 KVM Port
Ports1232 / 16 / 816 / 816 / 8
KB / MSUSBUSB / PS2USB / PS2USB
VideoDVI-DVGA / DVI /
HDMI / DP / USB-C
VGAVGA
Local User1111
Network IP Access Users00 to 20 to 20 to 1
Extended Remote Users (500 ft)00 to 30 to 30 to 1
USB Peripheral Port2 x USB 3.0----2 x USB 2.0
AudioAnalog------
Max. Distance (KVM to Server)15 Ft
/ 4.5 M
130 Ft
/ 40 M
15 Ft
/ 4.5 M
15 Ft
/ 4.5 M
Cascade Levels--88--
Integrate Integrate Integrate Integrate

RD119 Package Contents

Raloy RD119 Whats Included?

  • (1) RD119 Dual-Rail Rack Console
  • (1) RCB-6 VGA/USB console cable
  • (1) US Power Cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 24 Month Limited Warranty
    - Extended Warranties available for purchase
  • *Additional parts may be included based on options

RD119 Resources

Raloy RD119 Resources RD119 Datasheet (PDF)
RD119 Manual (PDF)

Instructional Media

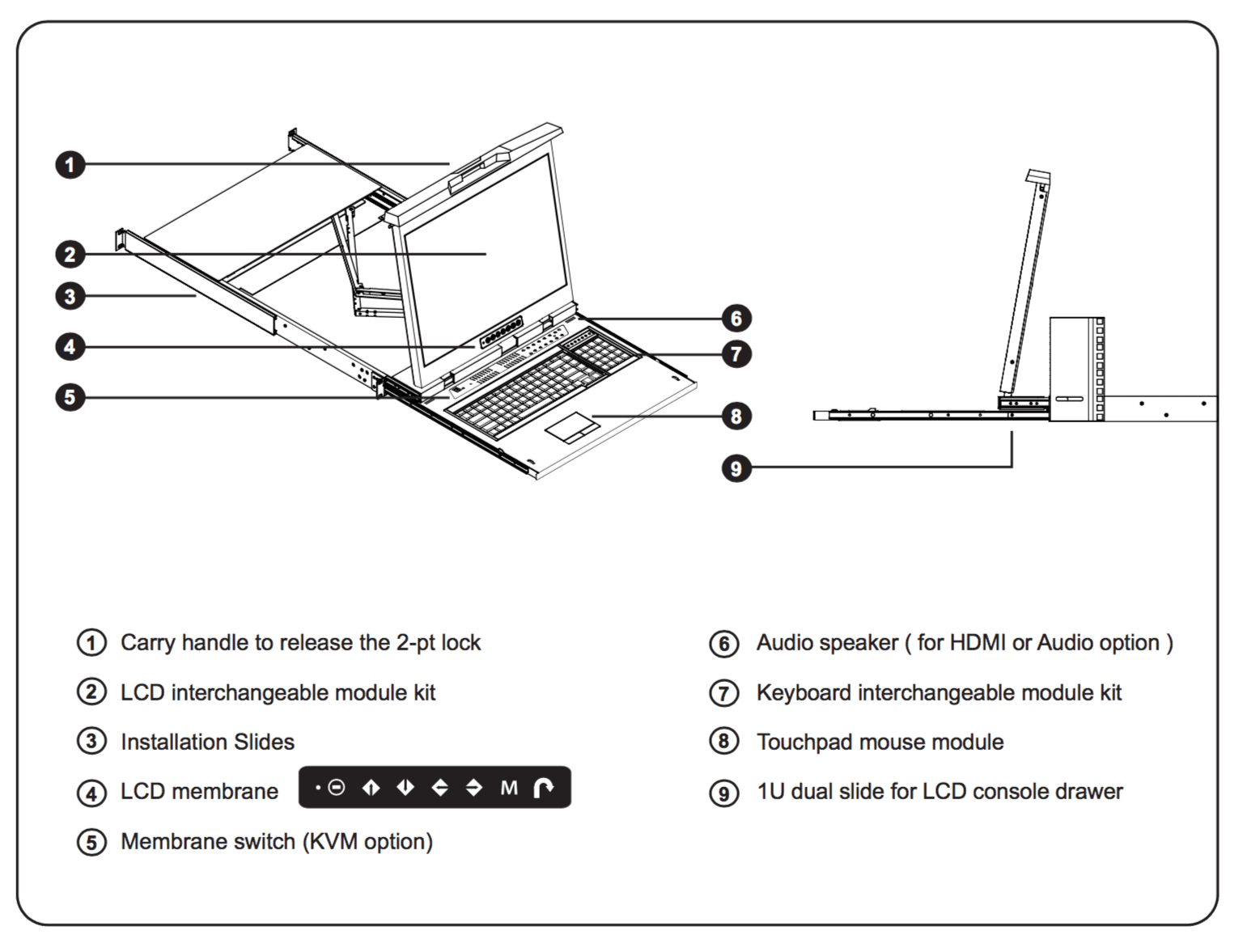

RD119 Diagram

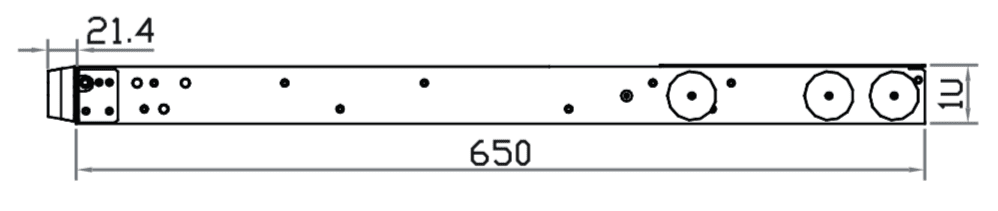

RD119 Side View

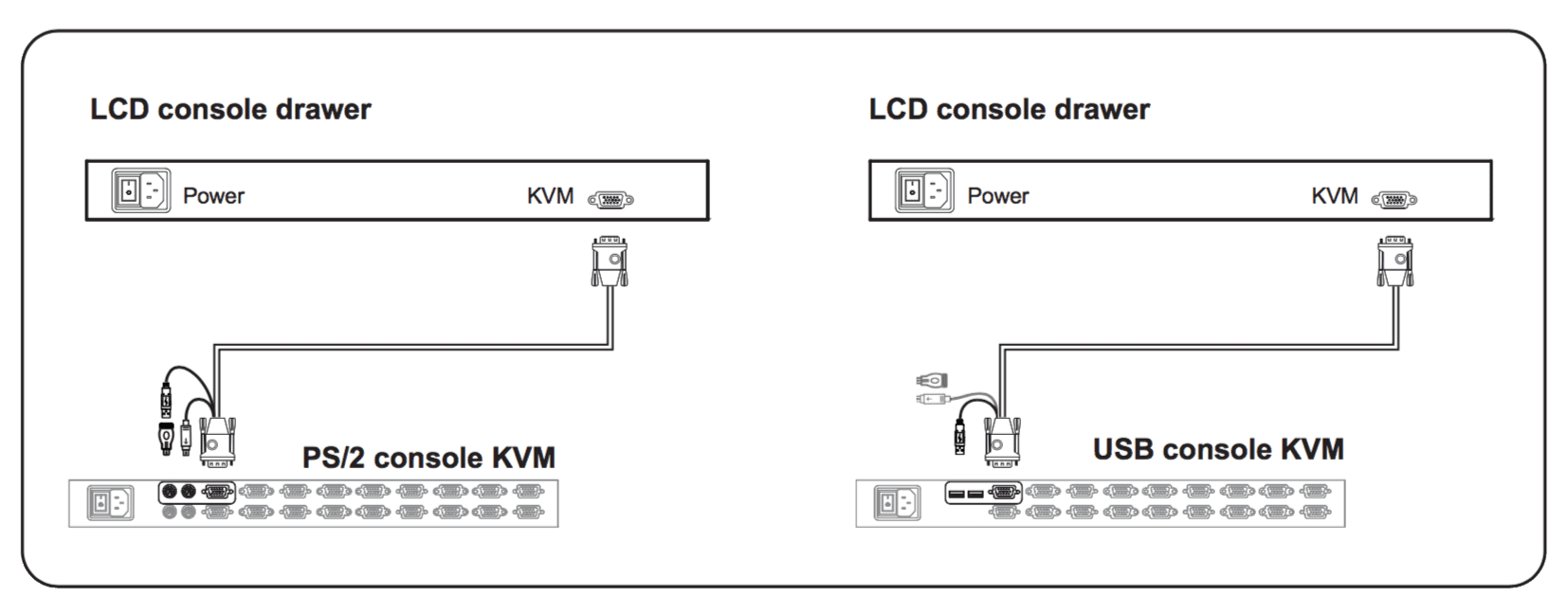

RD119 VGA to KVM Diagram

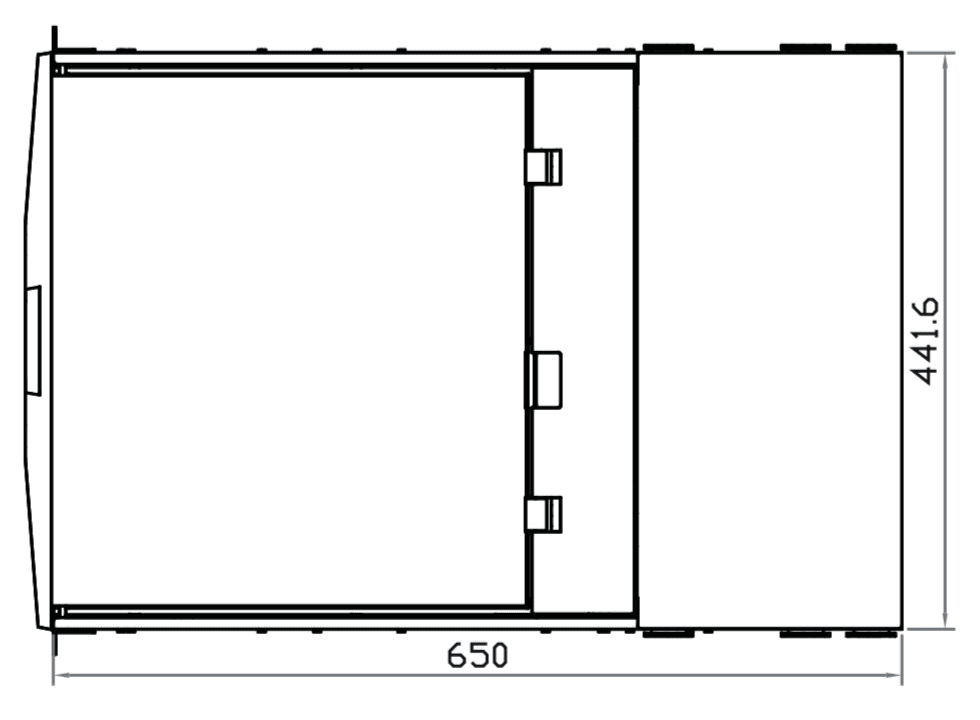

RD119 Top View

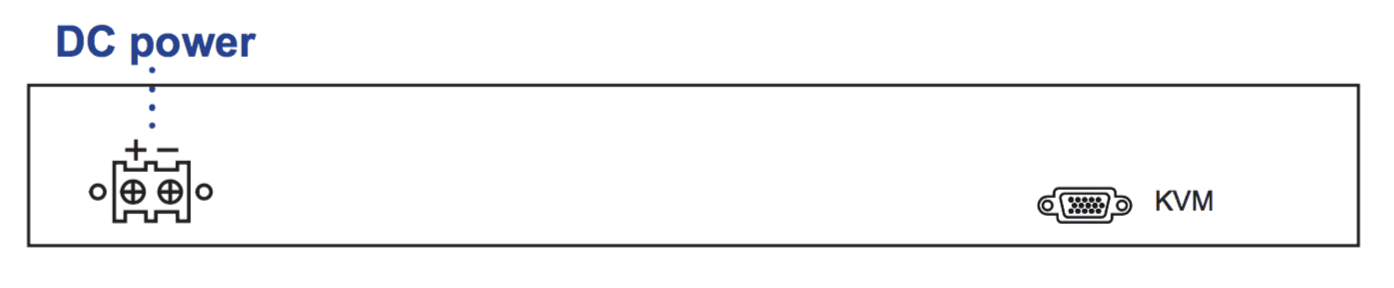

RD119 Rear DC Power Diagram

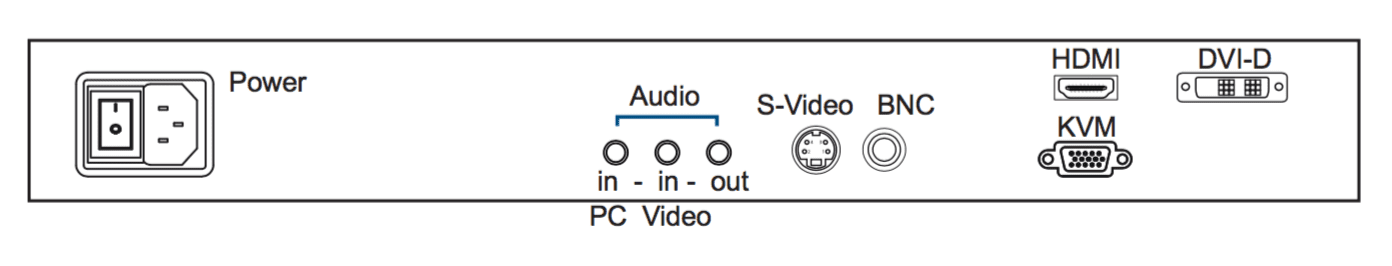

RD119 Rear Audio & HDMI Diagram

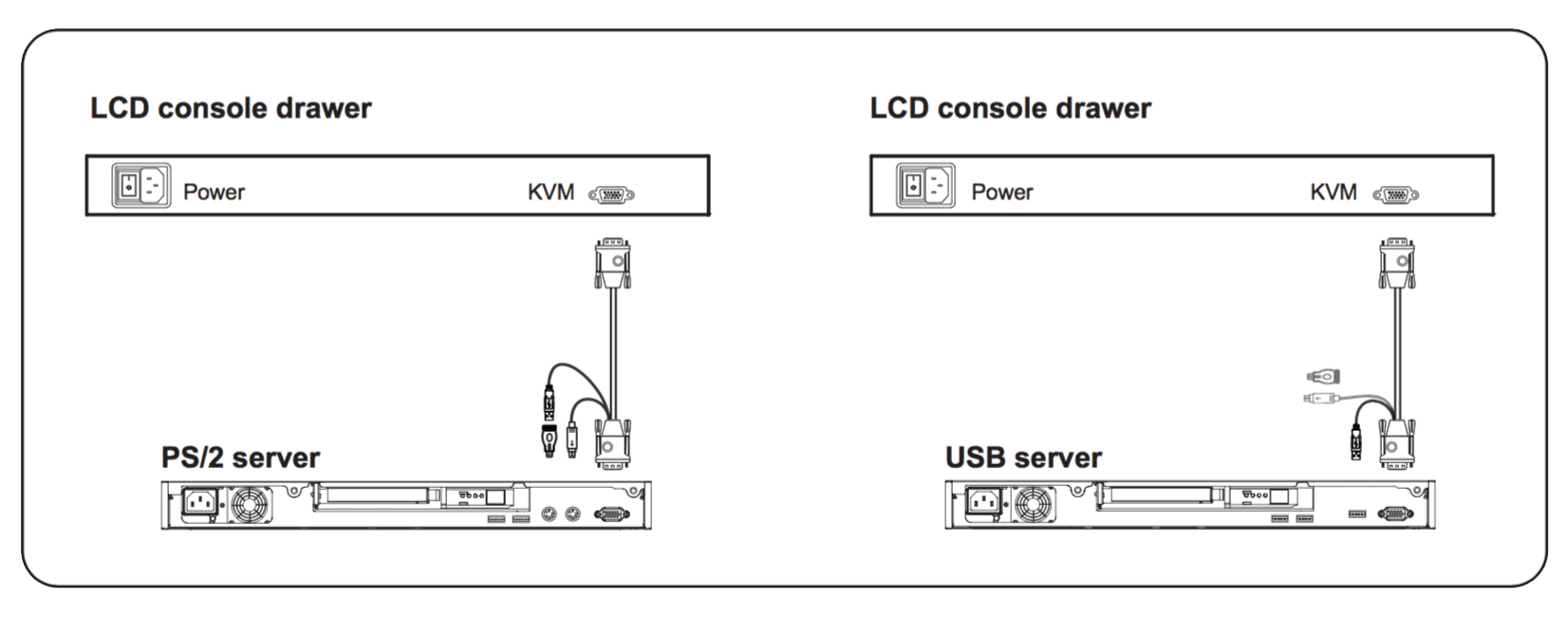

RD119 VGA Cable Diagram

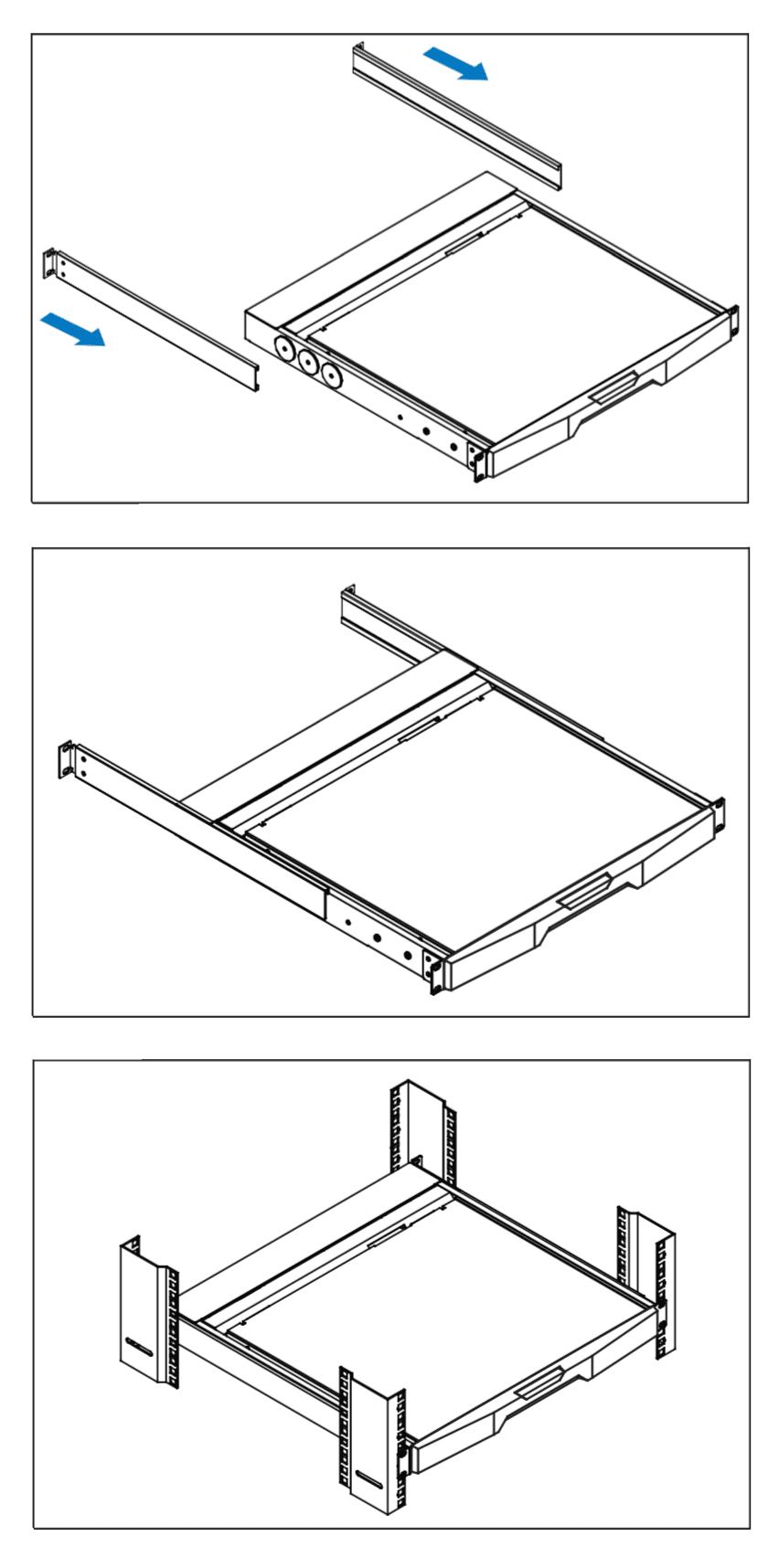

RD119 Installation Diagram

Raloy RD119 Specifications

Mechanical*
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth25.6 in. (650 mm.)
Package Dimensions23.4 x 33.9 x 5.5 in.
(595 x 860 x 140mm)
Mounting Depth21 in. (min) to 38 in. (max)
(534 to 965 mm)
Form Factor1U rack mounting on dual slide-out rails
Net Weight29 lbs. (13.2 kg.)
Gross Weight41.8 lbs. (19 kg.)
Environmental
Operating Temperature32 to 122°F
(0° to 50°C)
Storage Temperature23 to 140°F
(-5° to 60°C)
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC,
50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size19" TFT
Max. Resolution1280 x 1024
Brightness (cd/m2)250
Color Support16.7 Mil.
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)170° x 160°
Display Area (mm)376 x 301
Response Time (ms)5
VGA Signal InputAnalog RGB, 0.7Vp-p
Sync. TypeSeparate H/V, Composite, SOG
Resolution1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Plug & Play DDCEDID 1.3
Console PortVGA + USB or PS/2, server end
DB15 (VGA, USB KB/MS), console side
CompatibilityMix various PC, SUN, MAC, IBM,
HP & DELL servers
Regulation ApprovalcUL, FCC & CE certified
RoHS2 & REACH compliant

* Dimensions and weights are for rack console only. Any optional configurations and or integrated KVM selections will change the dimensions and weights accordingly.

The RD119 series is the first Raloy dual slide rack console and part of the RD family of Raloy rack mount console drawers.

Question: What is the replacement for this p/n? W119-1602E 16 PORT KVM SWITCH
Answer: Thank you for your inquiry,

The W119 was replaced by the second generation WX119 console. The 1-1 replacement including the 16 port KVM switch (1 local, 1 extended user) is the RWX119-CATx21016 (found on our sister site).

If you would like a recommendation based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.

Question: What is the tilt angle of the monitor?
Answer: Thank you for your inquiry,

The Raloy RD119 display tilts from 0? (closed) to right around 100? (open). The 19" display (381.9mm H x 214.8mm V) has a viewing angle (L/R/U/D) of 170?.

Please let us know if there is anything else we can help you out with, or would like any help configuring your application.

Question: What is the distance between the rack and the monitor when the rails are fully extended and the monitor is upright?
Answer: Thank you for your inquiry,

The RD119 has approximately 2.5 inches between the unit and the front of the rack when the unit is fully extended out and upright.

Please let us know if there is anything else we can help you out with; Happy to help!

Question: Is the monitor able to stand upright at 90 Degrees (without any support) without leaning forward?
Answer: Thank you for your inquiry,

We have several Raloy console drawers at our office, and after testing, this RD119, the RWX119, and the RF117HD were all able to stay open independently (without any support) anywhere from 15? up to 100? - including 90?. The hinges have positive resistance to keep the display in any position over.

"We have these in military planes, boats, etc. and have not heard of any problem with degradation of the hinge resistance over time." - Raloy

Question: How long will the RD119 be available?
Answer: Thank you for your inquiry,

Raloy console drawers usually have a 5-7 year technology refresh or advancement cycle. You can also extend your warranty support up to 5 years. Let us know if we can provide a quote for you.

Question: I have a question about the DC Power terminal & Ground screw on the rear of this KVM. What sizes are the screws for the DC terminal (+/-) and ground screw? I can't seem to find this info on the manual for this KVM.
Answer: Thank you for your inquiry,

The screw size for DC terminal is 3mm, and the ground screw is 4mm.

Please let us know if there is anything else we can help you with!

Question: What is the HTS code and ECCN number for the Raloy RD119?
Answer: Thank you for your inquiry,

See below for Export Classification information for the RD119:

ECCN: 8528.51.0000
HTS: 4A994

Please let us know if there is anything else we can help you with!
