Aten KE Series - IP KVM Extender / Over-IP Matrix

4K KVM-Over-IP connectivity for the control room of the future

Every Inch Matters, Perfect for All Short Racks


Aten KE-Series Comparison


ModelAten KE9950
KE9950
Aten KE9952
KE9952
Aten KE9900ST
KE9900ST
Support InterfaceDisplayPortDisplayPortDisplayPort
Max. Video Resolution3840 x 2160
@30Hz
3840 x 2160
@30Hz
1920 x 1200
@60Hz
HDCP1.31.31.3
Audiocheck_circlecheck_circlecheck_circle (Digital)
Mouse Emulationcheck_circlecheck_circlecheck_circle
Tx Local Consolecheck_circlecheck_circleN/A
Boundless Switchingcheck_circlecheck_circlecheck_circle
Fast Switching *check_circlecheck_circlecheck_circle
Dual Video OutputN/AN/AN/A
Video Wall *check_circlecheck_circlecheck_circle
RS-232check_circlecheck_circlecheck_circle
OSDcheck_circlecheck_circleN/A
Virtual Mediacheck_circlecheck_circlecheck_circle
Virtual USBcheck_circlecheck_circleN/A
PoEN/Acheck_circleN/A
LAN1 Gbps1 Gbps1 Gbps
Network InterfaceRJ45 (SFP)RJ45 (SFP)RJ45
ModelAten KE8950
KE8950
Aten KE8952
KE8952
Aten KE8900S
KE8900S
Max. Video Resolution3840 x 2160
@30Hz
3840 x 2160
@30Hz
1920 x 1200
@60Hz
HDCP1.41.41.4
Audiocheck_circlecheck_circlecheck_circle (Digital)
Mouse Emulationcheck_circlecheck_circlecheck_circle
Tx Local Consolecheck_circlecheck_circleN/A
Boundless Switchingcheck_circlecheck_circlecheck_circle
Fast Switching *check_circlecheck_circlecheck_circle
Dual Video OutputN/AN/AN/A
Video Wall *check_circlecheck_circlecheck_circle
RS-232check_circlecheck_circlecheck_circle
OSDcheck_circlecheck_circlecheck_circle
Virtual Mediacheck_circlecheck_circlecheck_circle
Virtual USBcheck_circlecheck_circleN/A
PoEN/Acheck_circleN/A
LAN1 Gbps1 Gbps1 Gbps
Network InterfaceRJ45 (SFP)RJ45 (SFP)RJ45
ModelAten KE6910
KE6910
Aten KE6912
KE6912
Aten KE6900
KE6900
Aten KE6940
KE6940
Aten KE6900ST
KE6900ST
Support InterfaceDVI-DDVI-DDVI-I2*DVI-IDVI-D
Max. Video Resolution2560 x 1600
@60Hz
2560 x 1600
@60Hz
1920 x 1200
@60Hz
1920 x 1200
@60Hz
1920 x 1200
@60Hz
HDCPN/AN/AN/AN/AN/A
Audiocheck_circlecheck_circlecheck_circlecheck_circleN/A
Mouse Emulationcheck_circlecheck_circlecheck_circlecheck_circlecheck_circle
Tx Local Consolecheck_circlecheck_circlecheck_circlecheck_circleN/A
Boundless Switchingcheck_circlecheck_circlecheck_circlecheck_circlecheck_circle
Fast Switching *check_circlecheck_circlecheck_circlecheck_circlecheck_circle
Dual Video OutputN/AN/AN/Acheck_circleN/A
Video Wall *check_circlecheck_circlecheck_circlecheck_circlecheck_circle
RS-232check_circlecheck_circlecheck_circlecheck_circlecheck_circle
OSDcheck_circlecheck_circlecheck_circlecheck_circleN/A
Virtual Mediacheck_circlecheck_circlecheck_circlecheck_circlecheck_circle
Virtual USBcheck_circlecheck_circlecheck_circlecheck_circleN/A
PoEN/Acheck_circleN/AN/AN/A
LAN1 Gbps1 Gbps1 Gbps1 Gbps1 Gbps
Network InterfaceRJ45 (SFP)RJ45 (SFP)RJ45RJ45RJ45

* Supported via the KE Matrix Management Software (CCKM)


Aten KE-Series Features

  • Effortless over IP Digital Media Extension

    Effortless over IP Digital Media Extension

    Eliminates the distance restrictions of control room management; enables a faster response to mission-critical data center emergencies; all models support unlimited distances via Cat 5e/6 over a LAN, while the KE9952 / KE9950 / KE8952 / KE8950 also support connectivity via a SFP fiber optic transceiver module over an optical Ethernet network.

  • Exceptional Video Quality up to 4K

    Exceptional Video Quality up to 4K

    The Aten KE-series supports resolutions up to 3840x2160 @ 30Hz (KE9952 / KE9950 / KE8952 / KE8950) at 36-bit color depth, and 1920x1200 @ 60Hz (KE6940 / KE6900 series) at 24-bit color depth


  • Intuitive Boundless Switching

    Intuitive Boundless Switching

    The Aten KE-series offers an intuitive way to switch control to another receiver by simply moving your mouse cursor across the screen border and onto the target computer display. Unrestricted Switching Direction allows the mouse cursor to move in any direction to switch the control focus.


  • Powerful Centralized Management

    Powerful Centralized Management

    ATEN's KE Matrix Management Software (CCKM) makes it easy to define connections and manage all KE devices over a network with a new intuitive user-friendly web based GUI; administrators can set three permission types Admin, Super User, and User, to meet user and shared access requirements.

  • All Popular Interfaces Supported

    All Popular Interfaces Supported

    ATEN's KE product range supports interfaces from DisplayPort, HDMI, and DVI, to fulfill every demand from any control room environment. Mix-and-match different transmitters & receivers for a truly flexible solution.

  • Secure Data Transmission

    Secure Data Transmission

    The Aten KE KVM over IP Extenders utilizes AES-128 bit encryption to secure all data before it's transmitted over a network and is decrypted on the receiver end to ensure no eves-dropping.


  • Fast Switching

    Fast Switching

    ATEN's unique Fast Switching technology features instant switching, even between different video resolutions, providing immediate viewing of critical information for video surveillance or monitoring applications.

  • Unbeatable Video Wall Versatility

    Unbeatable Video Wall Versatility

    With unprecedented video quality and unmatched resolutions, the native video wall functionality allows users to create multiple video walls with up to 8 x 8 displays in each layout in various configurations, offering outstanding flexibility and scalability without need for a separate video wall processor.


Aten KE-Series Uses

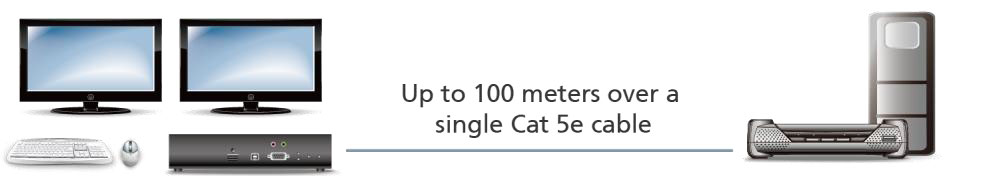

Extender mode (One-to-One)

This is the simplest setup; using a single transmitter to receiver connection that extends a computer's distance from the keyboard, mouse and monitor. One-to-one setups can be directly connected by a Cat 5e/6 cable between two units - up to 100 meters (KE89xx & KE99xx models can also be connected via optical fiber cables for distances up to 10 kilometers).

You can also manage point-to-point connections, set up over a LAN with no distance limitations, by assigning each device an IP address.

Aten KE Series Point-To-Point Extension Application Diagram

Switching Mode (Many-to-One)

Many-to-One: With the KVM over IP Extenders you can configure how to share a computer when multiple users access it, with 4 modes: Exclusive (first user has control - others no access); Occupy (first user has control - others view only - when first is inactive - next user to move mouse takes control); Shared (all users have access and control at the same time); or View Only (no control - users can only view the video display).

* For point-to-multipoint use, the installation requires a network switch with IGMP functionality.

Aten KE Series Switching KVM Over IP (Many-to-One) Application Diagram

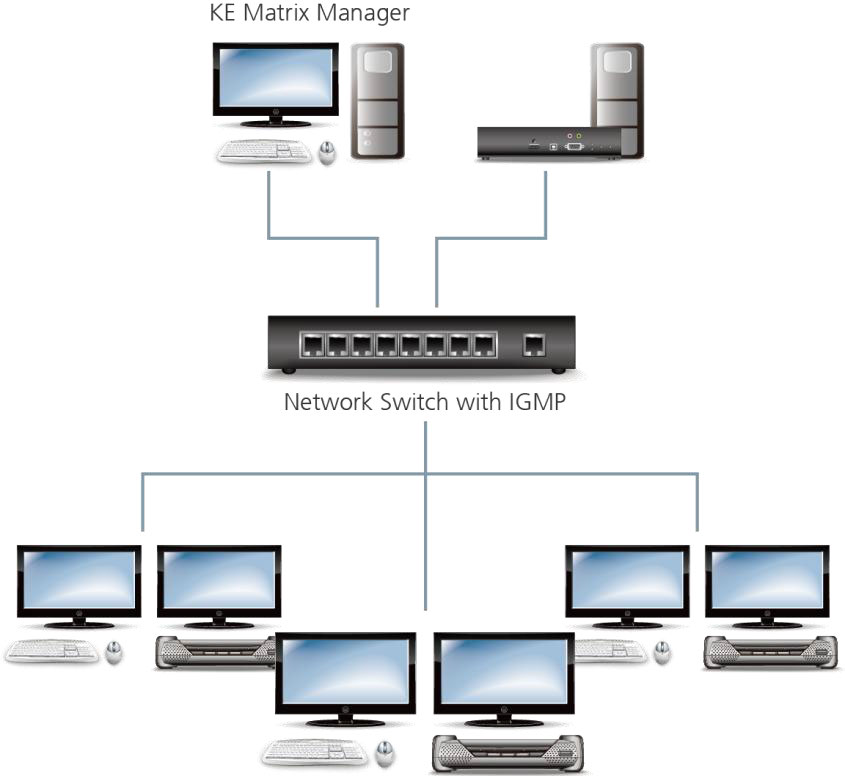

Splitter mode (One-to-Many)

One-to-Many: With the KVM over IP Extenders you can configure how to share a computer when multiple users access it, with 4 modes: Exclusive (first user has control - others no access); Occupy (first user has control - others view only - when first is inactive - next user to move mouse takes control); Shared (all users have access and control at the same time); or View Only (no control - users can only view the video display).

* For point-to-multipoint use, the installation requires a network switch with IGMP functionality.

Aten KE Series Splitter (One-to-Many) Application Diagram

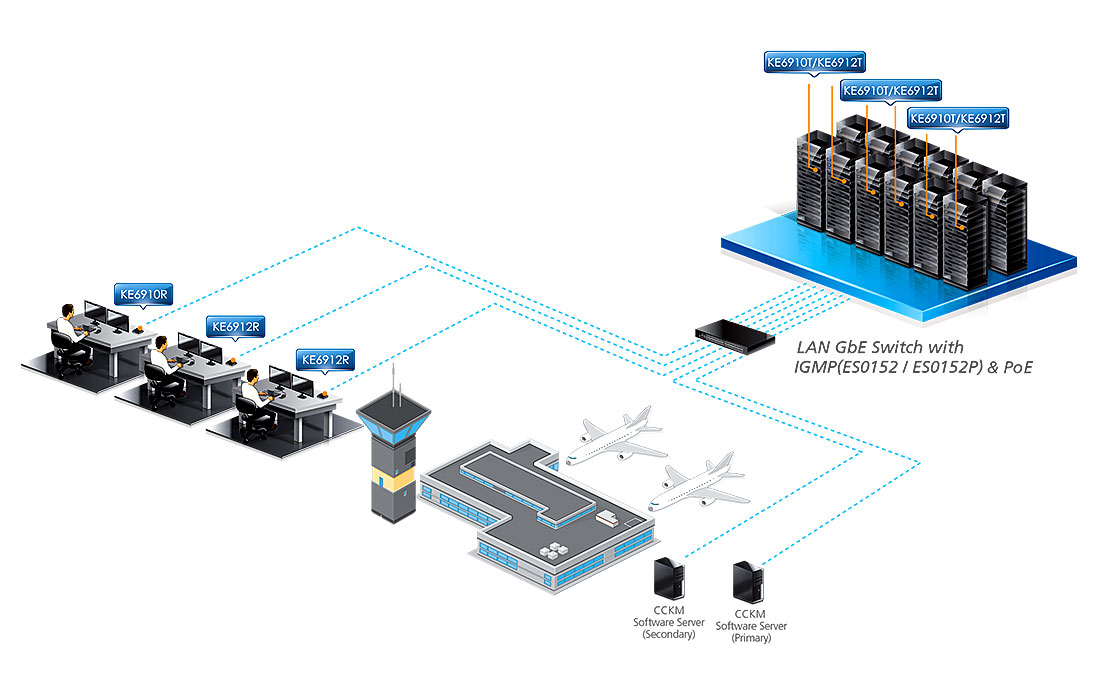

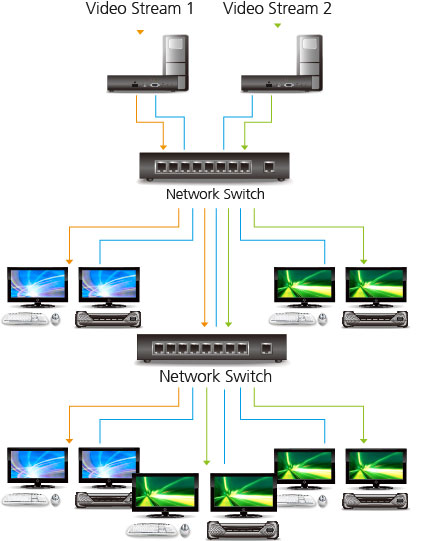

Matrix mode (Many-to-Many)

Many-to-Many: Delivering the ultimate in flexibility and performance, in this mode the ATEN KVM Over IP Matrix System provides the ability to access, switch, share, and multicast computer resources among multiple KVM consoles across a network. This provides dynamic and flexible extender setups with superior video quality and smooth KVM operations without delays or lags. Utilizing network bandwidth efficiently and intelligently is paramount, particularly with video intensive applications for media post production, live video streams and monitoring control. Multicasting helps optimize network traffic by directing information to the designated receivers without increasing network bandwidth.

* For multipoint-to-multipoint use, the installation requires a network switch with IGMP functionality.

Aten KE Series Matrix (Many-to-Many) Application Diagram

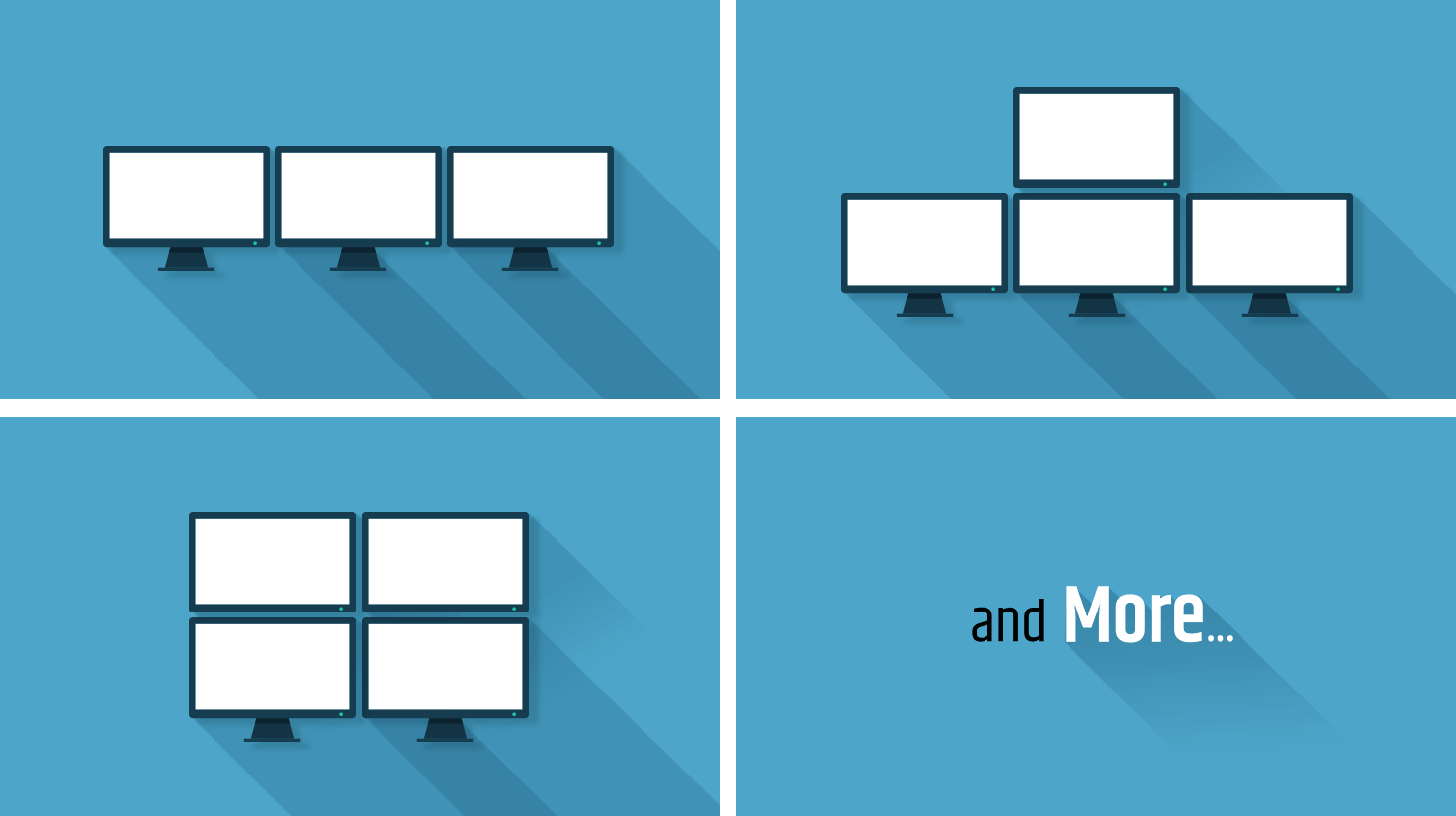

Video Walls & Command Centers

ATEN's CCKM KE Matrix Management Software allows you to create custom video walls. The KVM over IP Matrix System's multicast functionality means it is able to broadcast packets. When the network switch receives the packets, it simultaneously sends them to all of the designated KVM over IP Extenders in the installation for display:

Aten KE Series Video Walls & Command Centers

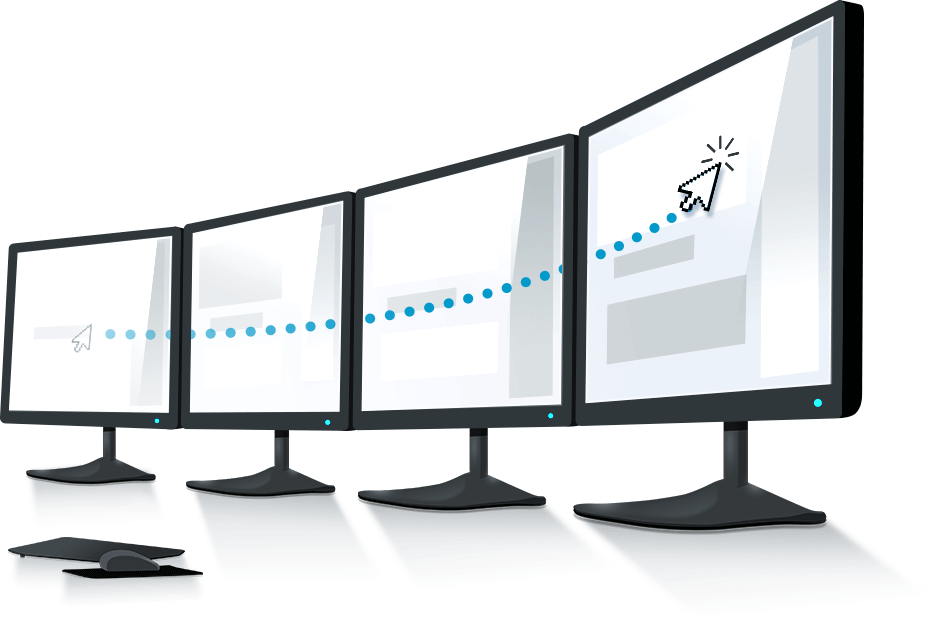

ATEN Boundless Switching - Intuitive Mouse Switching

ATEN's Boundless Switching is an intuitive way to switch control to another computer by simply moving your mouse across your display or window borders. Unrestricted Switching Direction allows the mouse cursor to move in any direction to switch the control focus without any limitations.

ATEN Boundless Switching - Intuitive Mouse Switching
Matrix or Multi-view

ATEN offers a wide product range for every imaginable boundless switching scenario, no matter whether it's switching across windows or switching across displays.

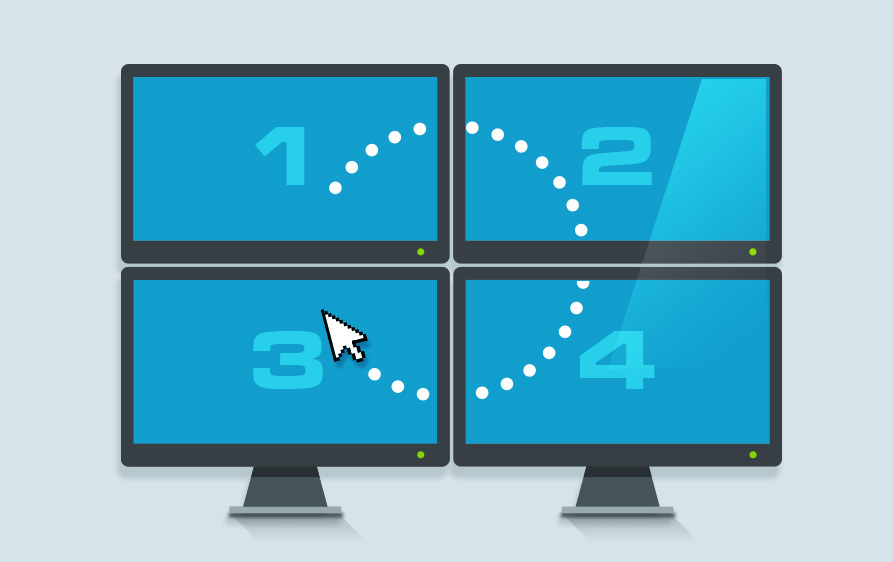

Aten Boundless Mouse Switching Across Displays

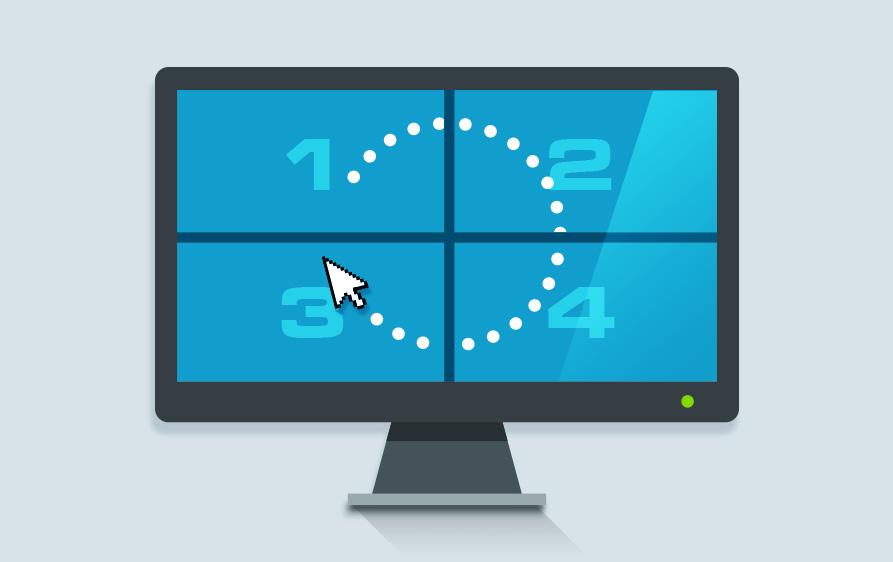

Aten Boundless Mouse Switching Across Windows

* Supported via the KE Matrix Management Software (CCKM)

Aten KE-Series Applications

Facility Situation Rooms
Network Operation Centers
Utilities Process Control Centers
Traffic Management Centers
Retail Surveillance Centers

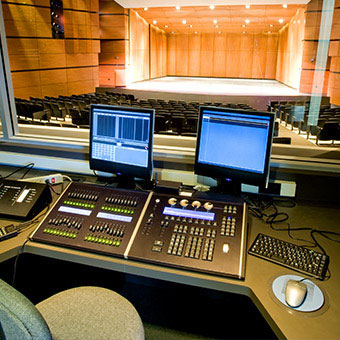

Broadcasting Distribution Monitoring Systems

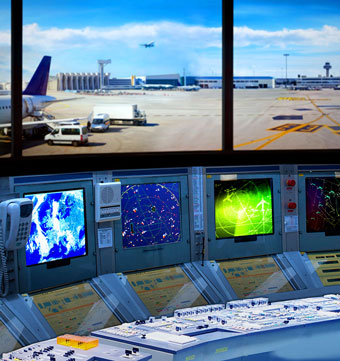

Command Control Centers

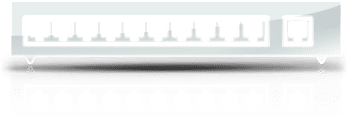

Recommended Network Switches

Network Switch

The following table lists network switches that have passed ATEN's stress tests using the KVM over IP extenders. Our tests streamed content over a network with a resolution of 3840 x 2160 @30Hz (KE9952 / KE9950 / KE8952 / KE8950) and 1920 x 1200 @60Hz (KE6940 / KE6900 series), 24bit color depth at 60 frames per second.

ATEN


ES0152
ES0152P
Cisco


Catalyst 2960X
Catalyst 2960XR
Catalyst 3750
HP


Procurve 2920
H3C


S5120
Huawei


S5700
* Note :
The availability of these network switches might vary in different regions. The information is provided and owned by the respective 3rd party suppliers listed above. ATEN is not responsible for the information provided by these suppliers. If you have any questions regarding the network switches listed above, please contact one of the 3rd party suppliers listed here.
