Raloy RNX119 1U 19" Short Depth LCD Rack Console

RNX119

$988.00$869.00
Save $119.00
Integrated KVM: Console Only (1-Port)
FREE Shipping on orders over $100

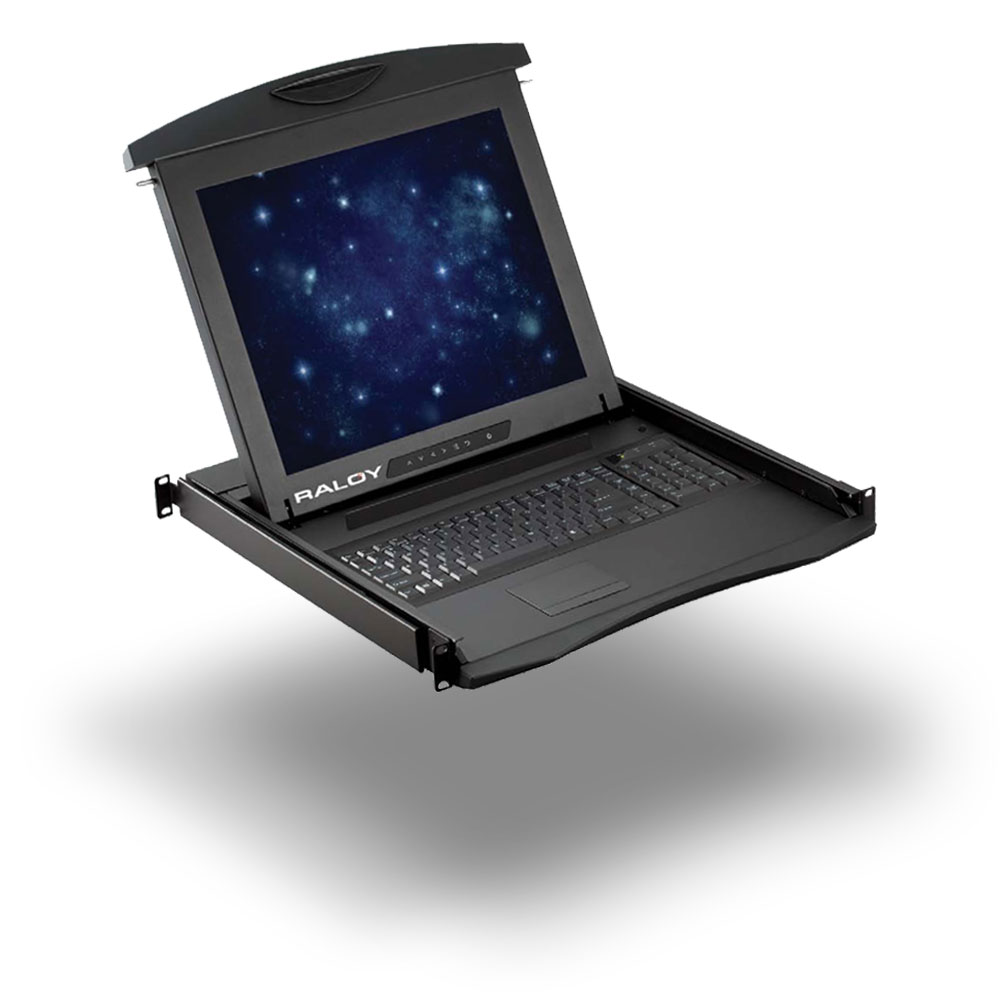

Raloy RNX119 Rack Console Drawer

Raloy RNX119 Certifications

  • Space Saving

    Store full short depth (19.7" deep) user console within 1U.

  • 2-Point Lock

    Fastened securely for dynamic environments.

  • Modular Options

    Support for various keyboard, mouse, video input, audio speaker, power, and KVM options.

  • Certified Quality

    cUL Approved.

RNX119 Features

The Raloy RNX119 rack console features a 19" LCD, full 104 key keyboard and touchpad or trackball mouse, and a 2-point locking assembly that fastens the RNX119 for dynamic environments. The RNX119 offers a space saving, streamlined approach to your rack environment by integrating your monitor, keyboard, mouse and optional KVM in a single unit.

Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the LCD monitor and built-in keyboard and mouse. To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.

  • 19in. TFT LCD - 1280 x 1024 Max. Resolution
  • 1U, short-depth (19.7in.) design rack console drawer
  • Mounting depth from 19.7 to 30.5 in. (500.4 to 774.7 mm.)
    (Note: optional configurations may increase min and max mounting depths)
  • Full 104 key notepad keyboard w/ number pad and integrated touchpad or trackball
  • Combo interface w/ PS/2 or USB input
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more
  • Integrated KVM options can scale as your needs change
  • New easy to maneuver front handle with two point lock system
  • 6-foot combo cable included (RCB-6)
  • 24 Month Limited Warranty - Extended Warranties available for purchase

What's Included?

  • 1 x RNX119 Rack Console
  • 1 x RCB-6 6ft VGA/USB console cable
  • 1 x Power Cord
  • 8 x M6 screw, cage nut & cup washer
  • 24 Month Limited Warranty - Extended Warranties available for purchase
  • *Additional parts may be included based on integration options

RNX119 Modular Options

Video

  • VGA (standard)
  • DVI-D
  • HDMI with Audio
  • BNC + S-Video

Mouse

  • Glidepoint Touchpad (standard)
  • Trackball

Keyboard

  • 104-key notepad US keyboard (standard)
  • Available in 14 international languages

Audio

  • None (standard)
  • 2x 2W Speakers + Audio Input & Output

Power

  • 100 to 240V AC (standard)
  • 12V DC
  • 24V DC
  • 48V DC

For a hassle-free custom configuration, please feel free to Contact Us.

Integrate KVM Switch Into 1RMU

Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.

KVM Type


Single-User 12-Port DVI-D, USB 3.0 KVM w/ Cables

RNX119 with
DVI-D KVM



Raloy RNX119 Cat6 KVM Switch

RNX119 with
High-Density
Cat6 KVM

Raloy RNX119 DB-15 VGA KVM Switch

RNX119 with
VGA
DB-15 KVM

Raloy RNX119 VGA USB Hub KVM Switch

RNX119 with
VGA
DB-15 KVM
with USB Hub
KVM Port ConnectionDVI + USBCat6 KVM PortDB-15 KVM PortDB-15 KVM Port
Ports1232 / 16 / 816 / 816 / 8
KB / MSUSBUSB / PS2USB / PS2USB
VideoDVI-DVGA / DVI /
HDMI / DP
VGAVGA
Local User1111
Network IP Access Users00 to 20 to 20 to 1
Extended Remote Users (500 ft)00 to 30 to 30 to 1
USB Peripheral Port2 x USB 3.0----2 x USB 2.0
AudioAnalog------
Max. Distance (KVM to Server)15 Ft
/ 4.5 M
130 Ft
/ 40 M
15 Ft
/ 4.5 M
15 Ft
/ 4.5 M
Cascade Levels--88--
Integrate Integrate Integrate Integrate

RNX119 Support & Documentation

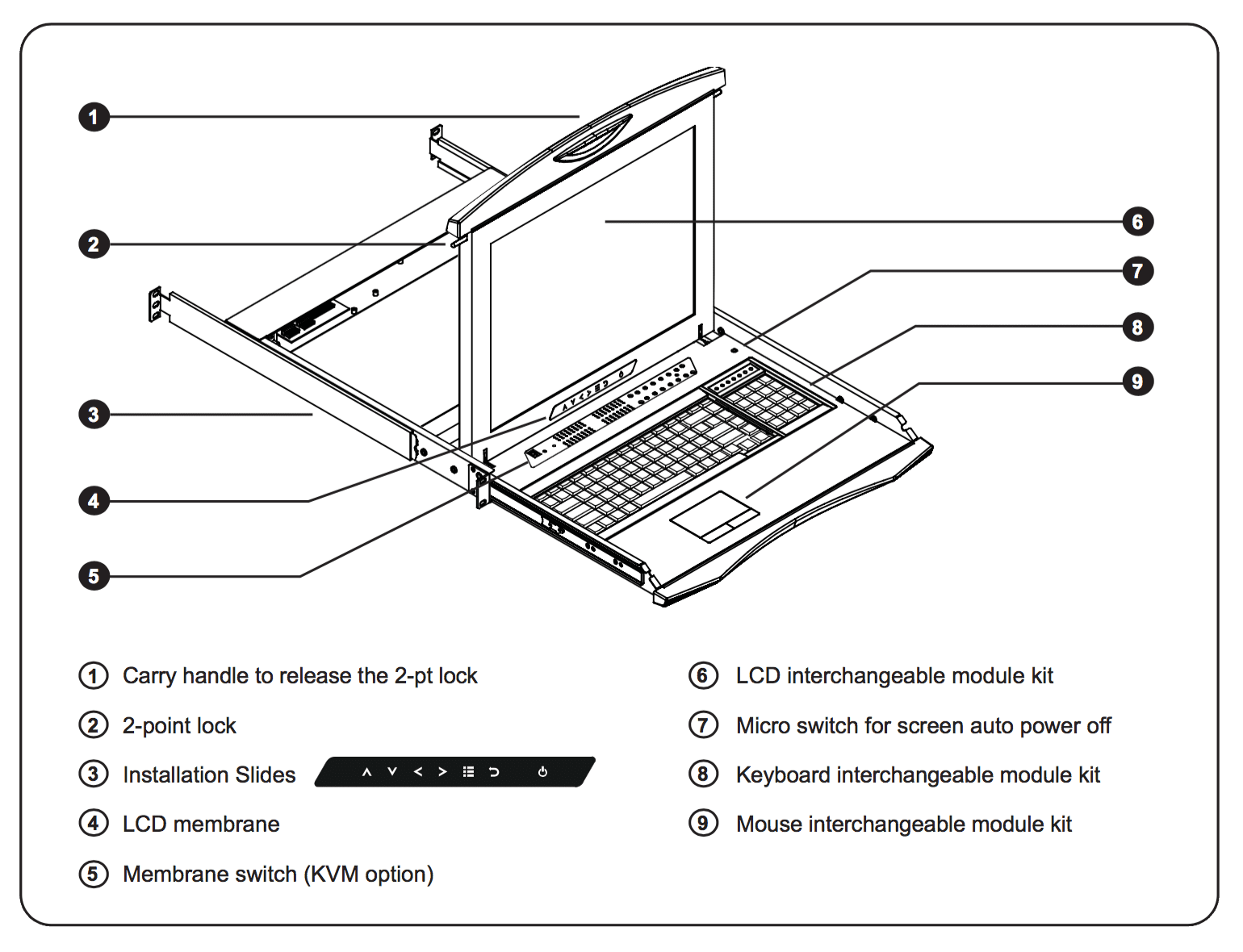

RNX119 Diagram

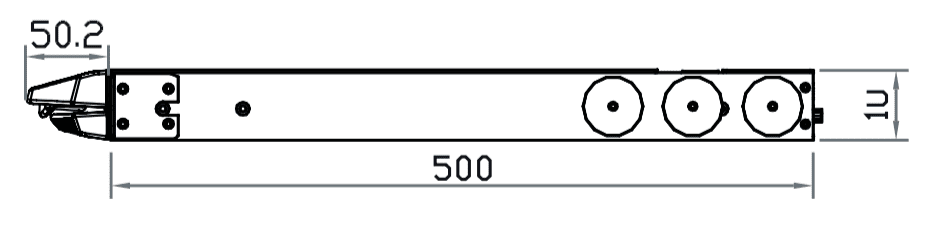

RNX119 Side View

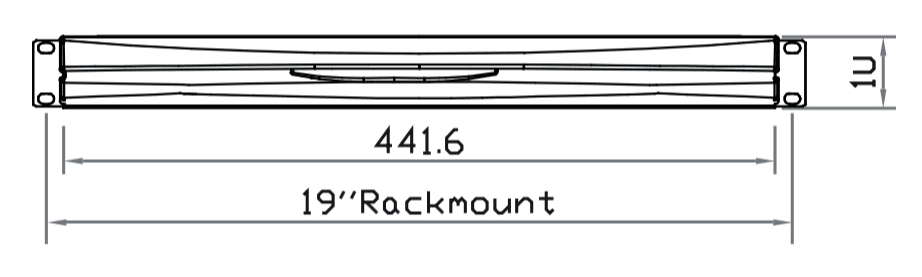

RNX119 Front View

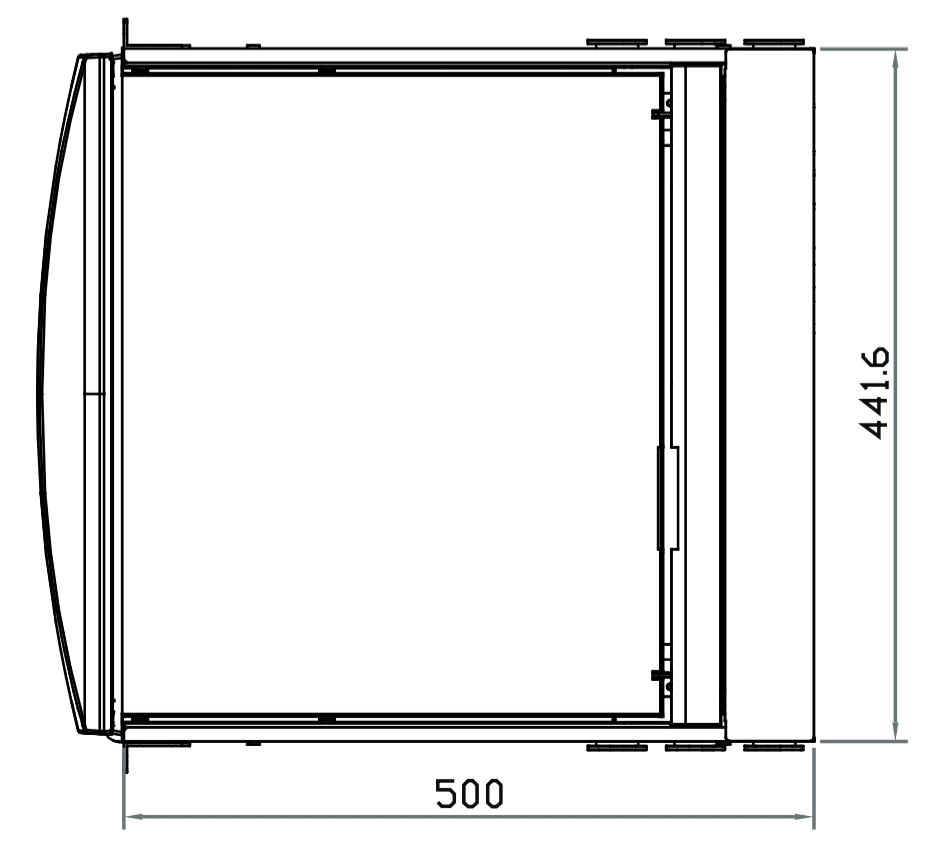

RNX119 Top View

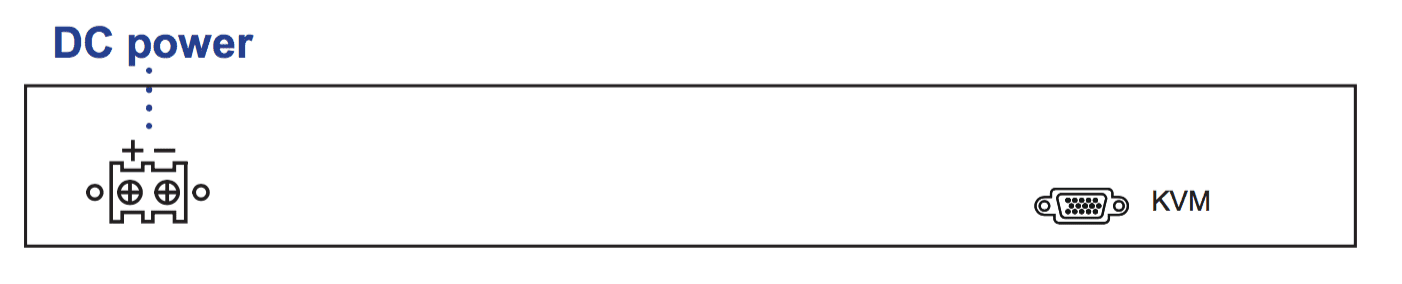

RNX119 Rear DC Power Diagram

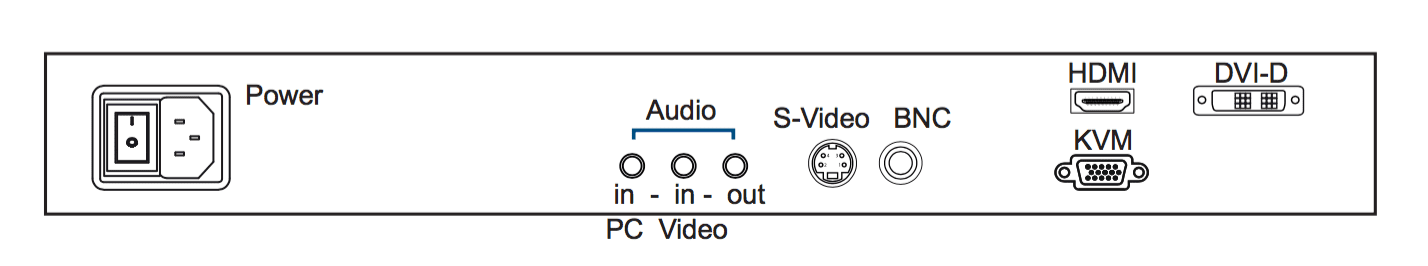

RNX119 Rear Audio & HDMI Diagram

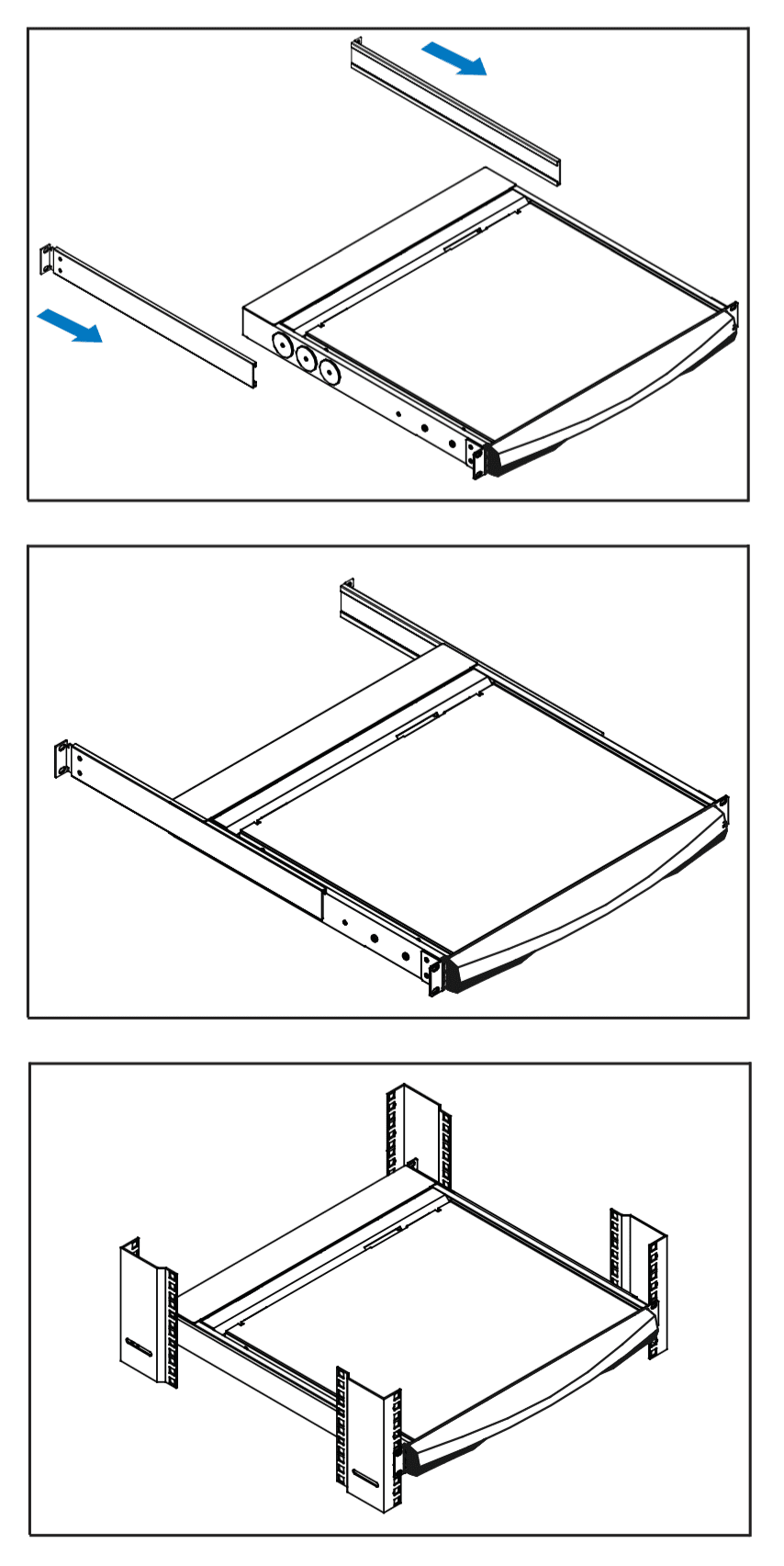

RNX119 Installation Diagram

Raloy RNX119 Specifications

Mechanical*
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth19.7 n. (500 mm.)
Package Dimensions23.2 x 30.2 x 5.5 in.
(590 x 768 x 140mm)
Mounting Depth19.7 in. (min) to 30.5 in. (max)
(501 to 775 mm)
Form Factor1U rack mounting on slide-out rails
Net Weight27.5 lbs. (12.5 kg.)
Gross Weight38 lbs. (17 kg.)
Environmental
Operating Temperature32 to 122°F
(0° to 50°C)
Storage Temperature23 to 140°F
(-5° to 65°C)
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC,
50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size19" TFT
Max. Resolution1280 x 1024
Brightness (cd/m2)250
Color Support16.7 Mil.
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)170° x 160°
Display Area (mm)376 x 301
Response Time (ms)5
VGA Signal InputAnalog RGB, 0.7Vp-p
Sync. TypeSeparate H/V, Composite, SOG
Resolution1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Plug & Play DDCEDID 1.3
Console PortVGA + USB or PS/2, server end
DB15 (VGA, USB KB/MS), console side
CompatibilityMix various PC, SUN, MAC, IBM,
HP & DELL servers
Regulation ApprovalcUL, FCC & CE certified
RoHS2 & REACH compliant

* Dimensions and weights are for rack console only. Any optional configurations and or integrated KVM selections will change the dimensions and weights accordingly.

The RNX119 series is the direct replacement for the Raloy RN119 series of the RN family of Raloy rack consoles.

To order Part Number RNX119-KVM10016B+48VDC, please select trackball for "Keyboard Option", 48VDC for "Power Input" and 16-port VGA KVM for "Optional Integrated KVM" from the selections above.

Question: I am looking for a 19" 1RU or 2RU sliding rack monitor console that locks when closed. It is for a communications vehicle so we need it to be secure when closed.
Answer: Thank you for your inquiry,

The Raloy RNX119 features a '2-Point Lock' on each side of the unit - This manually switchable 2-point lock secures the RNX119 in the closed position when the display is closed. With a shock resistance of 10G acceleration (11ms duration) and 5~500Hz 1G RMS random vibration, the RNX119 is designed for dynamic environments like a communications vehicle.

Question: How long will the RNX119 be available?
Answer: Thank you for your inquiry,

Raloy console drawers usually have a 5-7 year technology refresh or advancement cycle. You can also extend your warranty support up to 5 years. Let us know if we can provide a quote for you.

Question: Does the RNX119+48 KVM switch have a power switch? if so, what documentation shows this?
Answer: Thank you for your inquiry,

If the model comes with DC power input (RNX119+48), there is no power switch on the unit.

The RNX119 with standard AC power includes a power button under the LCD panel on next to the On-Screen-Display control buttons. For an illustration of this, please refer to page 7 of the Raloy RNX119 Manual.

Please let us know if there is anything else we can help you with!

Question: What is the HTS code and ECCN number for the Raloy RNX119?
Answer: Thank you for your inquiry,

See below for Export Classification information for the RNX119:

ECCN: 8528.51.0000
HTS: 4A994

Please let us know if there is anything else we can help you with!
