Dataprobe iBoot G2S Remote Reboot Power with 2 Port Network Switch

iBoot-G2S

$229.00$221.69
Save $7.31
Version: iBoot G2S (with 2-Port 10/100 Network Switch)
FREE Shipping on orders over $100

The Dataprobe iBoot-G2S is a network attached, IP addressed, Web Controlled power switch. Anyone with a web browser can access iBoot-G2S to perform power On, Off or Reboot (timed power shutdown). The iBoot-G2S is the offers the same functionality as the iBoot-G2+ except with the addition of a integrated 2-Port 10/100 Network Switch.

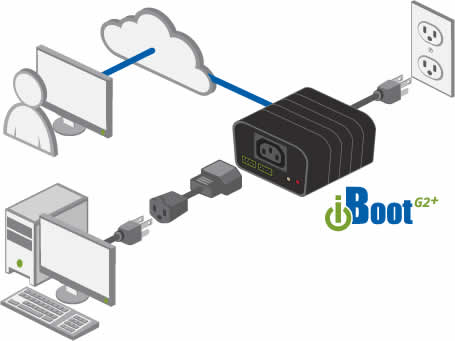

Dataprobe iBoot-G2S ApplicationiBoot G2S Integrated 2-Port Network Switch

  • Web Controlled Power Switch
  • Integrated 2-Port 10/100 Network Switch
  • AutoPing and HeartBeat - Auto Reboot
  • Cloud Service - Manage from Anywhere
  • UL Listed for Safety and Reliability

iBoot-G2S Operation

When you need to reduce costly site visits, ensure business continuity and increase network reliability, iBoot series gives you peace of mind. iBoot-G2S, a web-accessible managed single-device Remote Reboot PDU enables multiple users to reboot remotely from anywhere, using any web browser, Telnet client or SNMP manager.

From servers and webcams to IP PBXes and surveillance systems, iBoot-G2S keeps your network up and running.

Simple web browser interface

The web browser interface provides the easiest means of managing multiple outlets. One master unit can be connected to 15 expansion units, managing 128 outlets from a single web page interface.

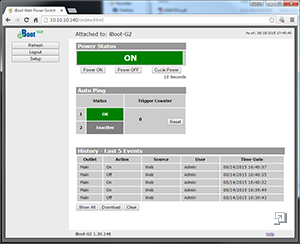

The web page presents a clear status indication of each outlet, current draw across all inputs and the AutoPing monitoring, if implemented.

Each outlet can be individually selected, or multiple outlets can be simultaneously operated. User selectable cycle timer allows single command reboot. Delay timer limits inrush current by staggering power up when multiple devices are simultaneously controlled.

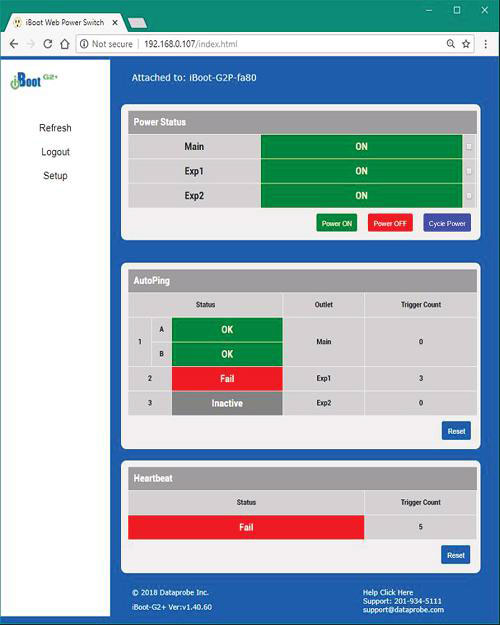

iBoot G2 Control Browser Window

iBoot Cloud Service - Power Control Wherever you Are

iBoot Cloud Service (iBCS) allows customers with iBoot-G2S to access and control multiple iBoots in multiple locations from a single portal with a single sign-on.

iBCS will not only make using iBoots easier, by consolidating all units into one sign-on and interface, it will also enhance the number of situations where iBoot can be deployed.

  • Customers with Dynamic IP addressing to always be able to access their iBoot from any location.
  • Service providers manage multiple customer accounts with diverse security configurations.
  • Customers that are not allow in-bound connections to access their iBoots.
Learn More

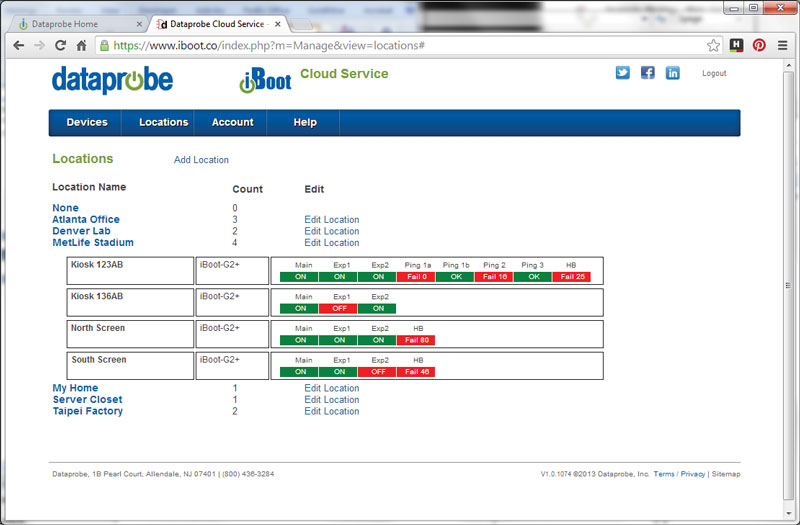

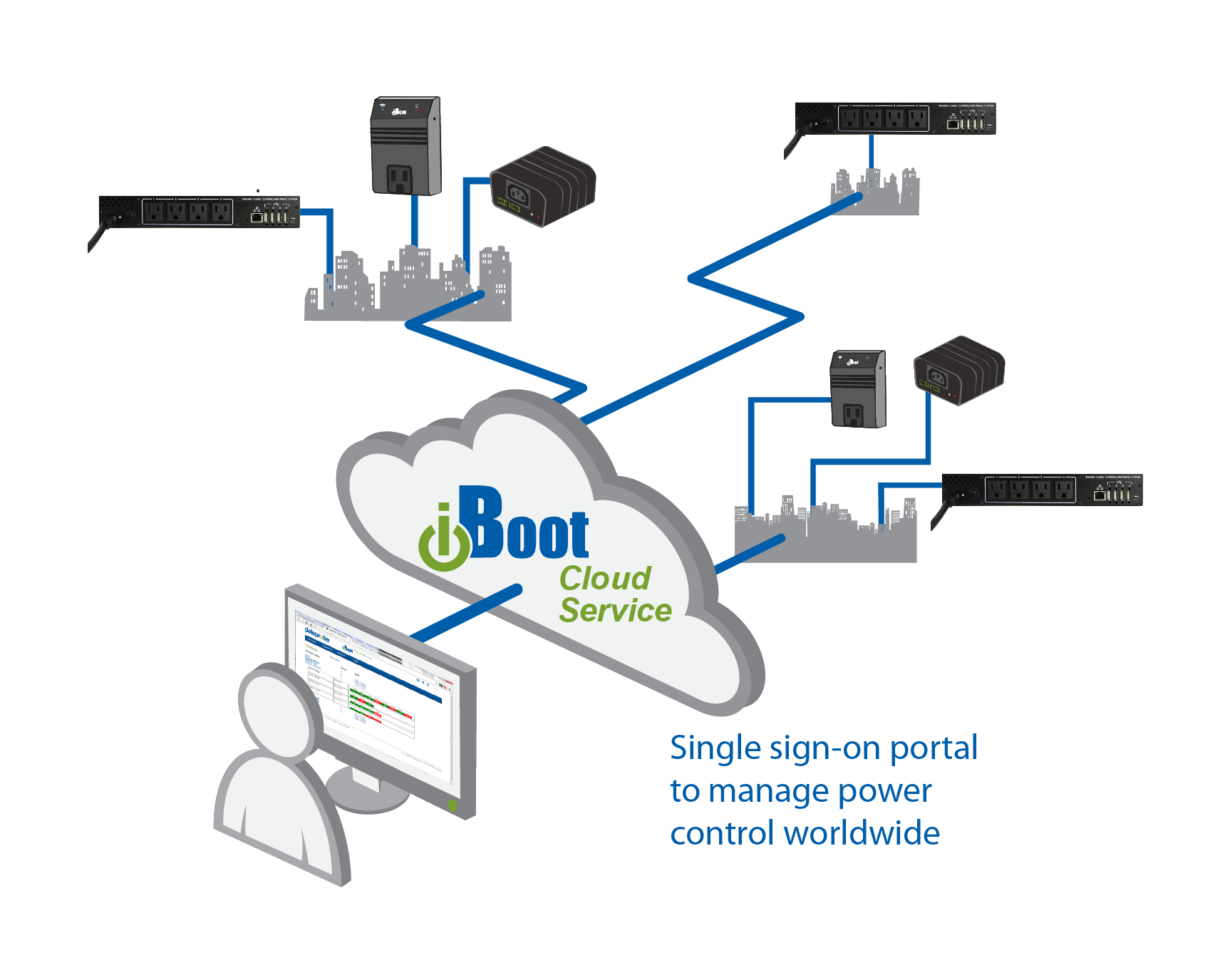

iBoot G2 Cloud Service DiagramiBoot-G2S Cloud Service  User Interface Control Window

Sophisticated Automation

Monitor critical parameters and take corrective action immediately. Build complex notification and reporting for environmental, power and network faults. Set trigger points and create sequences of responses to keep your network up and running.

iBoot-PDU Reboot Sequence Scheduling

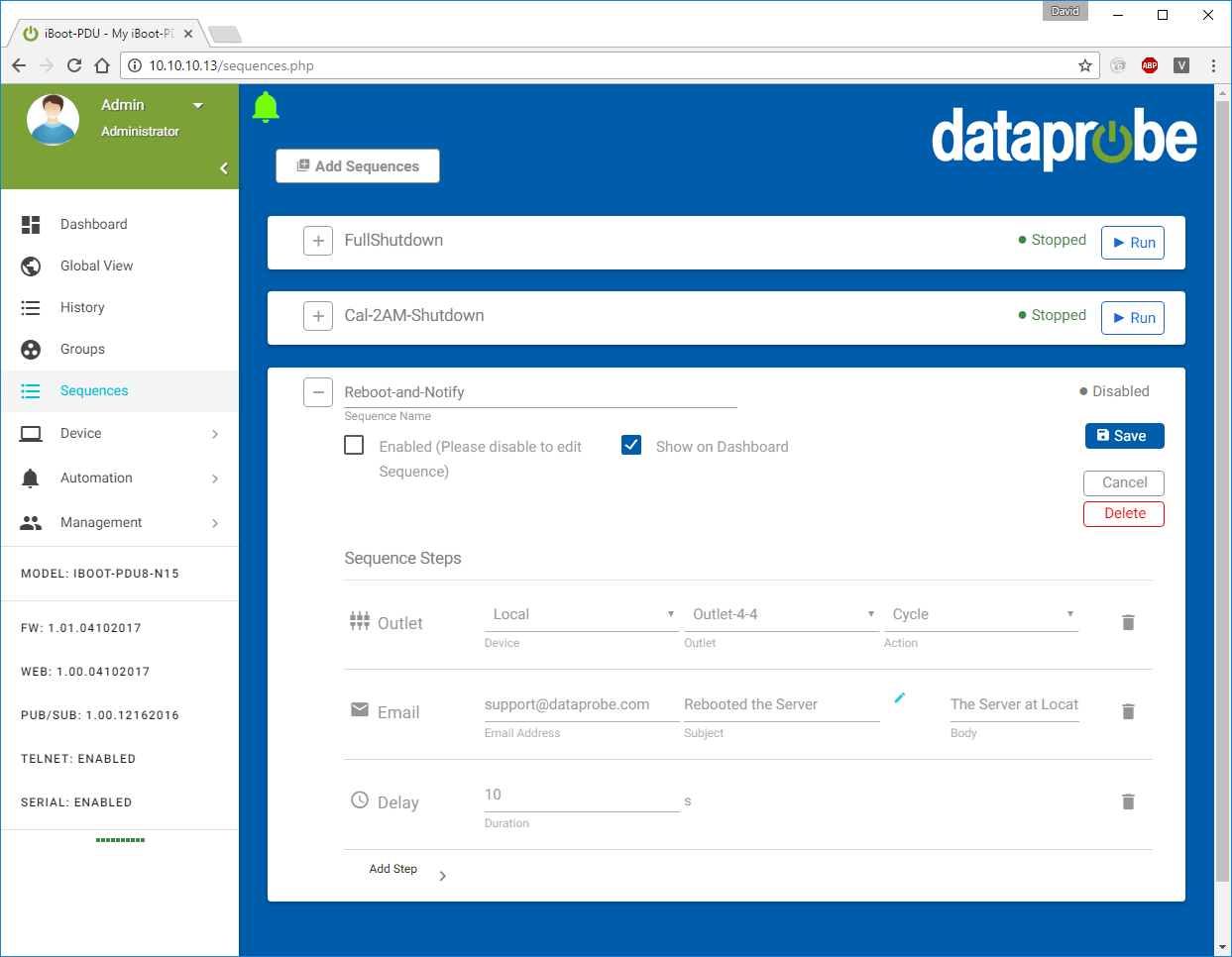

iBoot-PDU Sequence Setup

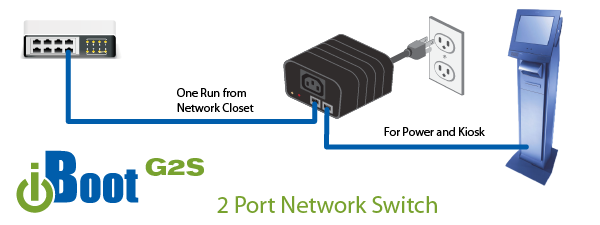

iBoot-G2S Built-in 10/100 Switch
Simplify Wiring and Installation Costs

et the reboot you need without an unnecessary cable run to the wiring closet. With Model iBoot-G2S, the built-in 10/100 switch makes it easy to add the power of iBoot to your existing installation. Perfect for digial signage, kiosks and telemetry systems in those hard to reach areas. Putting the iBoot in-line between the router and the server makes it easy to test both and reboot automatically.

iBoot G2S Integrated 2-Port Network Switch

Manage Multiple Locations / Outlets

One iBoot-G2S can be linked to up to 2 expansion units to create a 3-outlet PDU, and manage multiple additional iBoot units over the cloud, creating easy to manage PDU clusters. These units can be in the same rack, or across the world, making it easy to view, and operate all your outlets from a single web page.

Outlets can be grouped together to be managed simultaneously. Groups are ideal for managing devices with redundant power supplies, or rebooting all email servers at 2AM every night.

Expansion I/O Ports

The iBoot-G2S provides the same functionality as the iBoot-G2 with the addition of 2 Expansion-I/O ports that can be used in a variety of ways:

  • Expansion to independent control of three outlets
  • General Purpose I/O independently monitored and controlled
  • Heartbeat Monitor
  • USB Port for direct PC communication for Serial Command Line Interface Access
  • Manual Switch triggers for the Mains Outlet
  • Graceful Shutdown
  • SNMP Management

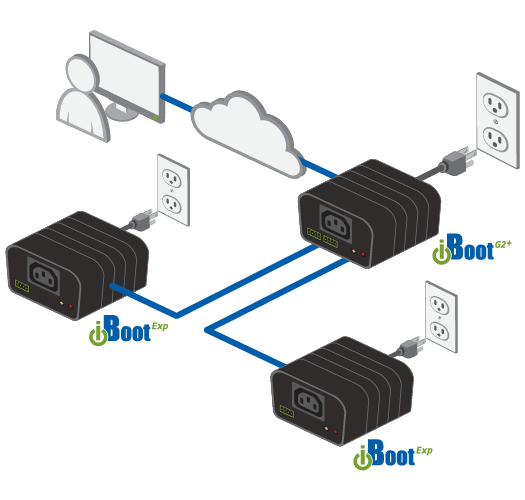

iBoot-G2S Expansion to three outlets

iBoot-G2S is expandable with low cost satellite units to provide independent control of up to three outlets, with separate AutoPing monitoring as needed. If not used with the expansion units, the ports on the iBoot-G2S can be used as General Purpose I/O or as manual override control for the power outlets.

Order 1 or 2 iBoot-EXP Expansion Units

iBoot-G2S Expansion

iBoot-G2S Features

  • Web Browser Power Control: Clean Web page design for immediate status and power control. Auto detects mobile browsers. No special software required.
  • Built-In 2 Port 10/100 Network Switch: Eliminate extra cable runs and make installation a snap. Add iBoot-G2S to an existing Kiosk or Sign Install without having to add an additional switch and power supply.

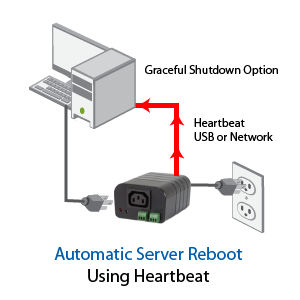

  • Automatic System Restoral: AutoPing and Heartbeat detect network or equipment outage and takes immediate action to restore your network or device. Real time scheduling to have a fresh reboot each morning or minimize power waste at night.
  • Cloud Control: Manage all your iBoots from a single sign-on. Control power worldwide from any web browser, anytime anywhere.
  • Graceful Shutdown: Attempts to do a Graceful Shutdown or Restart on Windows platforms prior to hard power switch.
  • Expandable: Add one or two iBoot-EXP expansion units with independent control, and AutoPing. When not used for expansion units, the inputs and outputs can be used for general purpose I/O or as manual power control
  • USB Port: Out-of-band management with simple serial commands for status, control and setup.
  • UL Listed: We take your safety seriously. Be confident to pass fire marshal inspections.
  • Dual Password Protected: Separate user and administrator passwords. Deploy iBoot-G2S's throughout your organization.
  • IP Addressed, 10/100 Base-T: Use on any Ethernet IP network. Public or private. Supports DHCP and alternate ports for Web Access.
  • Direct TCP and Software Control: Control iBoot-G2S directly from your software application for the highest degree of power control integration. Simple protocol is freely available. Use iBoot-G2S control program to call power control from any network management system. IPSentry What'sUp Gold, etc.
  • 110/220 VAC Operation: Auto ranging power input. Deploy iBoot-G2S anywhere in the world. iBoot-G2S uses IEC320 Connectors and includes line and extension cords for North America.
  • 12 Amp Switching: Current for most Servers, Routers, Kiosks, etc. 10 Amps at 220 VAC.

Pays for Itself with the First Service Call Saved

Don't let the cost of downtime keep you from meeting your service and revenue expectations. Keep your critical systems running without expensive service calls. Use low-cost remote power control to automatically reboot failed devices and get up and running in the most cost effective way possible.

iBoot-G2S will save you time and money by reducing costly downtime. Just point your browser to the iBoot-G2S, login and you are one click away from bringing that failed system back to life. iBoot-G2S will even detect failed systems and take immediate action.

iBoot - Minimizing Cost of Downtime
eBook & Downtime Calculator

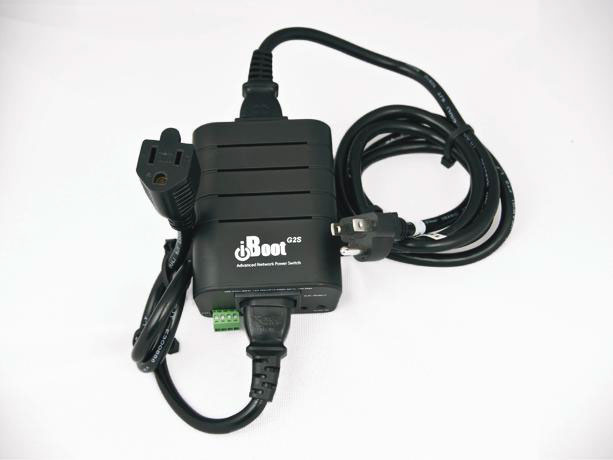

iBoot-G2S Package Contents

Dataprobe iBoot-G2S Package Contents
  • (1) iBoot-G2S
  • (1) 6ft US (NEMA 5-15P) Power Input Cable
  • (1) 6ft US (NEMA 5-15P) Power Output Cable
  • (1) 6ft Cat5 Network Cable
  • (1) 6ft USB Cable
  • (1) Quick-Start Guide
  • (1) 3-Year Warranty

Dataprobe iBoot-G2S Specifications

Power105 - 240 VAC Auto Ranging
Power Switching12 Amps at 105-125 VAC,
10 Amps at  210-240 VAC
Power ConnectorsPower Inlet: IEC 320 C13 Plug.
Line cord for North America Included.
16AWGX3C x 6'/2m
Power Out: IEC 320 C14 Receptacle.
Extension Cord for N. America Included.
16AWGX3C x 2'/60cm
NetworkDual 10/100base-T, Auto sensing Uplink/Downlink
Cat 5 Cable Included 6'/2m longUSB Mini-B Com Port 9600 8 N 1
ProtocolsIP Addressable. DHCP or Static
HTTP Web Server built-in, Port Assignable
Telnet Server built-in, Port Assignable
DxP Messaging Protocol, Port Assignable
Auto-Ping TCP Protocol
Heartbeat Detector Protocol
External I/O

Two Inputs, Two Outputs, Screw Terminal Connections:

Designator

Name

Description

V+

Power Out

This is +12 VDC power out from the iBoot-G2S
Maximum current 100 mA

I

Input

Input for status signals. Dry Contact input or Open Collector.

G

Ground

Signal Ground for Input and Output

O

Output

2N3904 NPN Transistor. 100 mA Maximum

BrowserForm Processing Browser Required
Mozilla 3.0 or IE 3.0 or greater
SecurityDual Password Protected, User and Admin
PhysicalH x W x D: 2.0" x 3.2" x 4.2" (60mm x 82mm x 107mm)
Operating Temperature 0 to 50 Deg. C
ReliabilityMTBF 320,000 Hours
Operating Cycles 10,000,000 Mechanical. 100,000 at Maximum Load
Compliance

RoHS/WEEE
FCC Part 15 Class B

AC Versions
UL/cUL UL60950
Listed I.T.E File No. E225914
CE Directives 89/336/EEC, 92/31/EEC and 93/68/EEC

UPC / EAN Barcode icon
UPC 700220864139
EAN 0700220864139
Question: What equipment do I need to operate in the iBoot-G2S Expansion to three outlets configuration?
Answer: Thank you for your inquiry,

The iBoot-G2S can be used to control three outlets by linking (2) iBoot-Exp expansion units to the two Expansion Ports, 'Exp1' and 'Exp2', on the iBoot-G2S.

What you Need
(1) iBoot-G2S - this unit
(2) iBoot-EXP
(2) Screw terminal cables - included for free with iBoot-EXP units

Connecting to iBoot-Exp
iBoot-Exp expansion units are shipped with a cable for easy connection to the iBoot-G2S. Maximum cable
length is 1000 ft (305 m) using 22 AWG wire.

Connections to the iBoot-Exp are made using screw terminal blocks. The screw terminal blocks are on
removable connectors for easy cable fabrication.

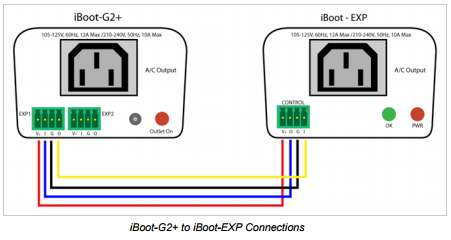

iBoot-G2S + iBoot-EXP Expansion Connections

NOTE, Make sure screw terminals are tightened securely and that there are no loose strands of cable, or excessive
stripped wires.

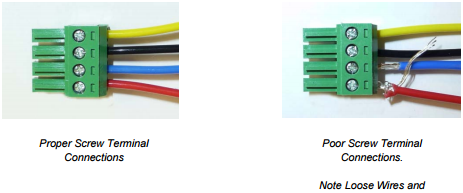

iBoot-G2S Expansion - Proper & improper screw terminal connections diagram

For further information on setting up the iBoot-G2S, please refer to the DataProbe iBoot-G2S Manual (PDF).
