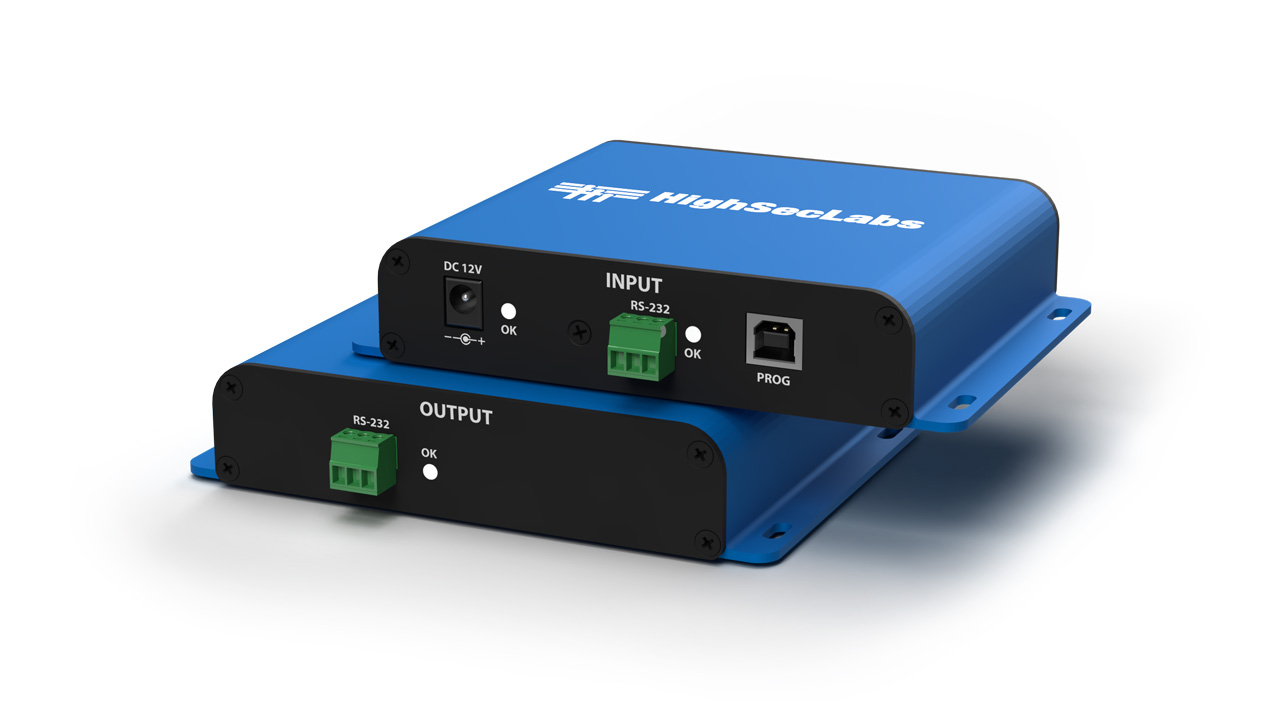

Secure Unidirectional RS232 Isolator Diode
FT11N-4
Save $307.67

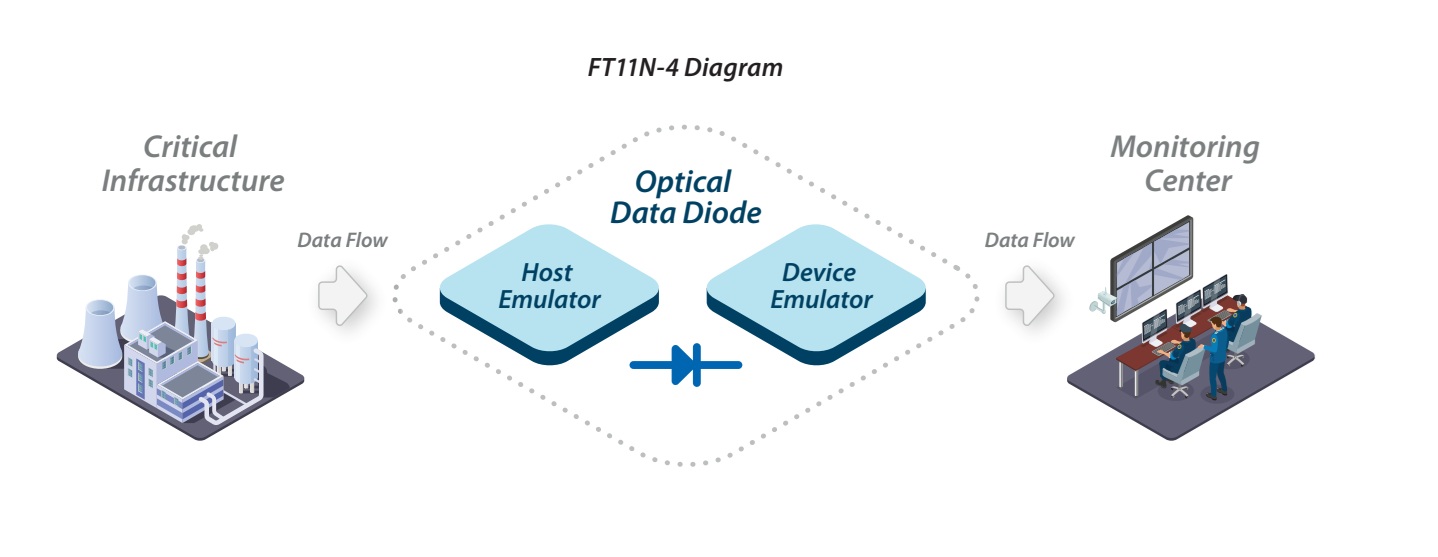

The FT11N-4 RS-232 Isolator Diode enforces a unidirectional flow of data. This is an excellent method of protecting critical equipment that is being monitored by another device. The Secure RS-232 Isolator receives an RS-232 command from any connected device and sends it unidirectionally forward to its destination device, ensuring no return signal from the destination to the originating device.
The FT11N-4 is especially suited to protect against data leakage in any scenario where command and monitoring information is sent between two otherwise separated networks. SCADA, System synchronization, control commands, and information sharing can all be done securely via the FT11N-4 Secure RS-232 Isolator.
Features of the FT11N-4 Secure RS-232 Isolator
- Unidirectional by design HW based enforcement of unidirectional data flow by using optical data diode
- Flexible configuration Serial communication parameters such as baud rate, parity, etc. are user-configured to fit any architecture
- Transparent The RS-232 Isolator is transparent to the other RS-232 devices in the setup, making it compatible for use in any architecture
FT11N-4 Resources
Secure RS-232 Isolator Datasheet (PDF)
RS-232 Isolator Manual (PDF)
High Sec Labs FT11N-4 Specifications
| Mechanical | |
| Dimensions | 145 x 105 x 28mm 5.8 x 4.2 x 1.1in |
| Weight | 0.3kg / .64lb |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 20% to 80% non-condensing; |
| Performances | |
| Bandwidth | 230,400 Kb/s |
| Filtration Method | None |
| Data Limitations | N/A |
| Software | |
| Supported OS | Windows, Linux, Mac |
| Power | |
| Power Requirements | DC input 12V/1.5A Maximum |
| AC Input | Wall-mounted power supply included. Power input 90 to 240V AC |
| General Info | |
| Made In | USA (TAA, BAA compliant) |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
The FT11N-4 RS-232 Isolator Diode is also known as the CPN21849.
